5-20W LED Emergency driver for LED tube
5-20W LED Emergency driver for LED tube - Image 2

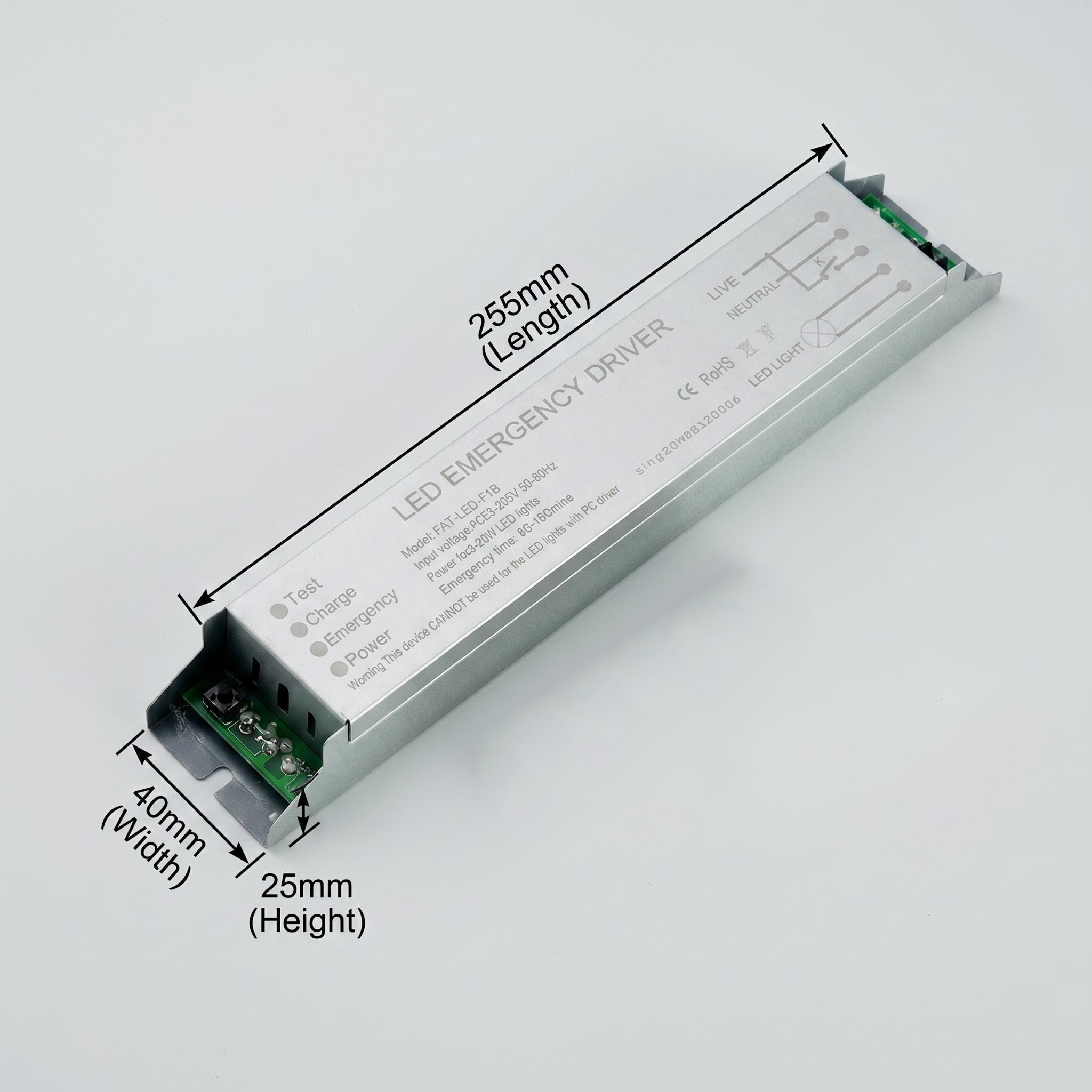

Emergency driver dimension
5-20W LED Emergency driver for LED tube

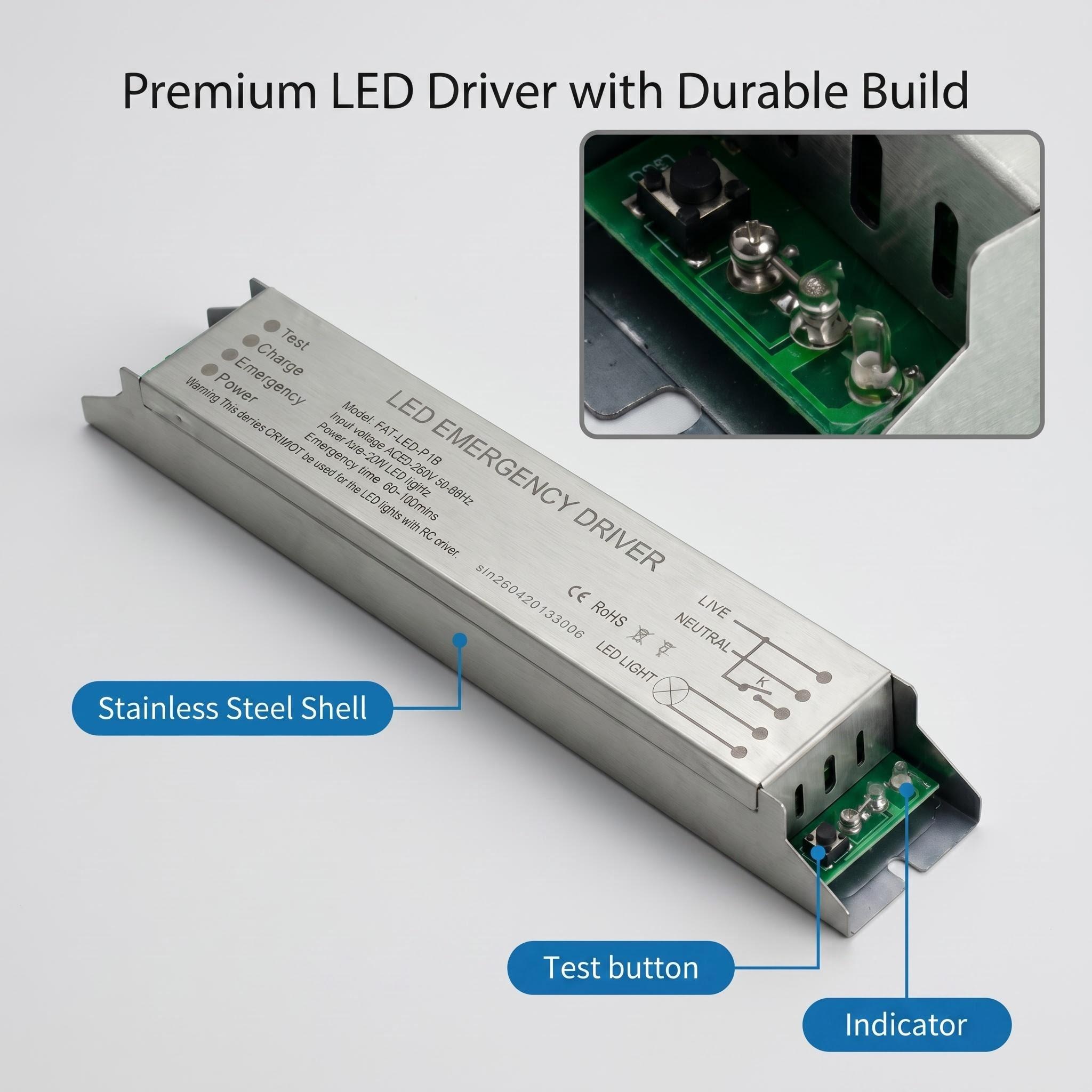

5-20W Emergency kit for led tube

5-20W LED Emergency driver for LED tube

FAT-LED-F1B 5-20W LED Emergency Conversion Kit for LED Tubes

It is a high-performance emergency lighting solution specifically designed for T5 and T8 LED tubes. Its standout feature is the 100% full power emergency output, which ensures that your LED tubes maintain their original brightness during power outages with no lumen reduction. Constructed with a durable and sleek stainless steel housing, its slim profile (only 25mm thick) allows for seamless integration into tube brackets or fixtures. Equipped with a reliable 11.1V 2600mAh Li-ion battery, it provides 60 to 180 minutes of consistent backup illumination. Certified by CE and RoHS, this driver is the ideal safety choice for industrial and commercial lighting environments worldwide

  • Emergency Power:5-20W
  • Emergency Duration:60-180mins
  • Warranty: 3Years
  • Battery Pack:Li-ion 11.1V 2600mAH
  • Application:LED Tube T8/T5
  • Certification:CE / RoHS
Category
Get a Quote Now

GET INSTANT QUOTE


    FEATURES

    Product Details

    Description

    Reliable Safety Solution for LED Tube Lighting

    This LED emergency driver converts your standard LED tube into an emergency lighting solution during power outages. It automatically switches to battery power when the grid fails, ensuring reliable illumination with no compromise on brightness.

    Features

    • 100% Full Power Emergency Output– Maintains full original brightness during blackouts, no lumen reduction, providing dependable light for emergency situations.



    • High-Capacity Li-Ion Battery– Built-in 11.1V 2600mAh 18650 battery pack, delivering 60–180 minutes of emergency lighting to suit various application needs



    • Wide Voltage Global Compatibility– Input 85-265V, output DC230V, supports 5-20W LED tubes and works with worldwide power grids.



    • Compact & Slim Design – Dimensions only 255×40×25mm, easily fits inside tube brackets or light fixtures for quick, space-saving installation

    Specification

    Model FAT-LED-F1B
    Input power 5W to 20W(max 40W)
    Rated voltage AC85-265V
    Changing time of Emergency >2S
    Output voltage DC230V
    Output power while emergency 5-20W
    Charging power 5W
    Emergency time 60-180mins
    Battery Backup 11.1V (lithium battery) 2600mAH
    Charging Current 300mA
    Power Factor >0.9
    Emergency output Main Output 100%
    Type of lamp LED Lamp,LED Tube
    IP Grade IP30
    Emergency Type Maintained / Non-Maintained
    Stanard EN60598-2-22

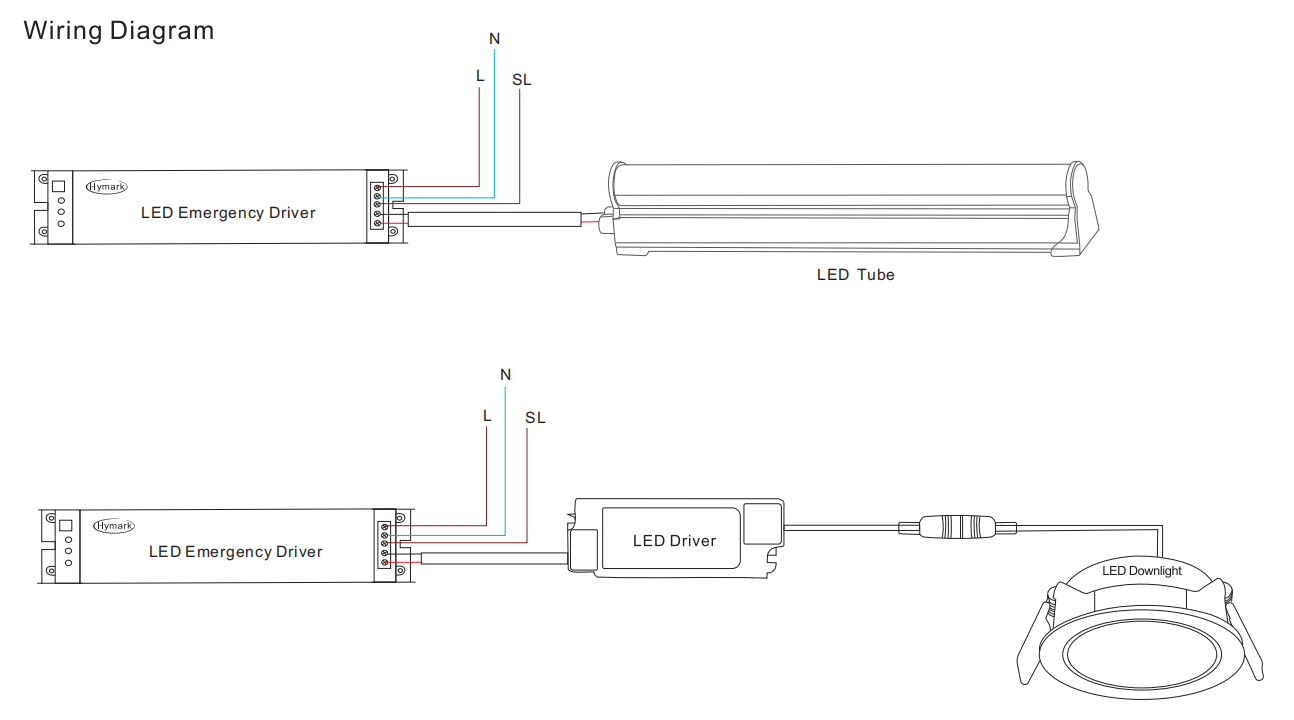

    wiring diagram for LED Emergency driver

    FAT-LED-F1B wiring diagram
    FAT-LED-F1B wiring diagram

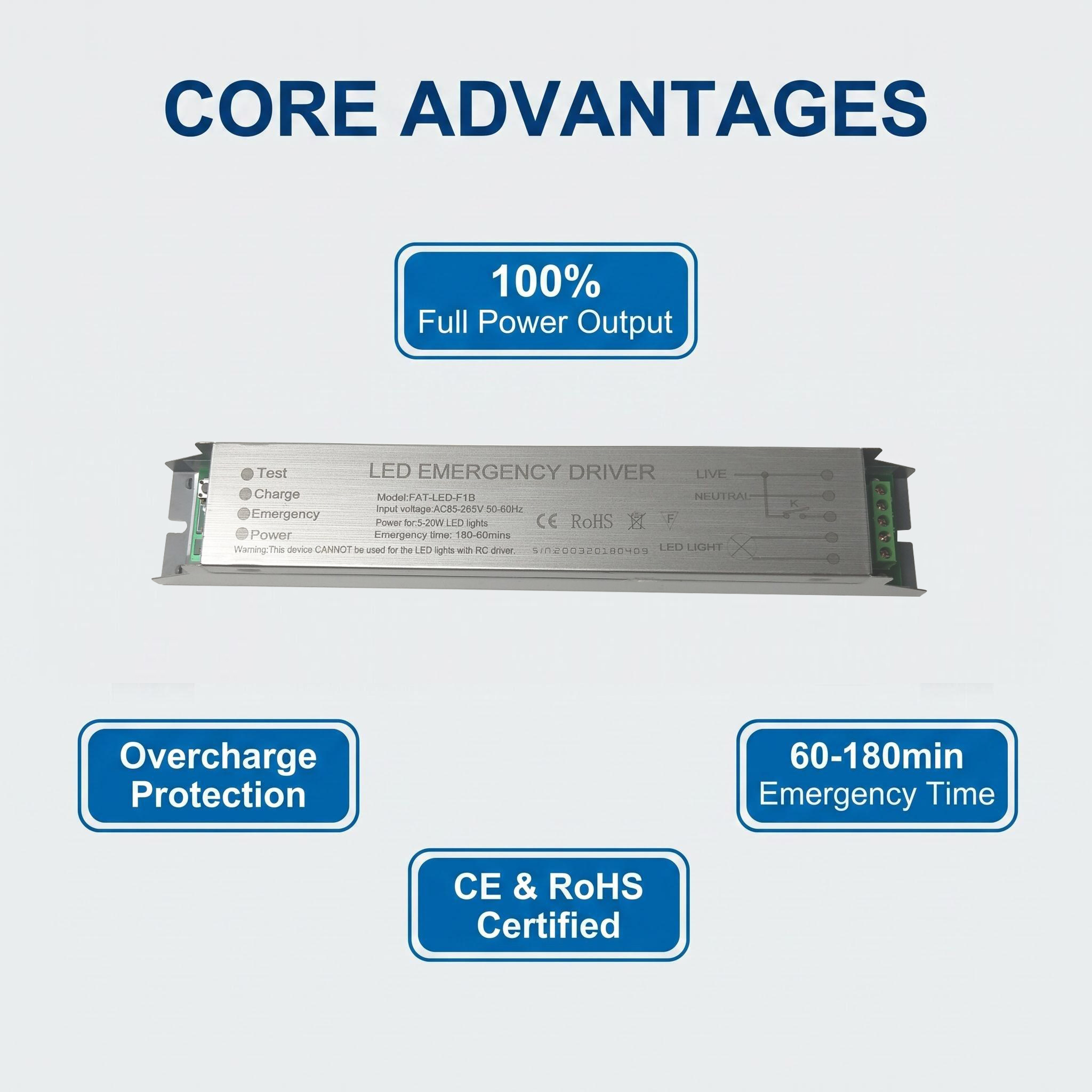

    Core advantage of Emergency driver
    Core advantage of Emergency driver



    wiring diagram of emergency driver with LED tube
    wiring diagram of emergency driver with LED tube



    emergency power supplyEmergency effect in case of power failure
    emergency power supplyEmergency effect in case of power failure

    Specification

    Model FAT-LED-F1B
    Input power 5W to 20W(max 40W)
    Rated voltage AC85-265V
    Changing time of Emergency >2S
    Output voltage DC230V
    Output power while emergency 5-20W
    Charging power 5W
    Emergency time 60-180mins
    Battery Backup 11.1V (lithium battery) 2600mAH
    Charging Current 300mA
    Power Factor >0.9
    Emergency output Main Output 100%
    Type of lamp LED Lamp,LED Tube
    IP Grade IP30
    Emergency Type Maintained / Non-Maintained
    Stanard EN60598-2-22

    Faqs

    FAT-LED-F1B LED Emergency Driver FAQ

    1.Q: Which types of LED lights are compatible with this driver?

    A: The FAT-LED-F1B is specifically designed for T5 and T8 LED tubes. It is ideal for converting standard tube fixtures into emergency lighting systems.

    2.Q: What is the maximum load power it can handle?

    A: This model supports LED tubes with a power range of 5W to 20W, and can handle a maximum input power of up to 40W.

    3.Q: Will the brightness of the LED tube decrease during a power outage?

    A: No. This driver provides 100% full power emergency output, meaning it maintains the full original brightness of the tube during blackouts with no lumen reduction

    4.Q: Is the driver difficult to install in tight spaces?

    A: Not at all. It features a compact and slim design (255×40×25mm), allowing it to easily fit inside tube brackets or light fixtures.

    5.Q: Is the battery protected from damage?

    A: Yes, the circuitry includes overcharge protection to ensure the safety and long lifespan of the lithium battery.
