Description

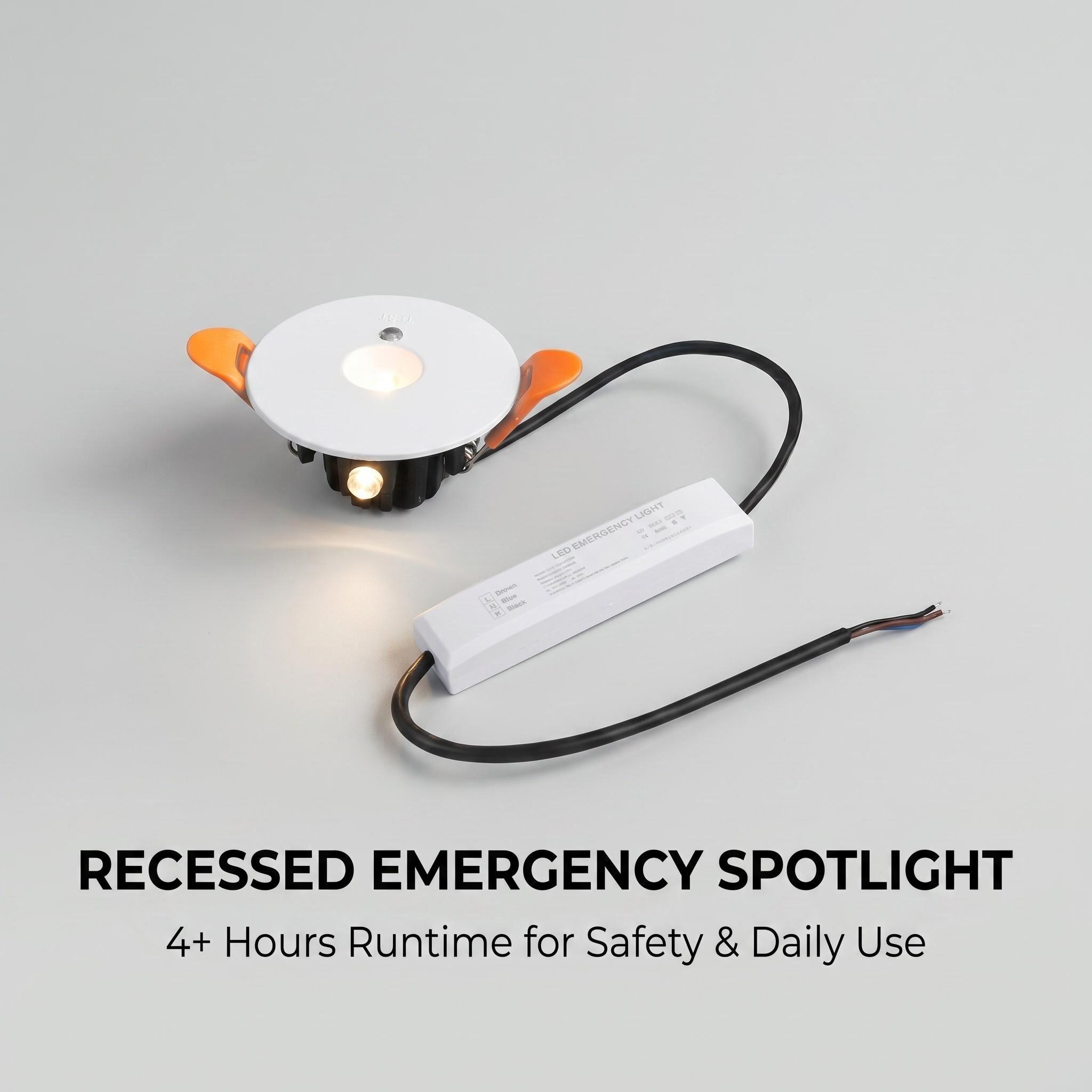

HM-SPT3W-Q: 2-in-1 Architectural Lighting & Emergency Spotlight
The HM-SPT3W-Q redefines emergency lighting by merging daily illumination with high-standard safety backup. Unlike standard emergency-only lights, this model functions as a standard 4.5W spotlight while providing a powerful 3W/420lm emergency beam during power outages. Equipped with an Intelligent Self-Check system and clear LED status indicators, it ensures your building is always compliant and safely lit.
Features:

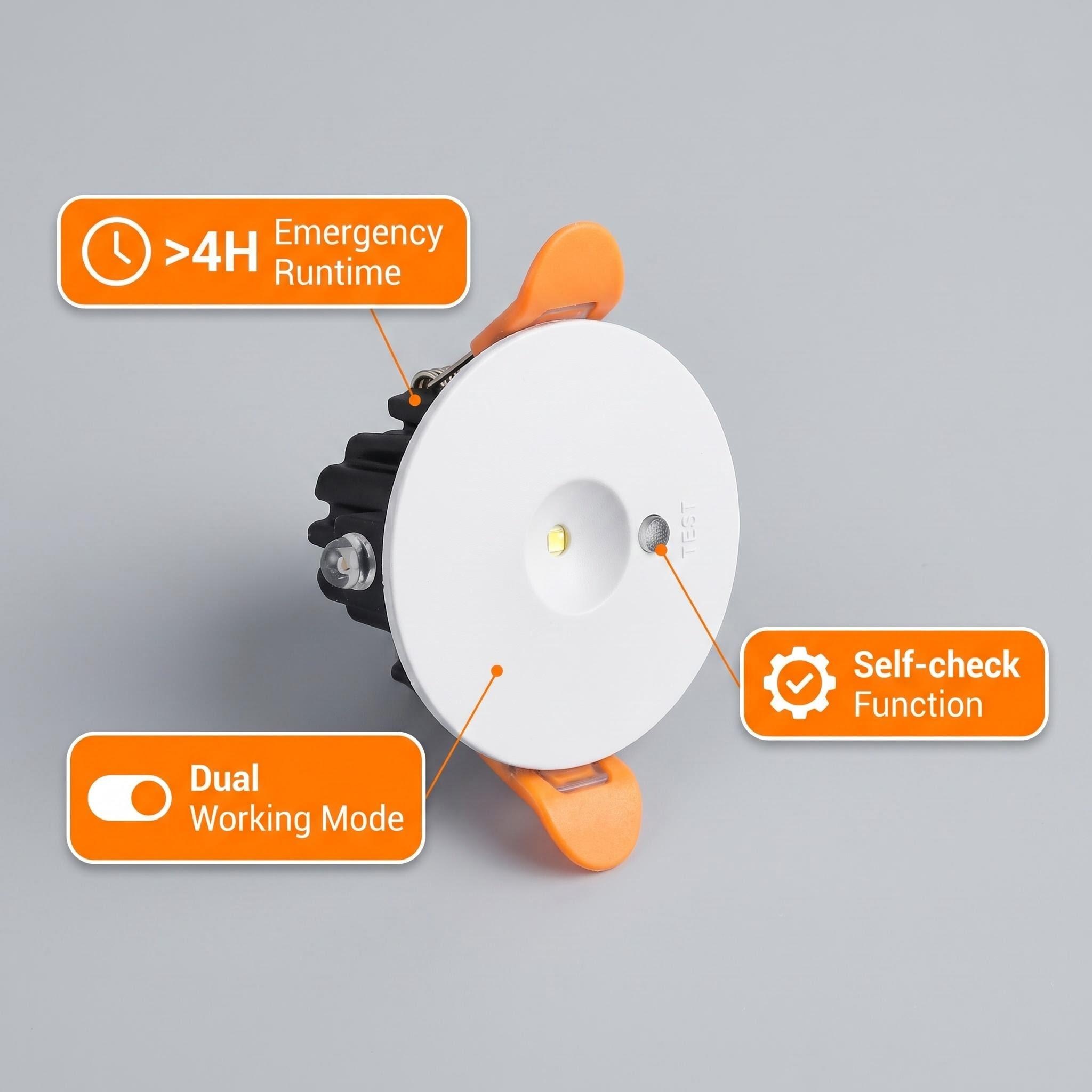

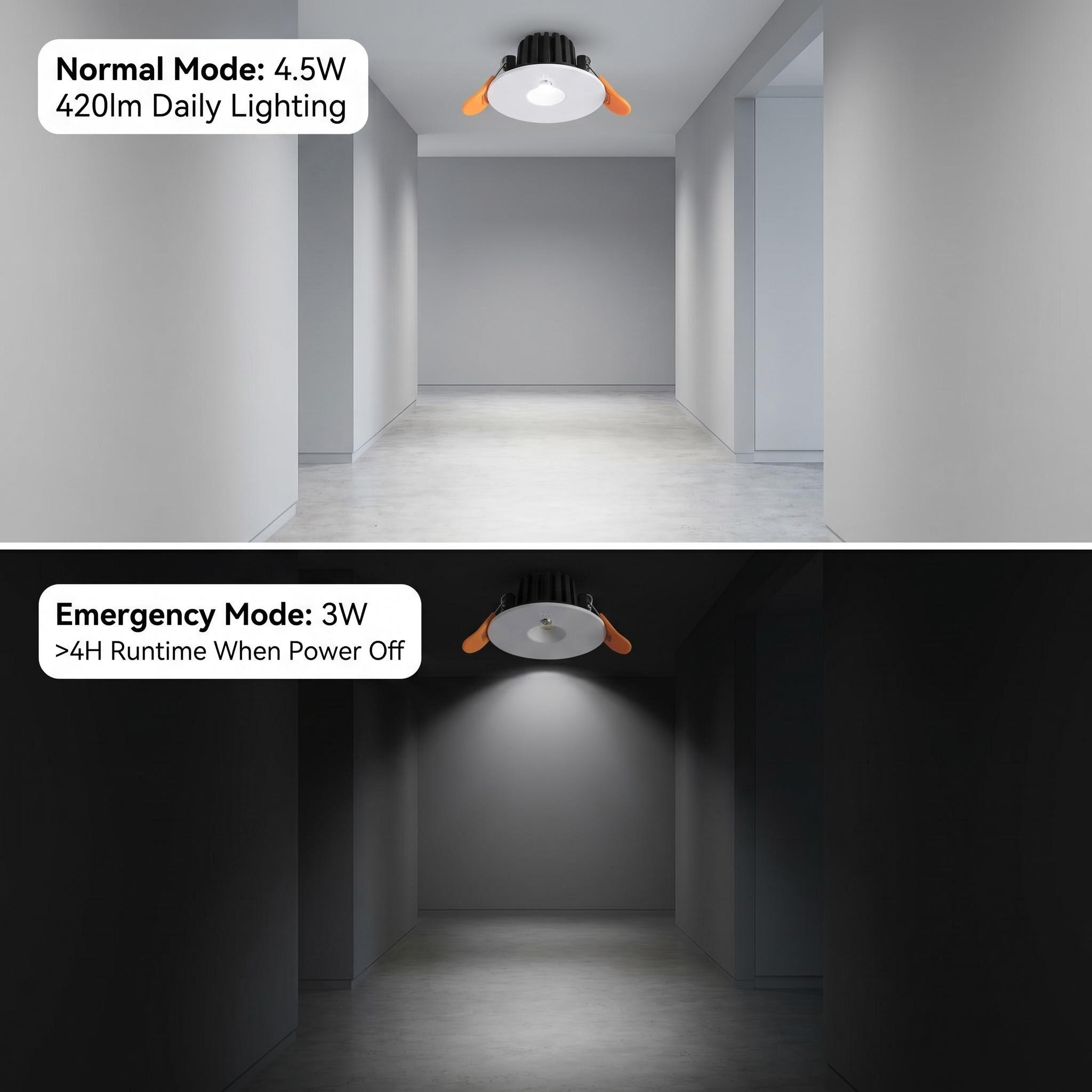

- Dual Working Mode (Emergency + Lighting):Functions as a regular ceiling spotlight under main power (4.5W) and automatically switches to emergency mode (3W) during failures.
- Intelligent Self-Check Function:Automatically monitors system health, reducing the need for manual inspections and ensuring the unit is ready for any crisis.
- High Brightness (420 Lumens):Delivers a strong, focused beam that far exceeds standard emergency markers, making it suitable for high-ceiling or high-visibility areas.
- Smart Status Indicators:Features a 3-color LED system for instant status updates: Red (Main power/Charging) and Yellow (Fault/Trouble detected).
- Premium Material & Design:The Aluminum + PC housing ensures excellent heat dissipation. The slim driver design (150mm) and 40mm cutout allow for easy installation in tight ceiling voids.

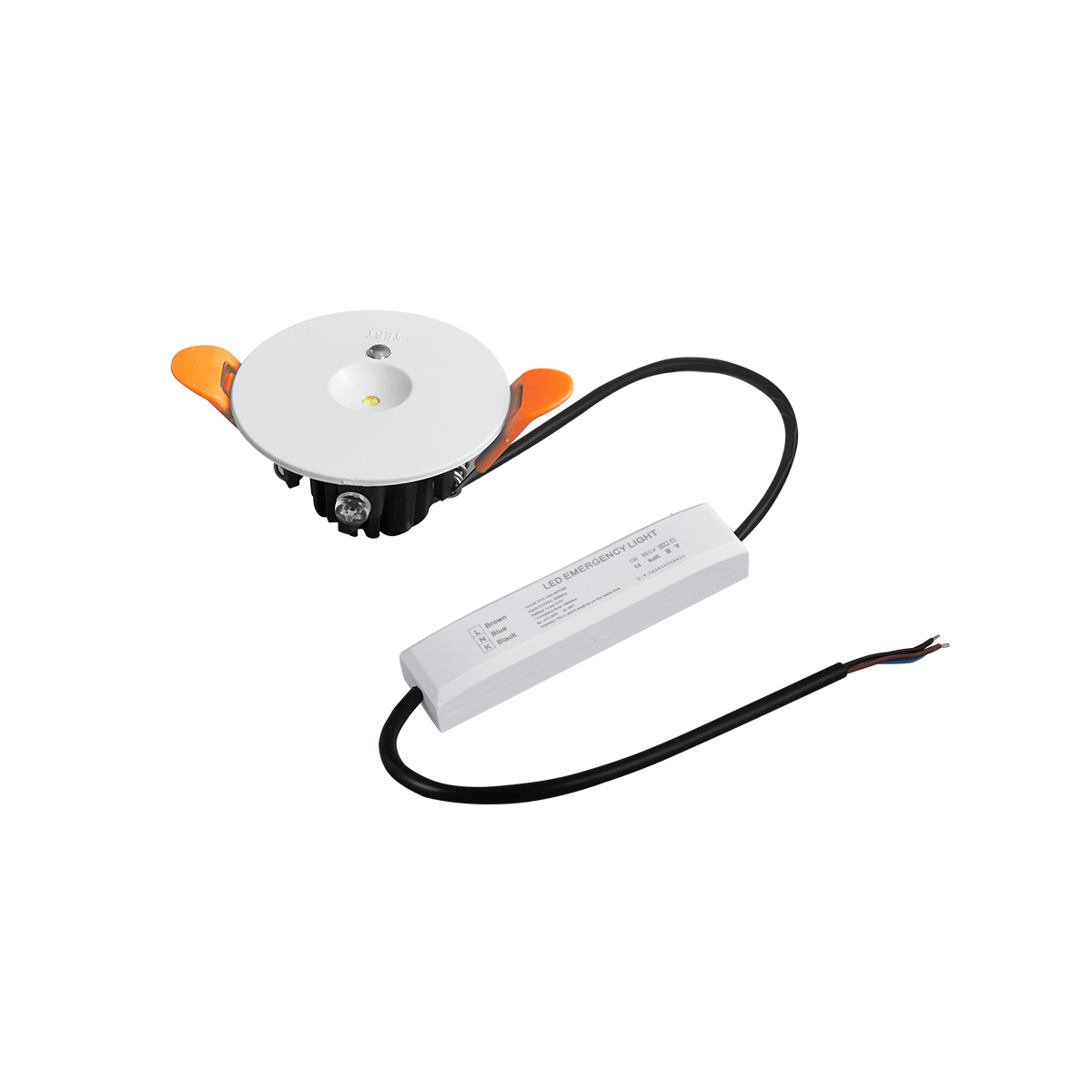

- Certified for Safety:Fully compliant with CB, CE, and RoHS standards for international commercial projects.

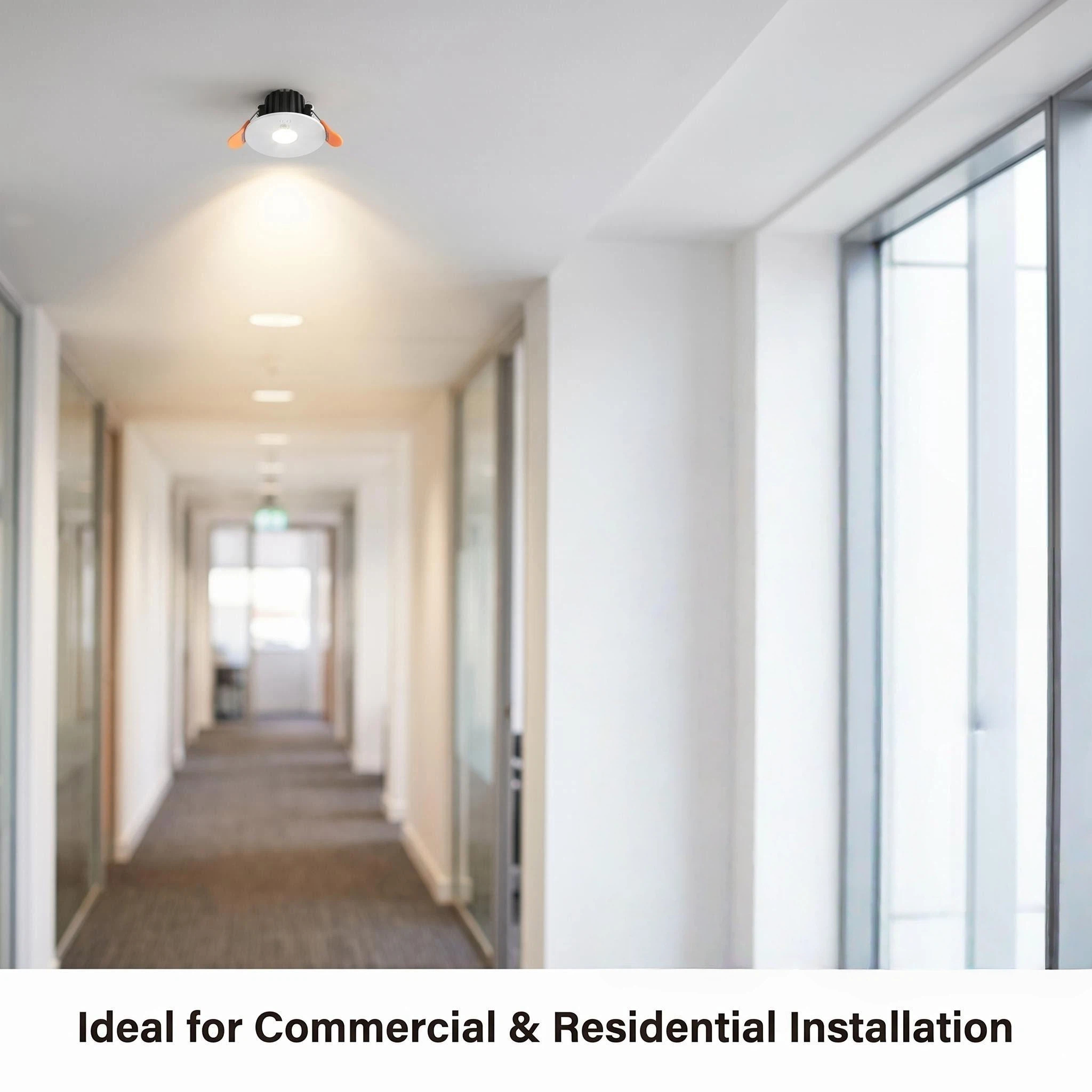

- Application: Hotel Emergency Lighting, Luxury Office Safety Lights, High-Output Emergency Spot.
Specification
| Model | HM-SPT3W-Q |
| LED Power | 4.5W |
| Input Voltage | AC220-240V,50/60Hz |
| Emergency Output | 420lm |
| Color Temperature | 6000K |
| Installation | Recessed(cutout:40mm) |

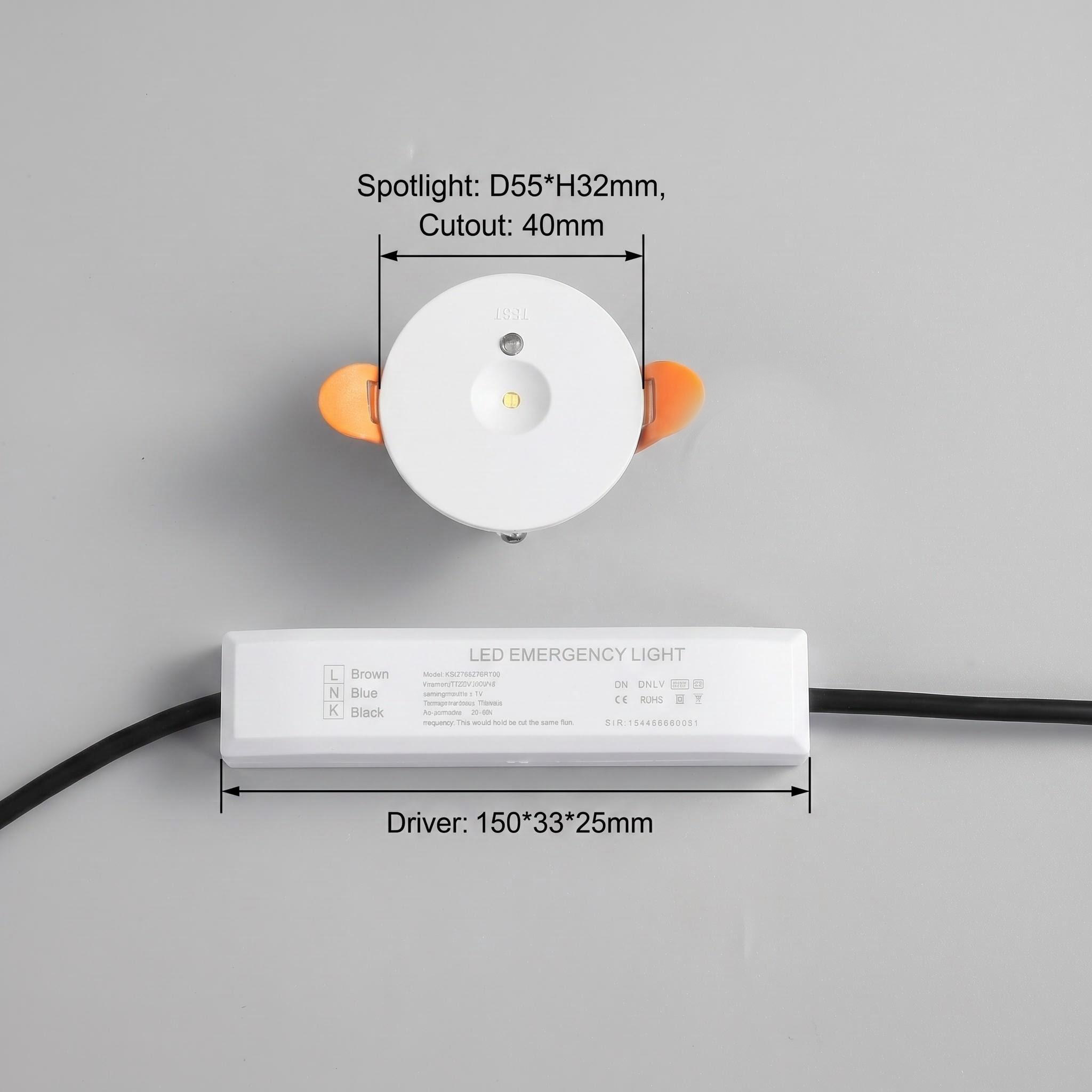

| Dimenstions | Spotlight Size:D55mm x H32mm,Driver Size: 150 * 33 * 25 mm |
| Working Mode | Emergency+Lighting |
| Charging Time | 24hours |
| Warranty | 4Years |
| Test | Manual Test/ Self Test |
| IP Grade | IP30 |
| Stanard | EN60598-2-22 |
HM-SPT3W-Q Emergency Spotlight RFQ
Q1: What is the difference between “Non-maintained” and the “Emergency + Lighting” mode in HM-SPT3W-Q?
A: Standard emergency lights (Non-maintained) only turn on during power outages. The HM-SPT3W-Q features a dual mode, meaning it works as a standard architectural light for daily use and stays on (at 3W) during power failures. This makes it a cost-effective 2-in-1 solution, as you don’t need to install separate fixtures for daily lighting and emergency safety.
Q2: How do the status indicators help with building maintenance?
A: The HM-SPT3W-Q simplifies maintenance through its visual 3-state indicator. The Red light confirms main power and active charging, while the Yellow light immediately alerts staff if there is a “Trouble” (such as a battery fault or circuit error). This visual feedback, combined with the Self-Check function, ensures the system is always operational without complex manual testing.
Q3: Can this spotlight provide enough light for high-traffic commercial corridors?
A: Yes. While many emergency lights offer low lumens just for marking exits, the HM-SPT3W-Q outputs 420 lumens. This high-intensity beam is powerful enough to illuminate pathways clearly in large commercial spaces, ensuring safe and fast evacuation in high-traffic areas like lobbies and corridors.
Q4: Is the 40mm cutout size compatible with standard ceiling installations?

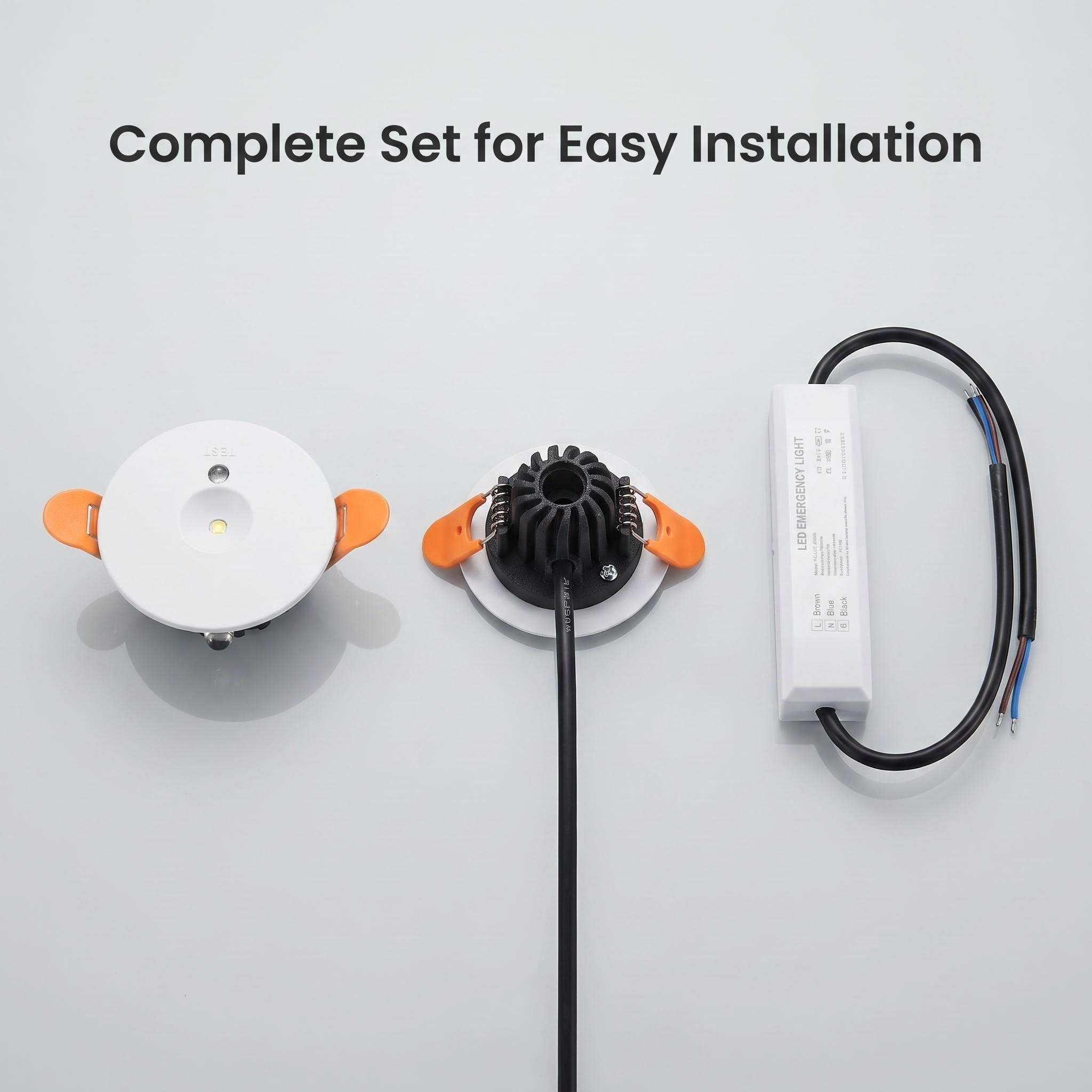

A: Yes, the 40mm cutout is a standard size for mini-spotlights, allowing for a very discreet and modern “trimless” look. The separate, slim-profile driver is designed to slide easily through the cutout, making it ideal for projects where ceiling space is limited but high performance is required.
