Description

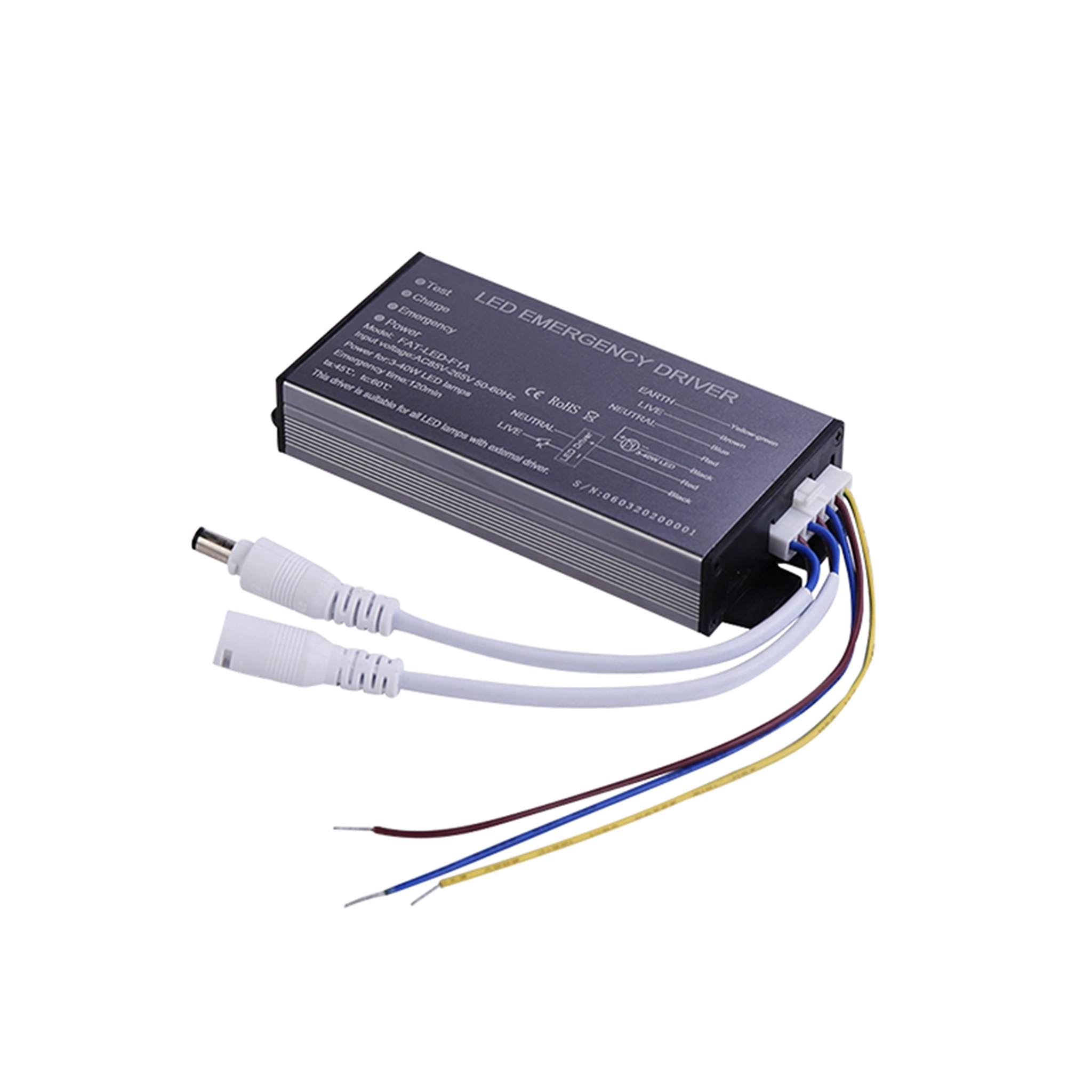

FAT-LED-F1A Universal LED Emergency Driver (3W-60W)

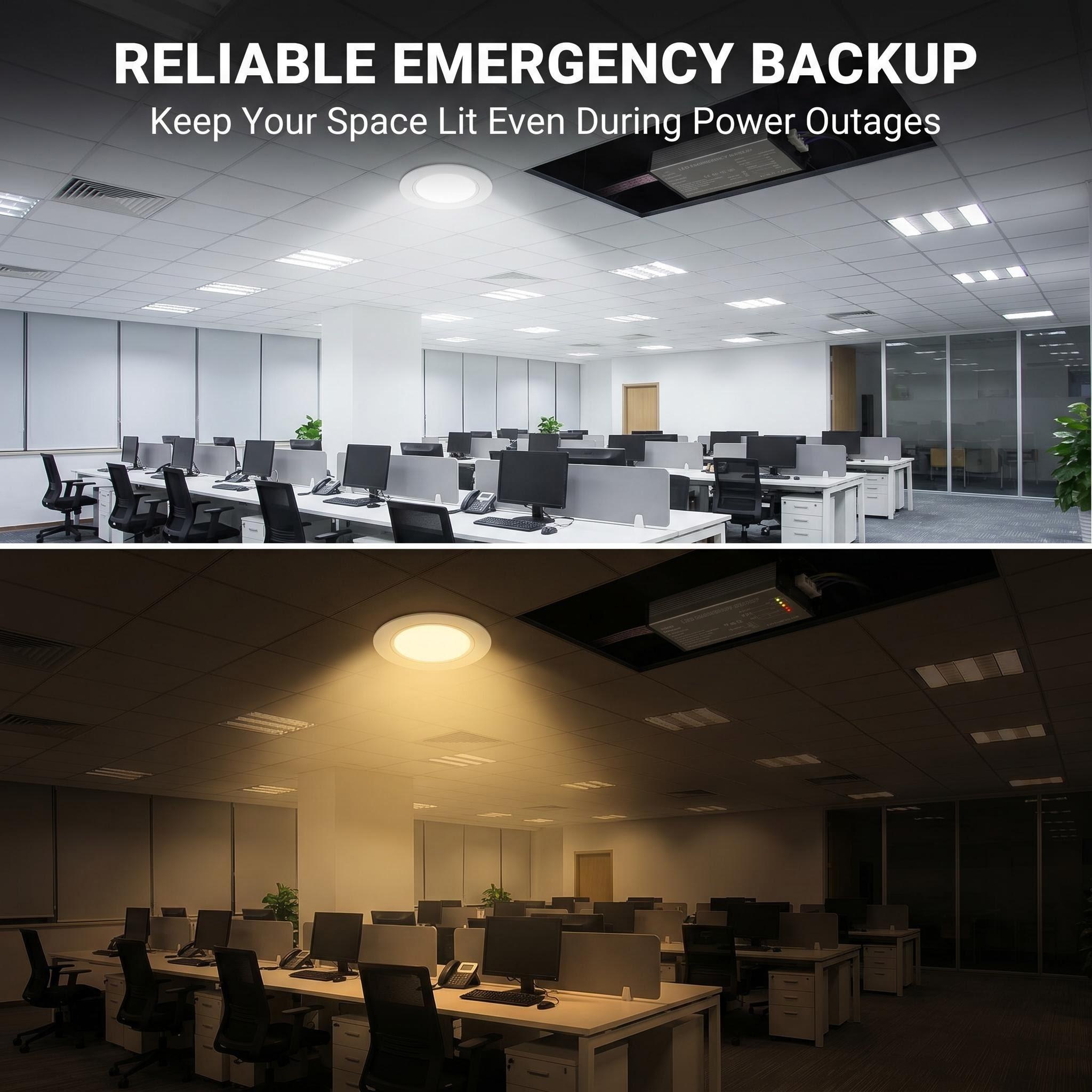

The FAT-LED-F1A is an essential safety component for modern commercial lighting. Specifically engineered for LED fixtures that use external drivers—such as LED panels and downlights—this conversion kit ensures that your lighting remains active during power outages. With a high-quality 3.7V lithium-ion battery, it provides consistent illumination for up to 180 minutes, meeting strict building safety codes.

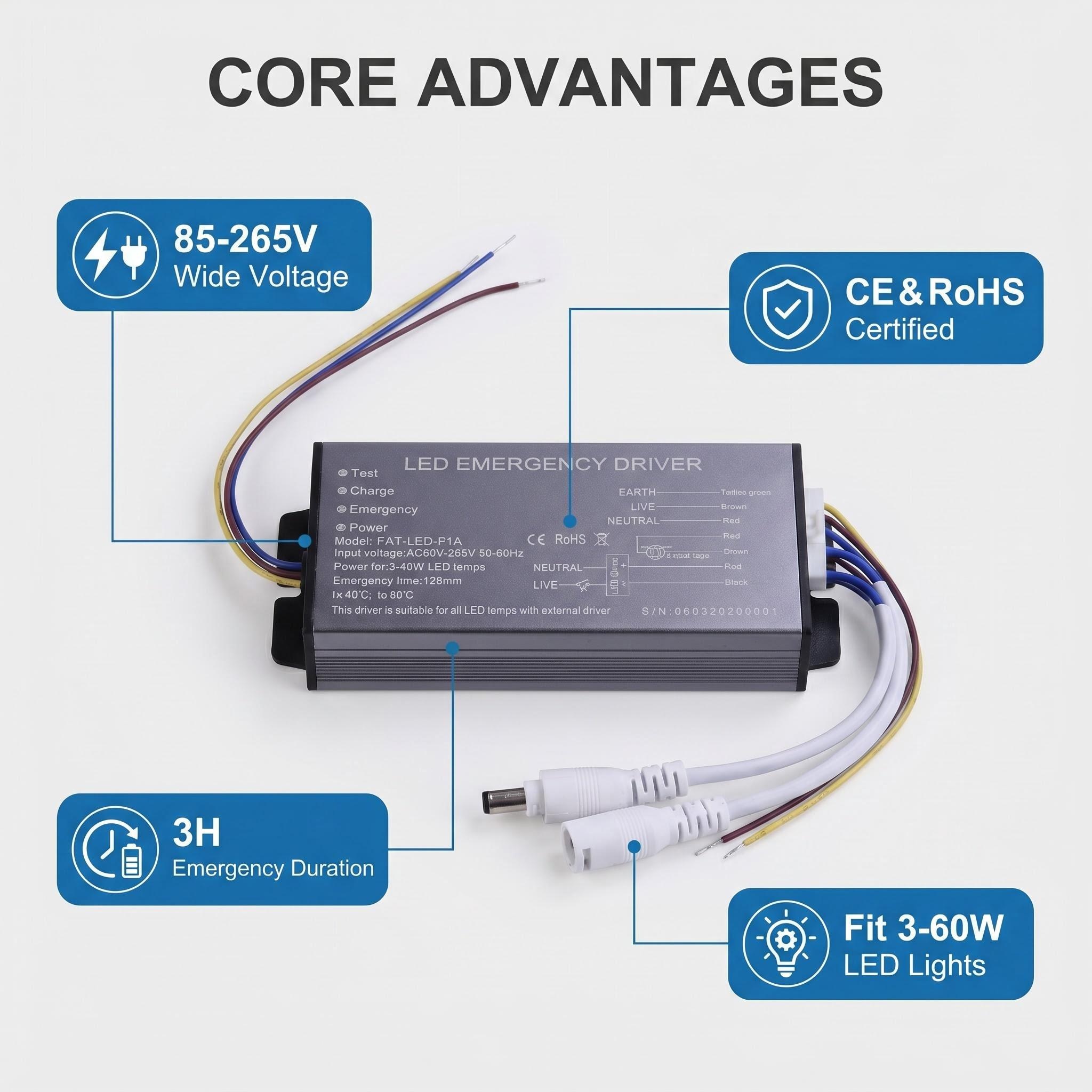

Features:
- High Compatibility:Supports a wide range of LED fixtures from 3W to 60W. The auto-adjusting output voltage (9-160V) makes it compatible with various COB and SMD light sources.
- 3-Hour Emergency Duration:Powered by a reliable 3.7V 2400mAh 18650 Li-ion battery, ensuring ample time for safe evacuation

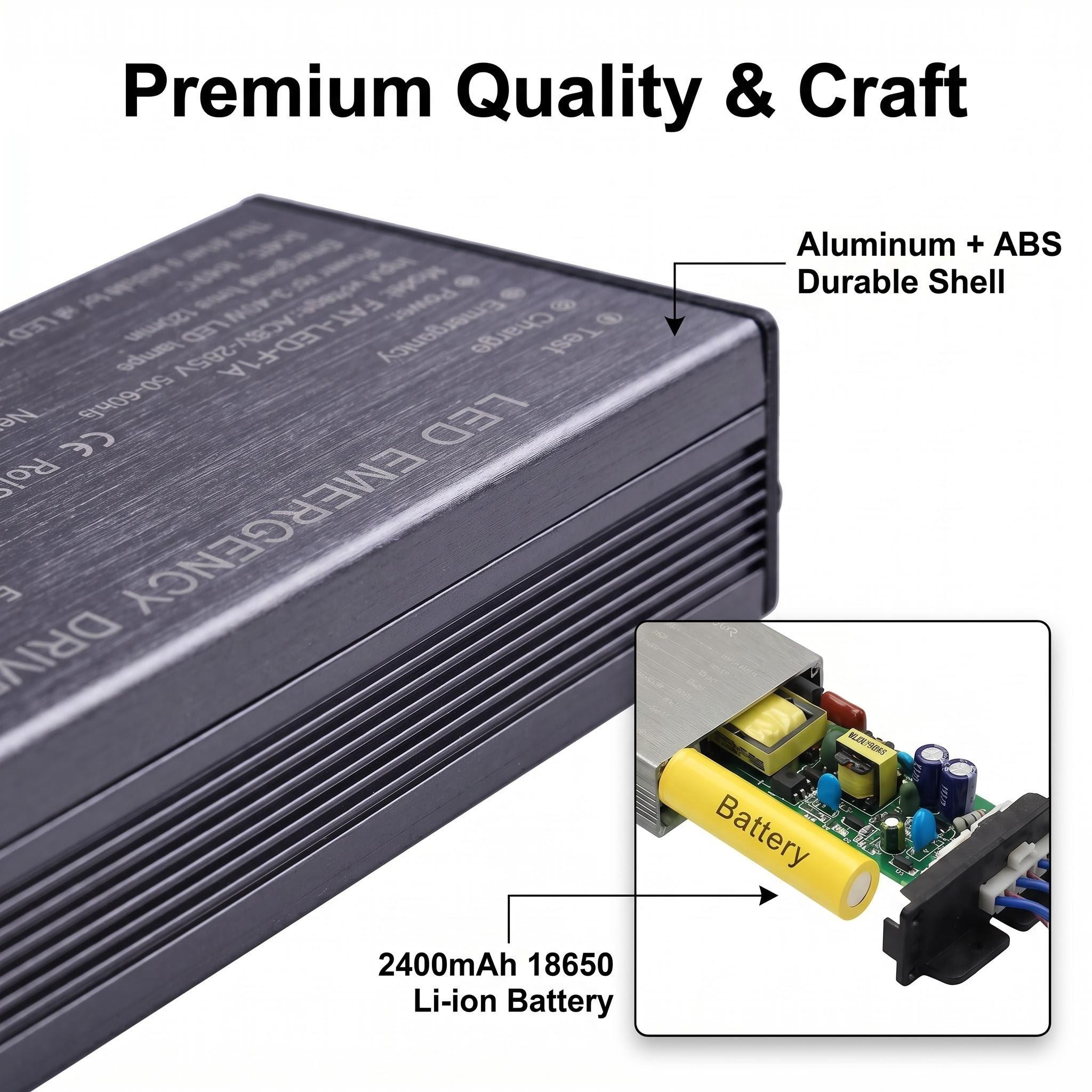

- Durable Hybrid Housing:Constructed with ABS and Aluminum, offering an excellent balance of lightweight design, impact resistance, and heat dissipation.

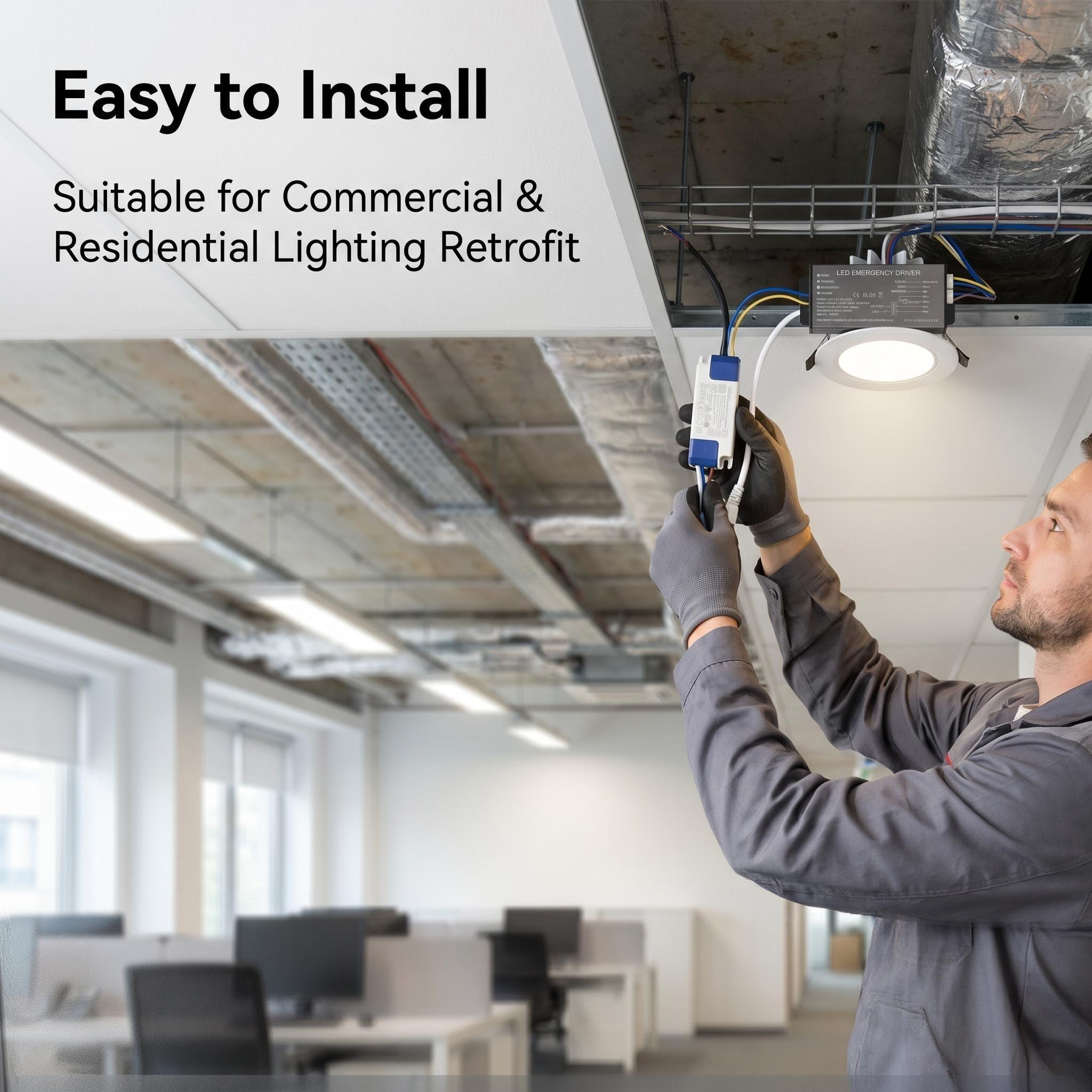

- Slim & Compact Profile: At only 22mm thick, it easily fits into narrow ceiling voids and small mounting boxes, simplifying the installation process for contractors.
- Safe & Certified: Fully compliant with CE and RoHS standards, guaranteeing electrical safety and environmental protection.
- Intelligent Charging: Features an automated charging system that keeps the battery at peak readiness without overcharging.
Specification:
| Model | FAT-LED-F1A |
| Input power | 3-60W |
| Rated voltage | AC85-265V,50/60Hz |
| Changing time of Emergency | 3S |
| Output voltage | DC9-160V (Auto-Sensing) |
| Output power while emergency | 4W (Constant) |
| Emergency time | 3 Hours (180 Minutes) |
| Battery Backup | 3.7V 2400mAH |
| Charging Current | 300mA |
| Emergency output | 4W |
| Type of lamp | LED Panels, LED Downlights, and other fixtures with external drivers. |
| IP Grade | IP30 |
| Emergency Type | Emergency +Lighting |
| Stanard | EN60598-2-22 |

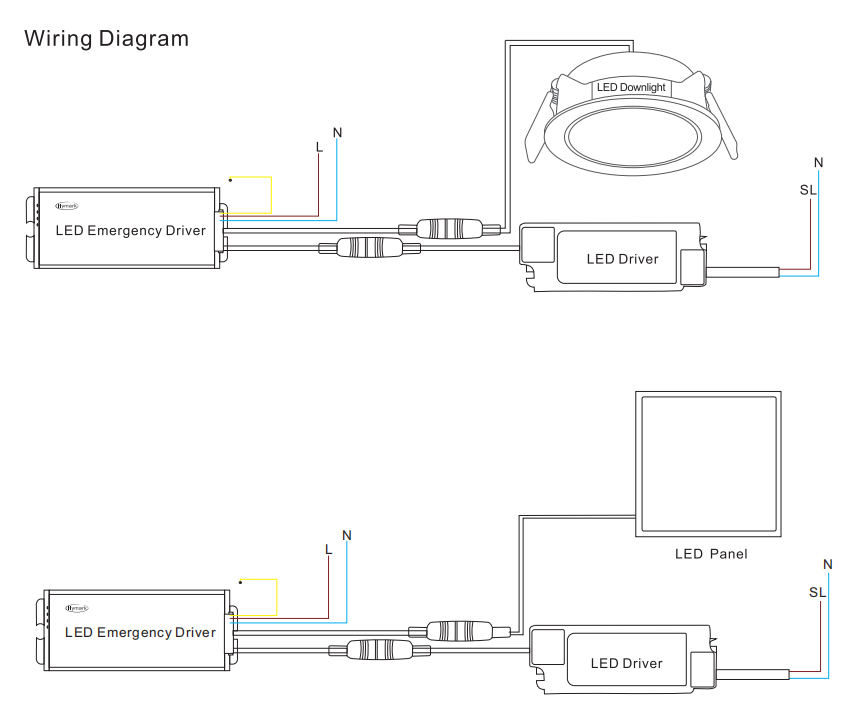

FAT-LED-F1A Wiring Diagram:
FAT-LED-F1A Emergency Driver RFQ:
Q1: Which types of LED fixtures are compatible with this driver?
A: This model is specifically designed for LED fixtures with external drivers. It is the ideal solution for LED panels, LED downlights, and other commercial LED ceiling lights
Q2: How long will the light stay on during an emergency?
A: The FAT-LED-F1A provides a guaranteed emergency duration of 3 hours (180 minutes)
Q3: Is the device small enough to fit in tight spaces?

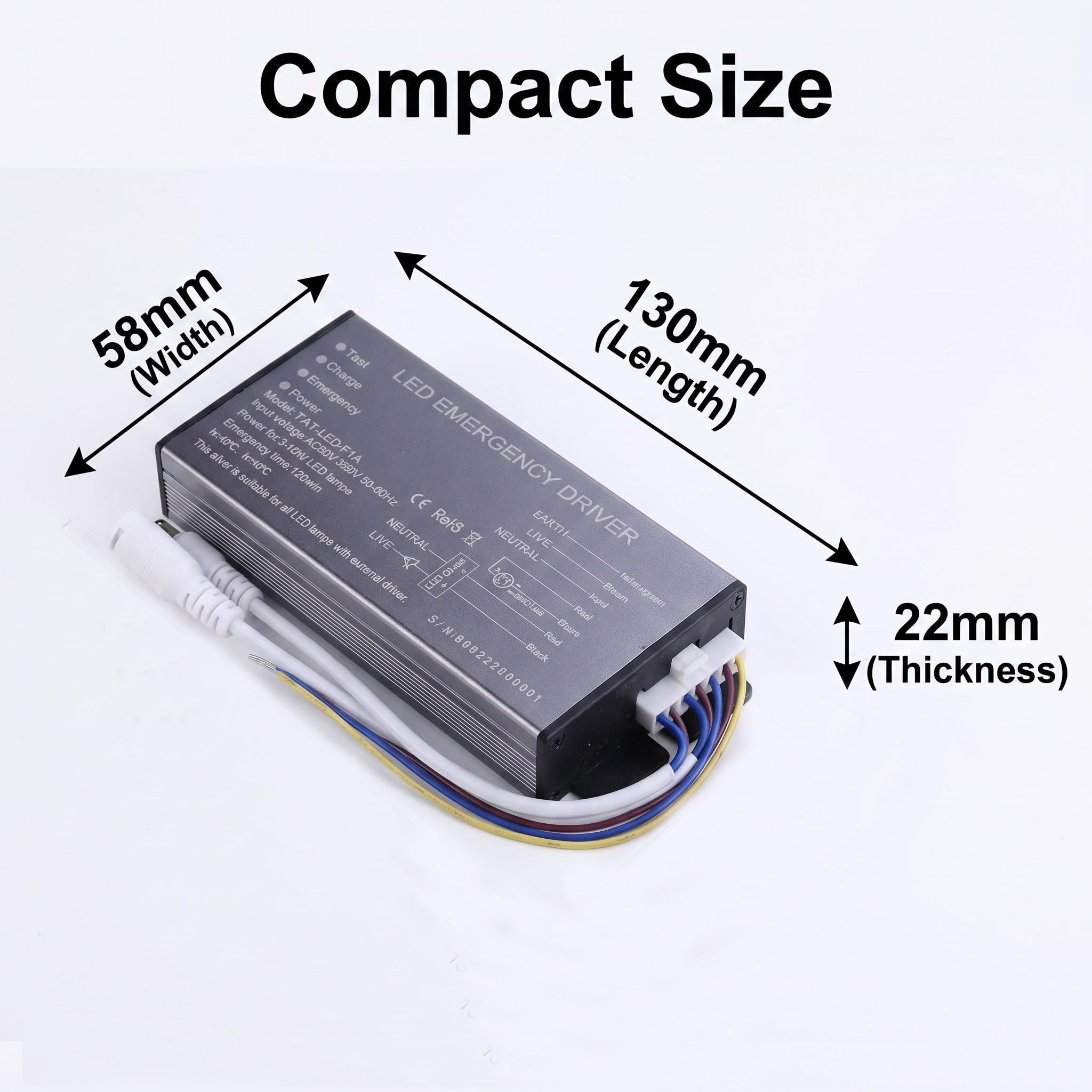

A: Yes, it features a slim and compact design with dimensions of 130 * 58 * 22 mm, making it easy to install in narrow ceiling voids or small junction boxes
