Description

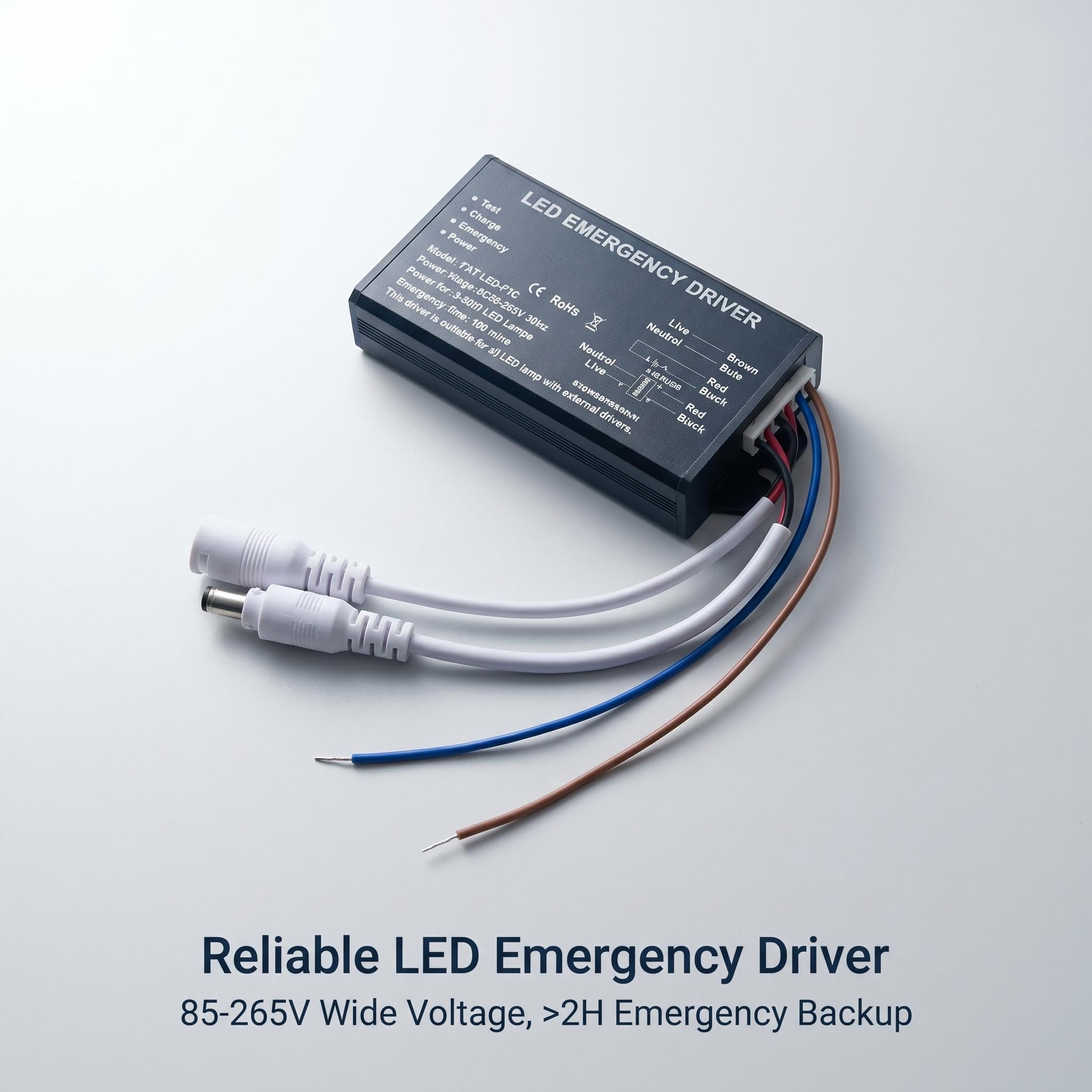

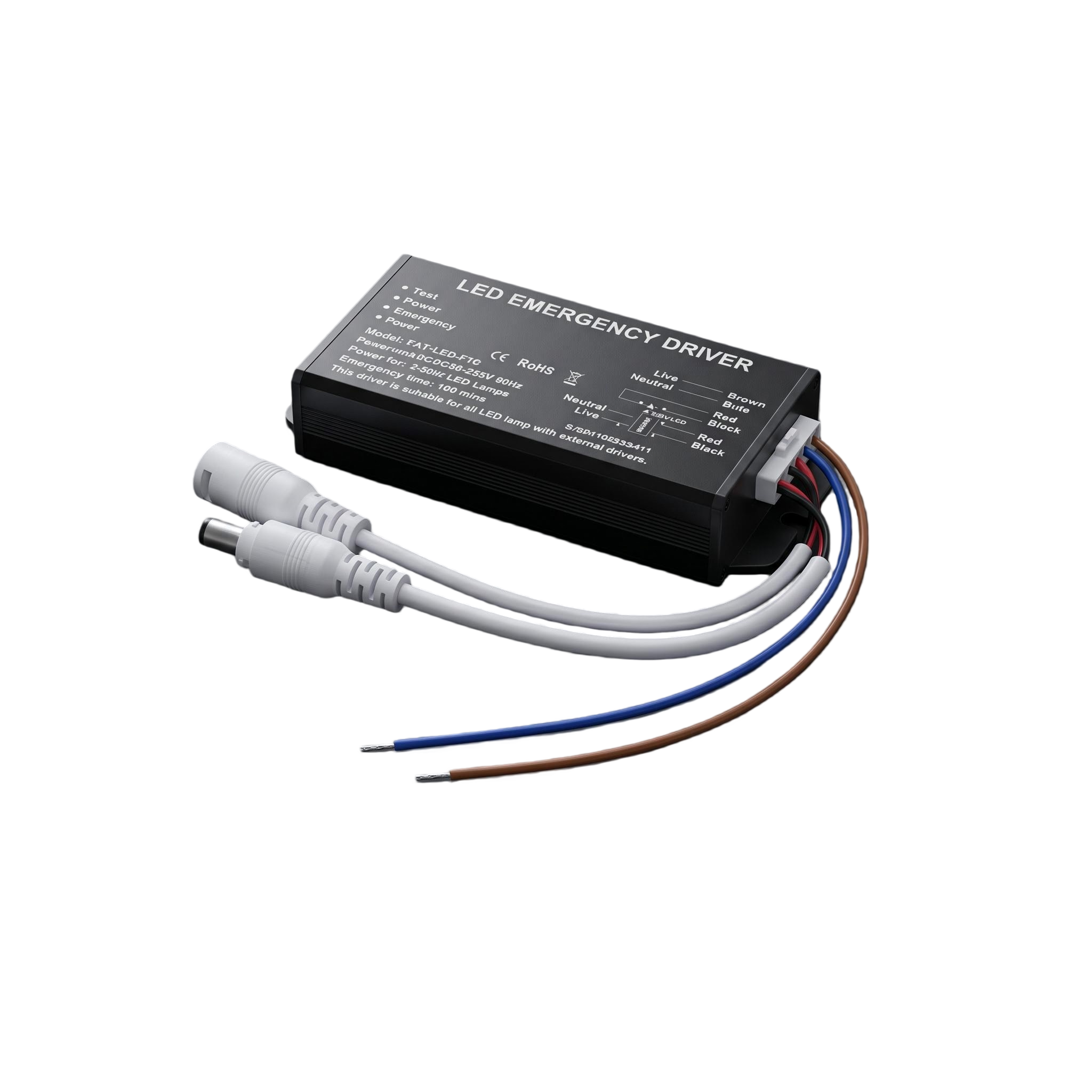

FAT-LED-F1C: Highly Efficient & Ultra-Compact Emergency Solution for 80W LEDs
When ceiling space is at a premium but high-power lighting compliance is mandatory, the FAT-LED-F1C is the perfect answer. By optimizing internal circuitry, this emergency pack achieves an exceptionally small footprint while safely managing high-wattage LED fixtures up to 80W. It automatically detects power failures and instantly switches to emergency battery power to safeguard public and commercial environments.
Key Features
- Extra-Wide 3-80W Loading Capacity:A single driver can be used across multiple lighting lines, backing up everything from low-wattage spotlights to high-power commercial office panels.

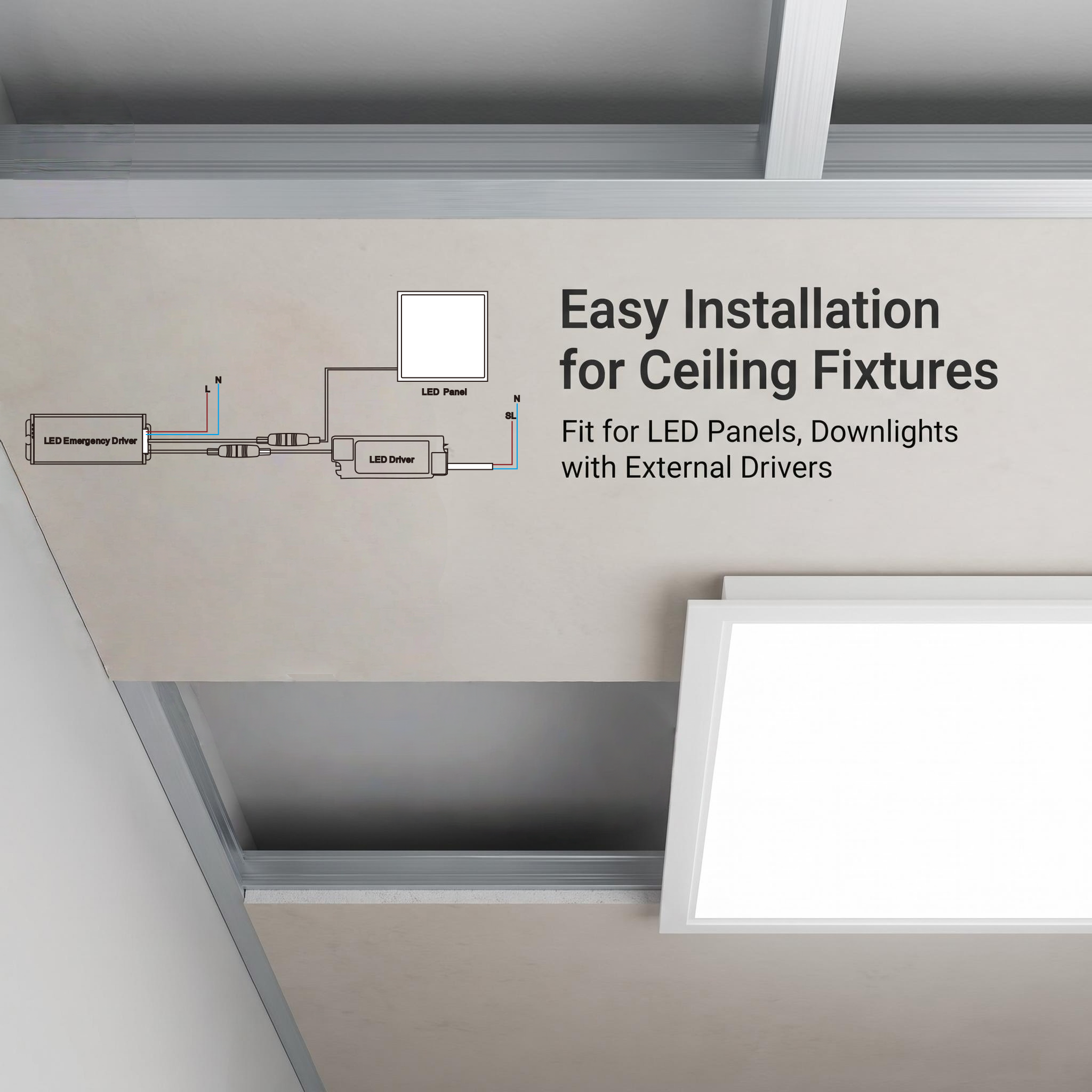

- Ultra-Compact Profile:Measuring only 114mm in length and 23mm in thickness, it dramatically simplifies installation in shallow plenums and tight luminaire housings.
- Wide DC 10-185V Output:Automatically adjusts its output voltage to match the connected LED module’s forward voltage, ensuring broad compatibility.
- Reliable Lithium Power:Equipped with a dependable 18650 3.7V 2200mAh Li-ion battery designed for stable, long-term cycle life and rapid recharge.
- Instant Auto-Switching:Seamlessly switches from main power to emergency mode within milliseconds of a power outage, guaranteeing uncompromised safety paths.
- Global Grid Compatibility: Features a universal AC 85-265V smart voltage input, making it globally deployable without regional modifications.
Technical Specifications:
| Model | FAT-LED-F1C |
| Loading | LED Module 3-80W |
| Input Voltage | AC85-265V,50/60Hz |
| Output Voltage | DC10-185V |
| Battery | Li-ion 3.7V 2200mAH |
| Emergency Power | 3W |
| Emergency Runtime: | ≥ 120 Minutes (2 Hours) |
| Dimenstions | 114*54*23mm |
| Working Mode | Emergency+Lighting |
| Charging Time | 24hours |

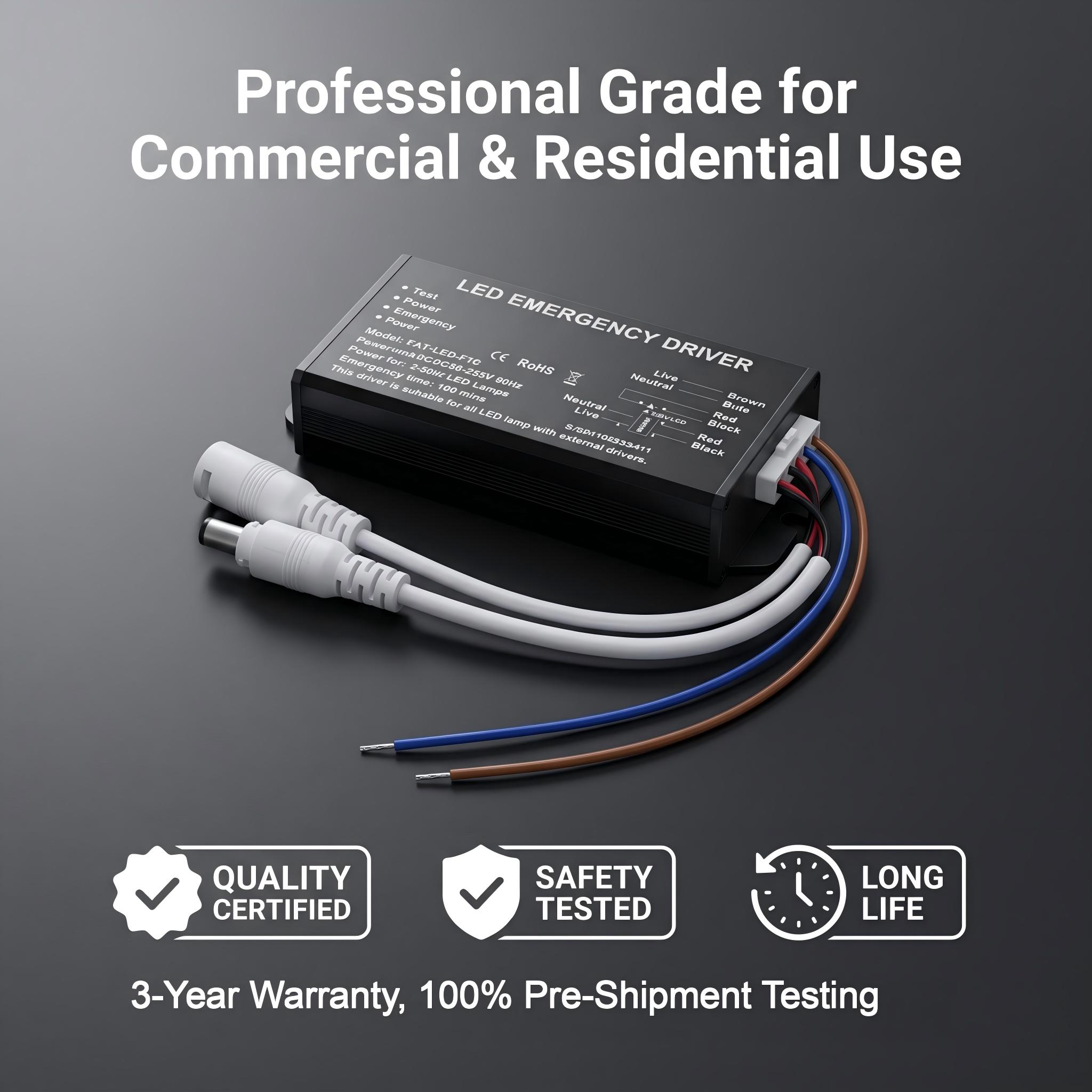

| Warranty | 3Years |
| Material | Aluminum Housing |
| IP Rating | IP20 |
| Applications | LED Panel,LED downlight, all led lights with external driver |
| Stanard | EN60598-2-22 |

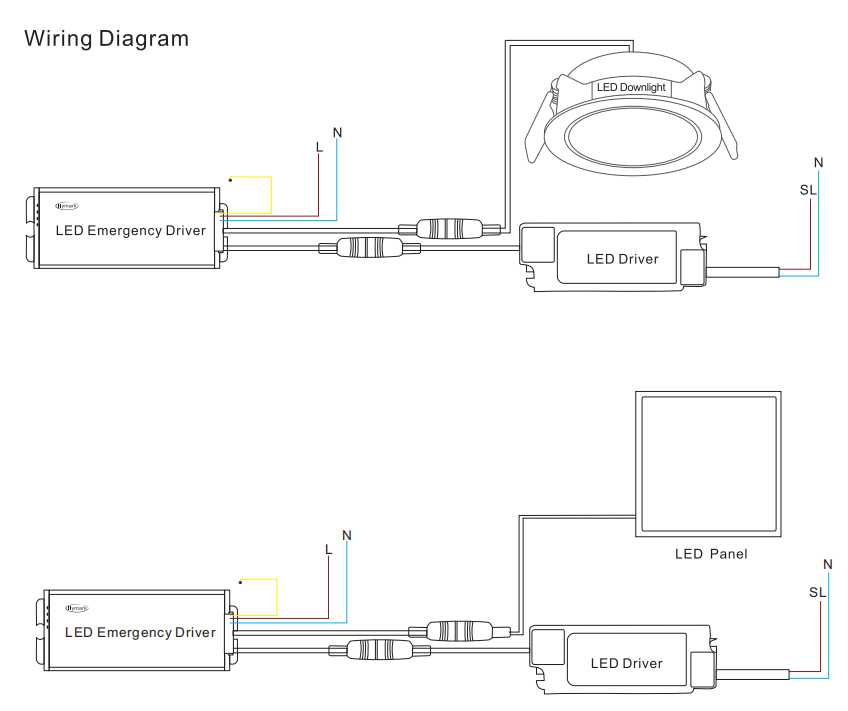

FAT-LED-F1C LED Emergency driver Wiring diagram:
FAT-LED-F1C LED Emergency driver RFQ:
Q1: What makes the FAT-LED-F1C different from the FAT-LED-F1A model?
A: The FAT-LED-F1C is specifically optimized for tighter spaces and heavier loads. It has a significantly shorter housing length (114mm compared to 130mm), making it easier to install in compact spaces, while its power loading capacity is upgraded to support up to 80W fixtures (compared to F1A’s 60W).
Q2: Can this emergency driver work with smart or dimmable LED panels?
A: Yes. The FAT-LED-F1C sits between the main utility line, the original external LED driver, and the LED panel. During normal operation, it simply passes through power, allowing your original driver to dim or control the light normally. It only takes control and delivers emergency DC power directly to the LEDs when a mains power failure occurs.
Q3: Is the >2 hours emergency time compliant with safety regulations?
A: Yes, in many regions globally (including parts of Europe, Asia, and Latin America), fire safety codes require emergency egress lighting to remain active for a minimum of 90 to 120 minutes. The FAT-LED-F1C’s premium 2200mAh battery provides an ideal balance of compact size and compliant runtime.
