Description

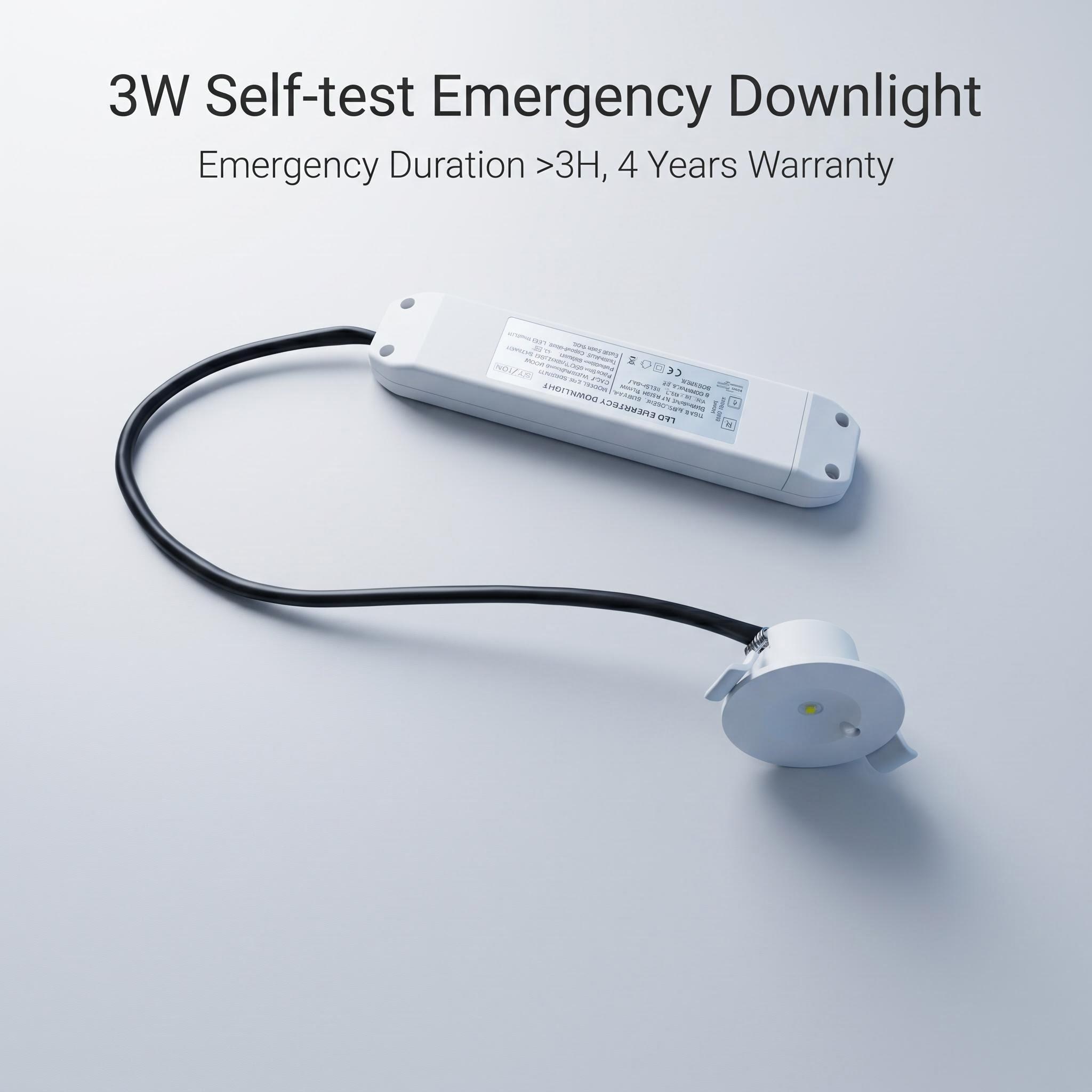

HM-SPT3W-S: Intelligent & Discreet Emergency Lighting

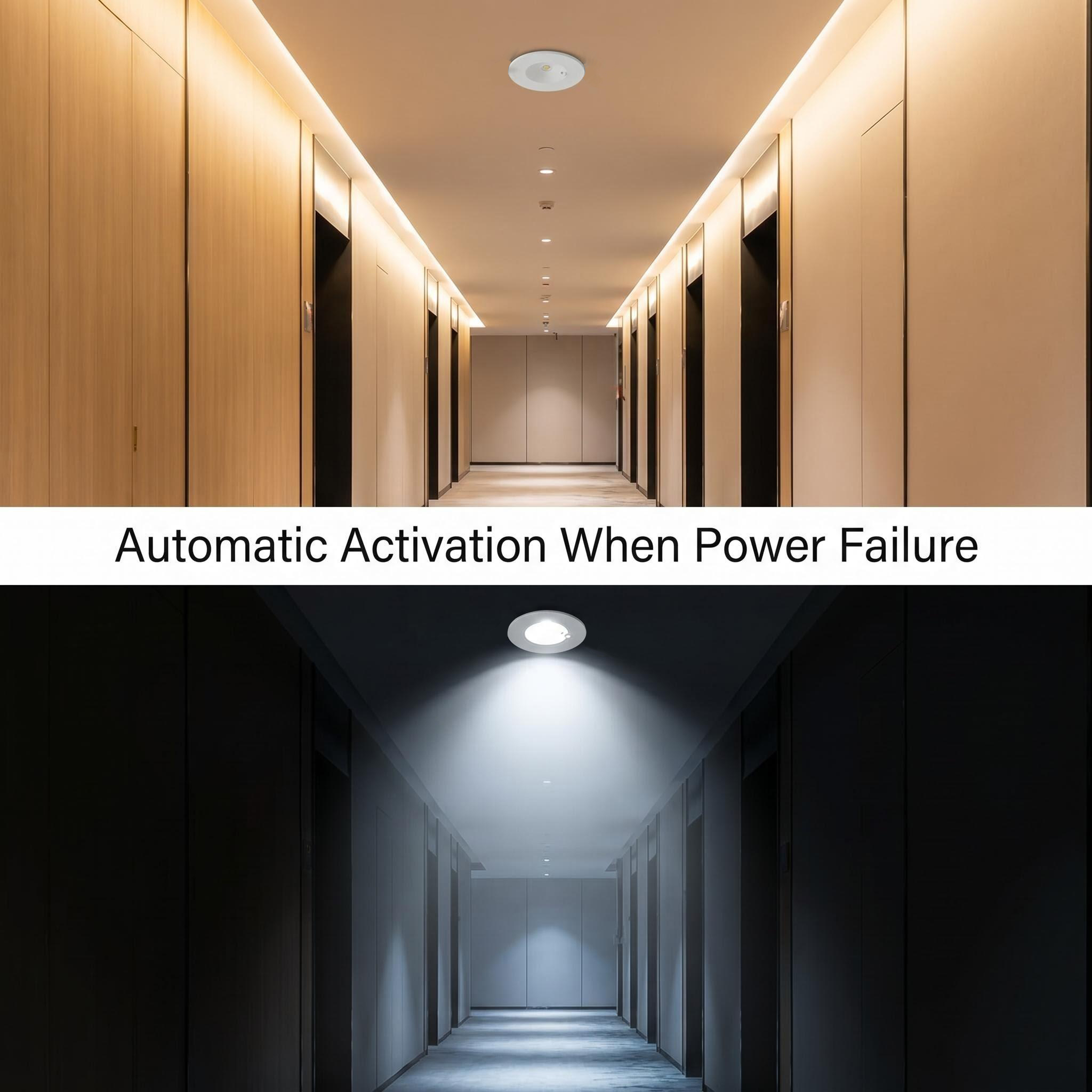

The HM-SPT3W-S represents the standard in maintenance-free emergency lighting. Designed specifically for recessed installation, its compact footprint makes it nearly invisible in architectural ceilings while providing critical illumination when needed most. Operating in non-maintained mode, it stays off during normal power and activates instantly upon failure.
Key Features:
- Automatic Self-Test: Features built-in intelligence that automatically performs periodic checks on battery health and LED functionality, ensuring compliance without manual labor.
- Reliable Emergency Backup: Provides a consistent 180-lumen outputfor a duration exceeding 3 hours, ensuring safe evacuation paths in large buildings.
- High-Quality Output: Delivers crisp 6000K daylightto provide maximum visibility during dark emergency conditions.

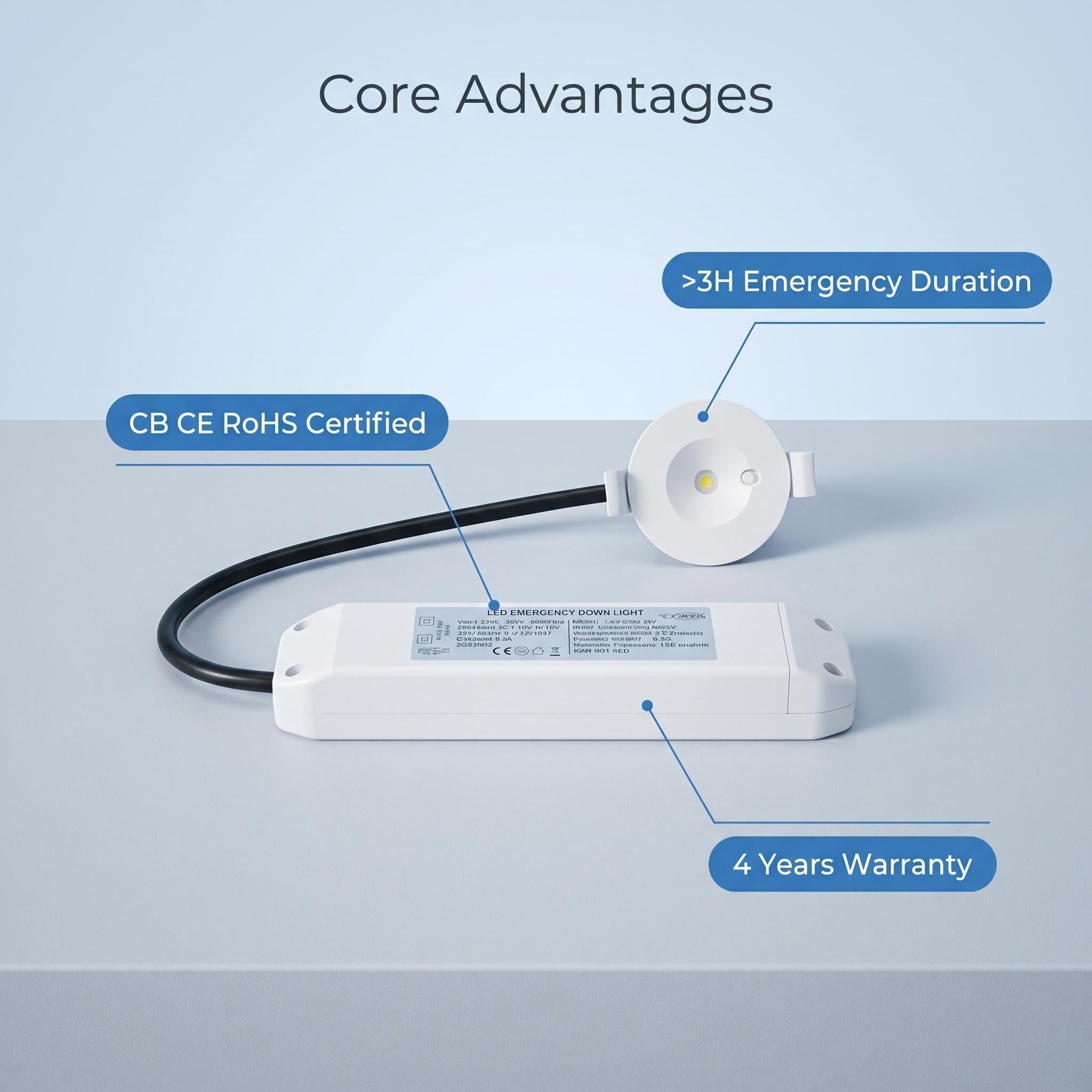

- Split-Driver Design: The separate battery/driver pack and compact lamp head allow for easy installation in tight ceiling voids.
- Industry-Leading Warranty: Backed by a 4-year warranty, reflecting its superior build quality and long-term reliability.

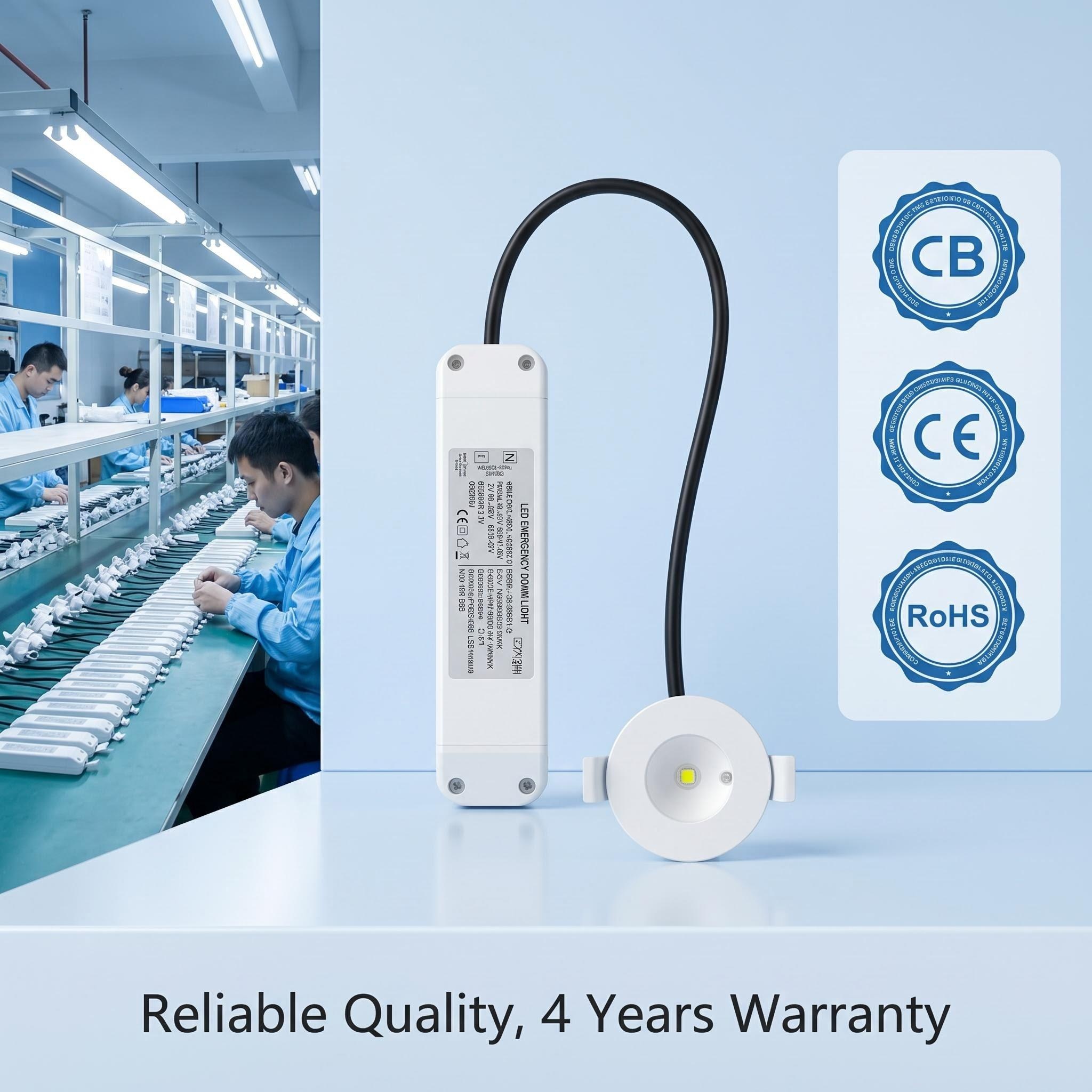

- Global Compliance: Fully certified with CB, CE, and RoHS, making it suitable for international safety projects.
Specification
| Model | HM-SPT3W-S |
| LED Power | 3W |
| Input Voltage | AC220-240V,50/60Hz |
| Emergency Output | 180lm |
| Color Temperature | 6000K |
| Installation | Recessed(cutout:40mm) |
| Dimenstions | Dia:60*H26.5mm.Cutout:D40mm |
| Working Mode | Non-Maintained |
| Charging Time | 24hours |
| Warranty | 4Years |
| Test | Manual Test/ Self Test |
| IP Grade | IP30 |
| Stanard | EN60598-2-22 |
HM-SPT3W-S Emergency Spotlight RFQ:
Q1: What is the benefit of the “Self-test” function in the HM-SPT3W-S?
A: The Self-test feature in the HM-SPT3W-S allows the unit to automatically monitor its own performance. It tests the battery and lamp circuitry at regular intervals to ensure everything is working correctly. This significantly reduces maintenance costs and ensures that you are always meeting building safety regulations without needing manual physical checks.
Q2: Is this downlight suitable for shallow ceiling spaces?
A: Yes. Thanks to its split design, only the small lamp head is visible on the ceiling, while the slim battery and driver pack can be tucked away in the ceiling void. This makes it ideal for modern commercial ceilings with limited space.
