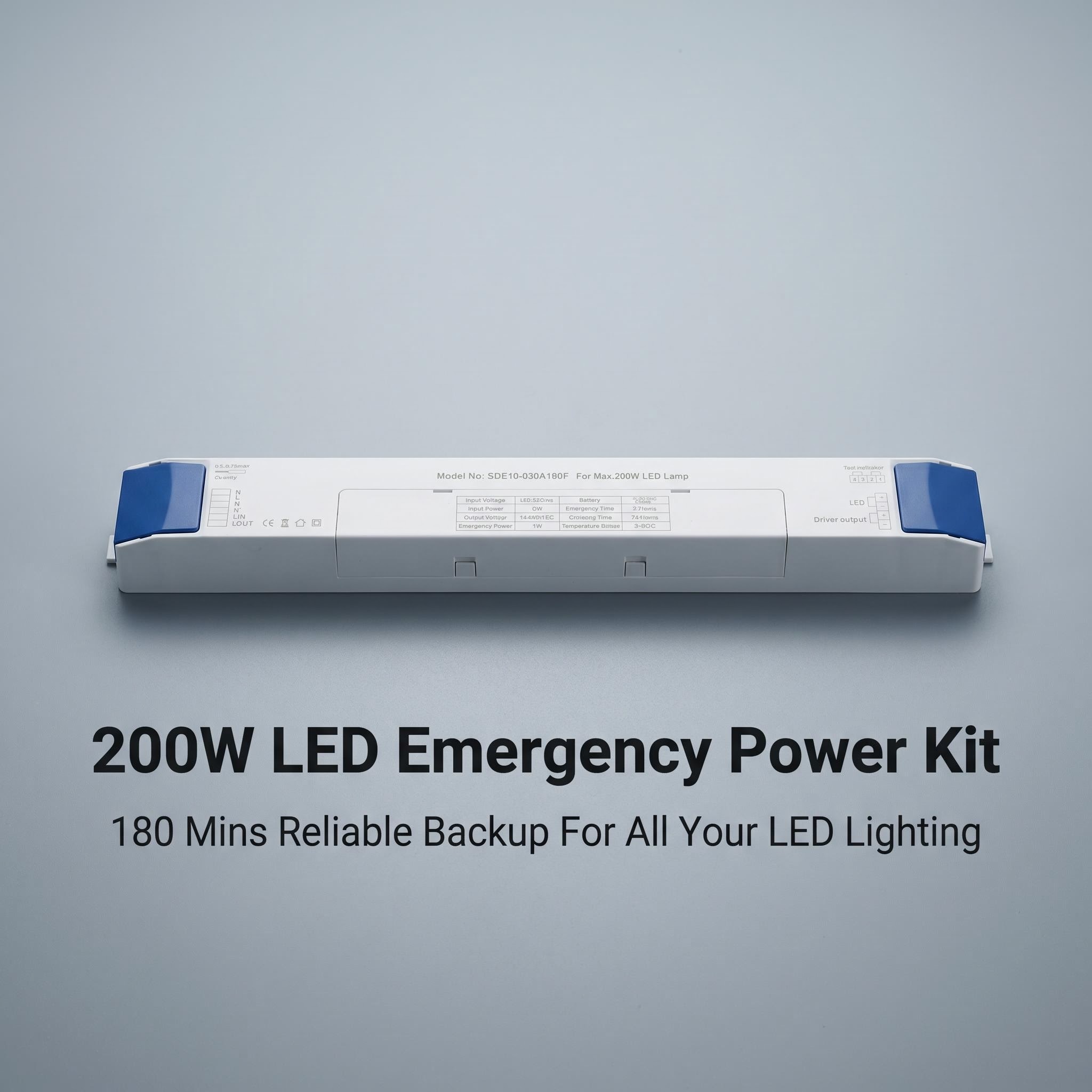

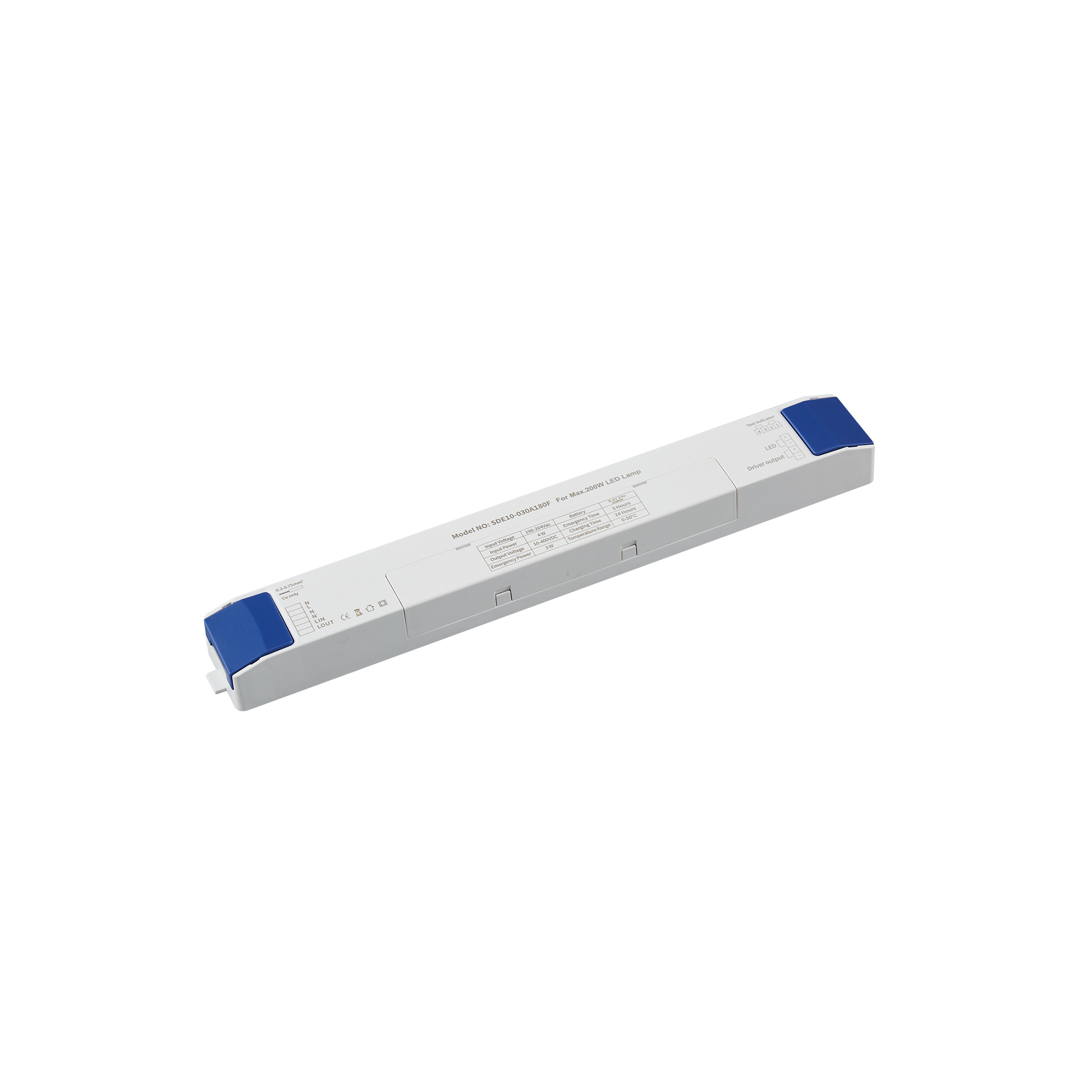

SDE10-030A180F High-Compatibility LED Emergency Conversion Module
The SDE10-030A180F is the ultimate “one-size-fits-most” emergency kit for modern LED lighting. Whether you are retrofitting LED tubes or installing high-power panel lights, this kit ensures your facility remains illuminated during power outages. Its advanced circuitry supports a massive loading range, managing LED drivers from 3W to 200W.
Key Features:

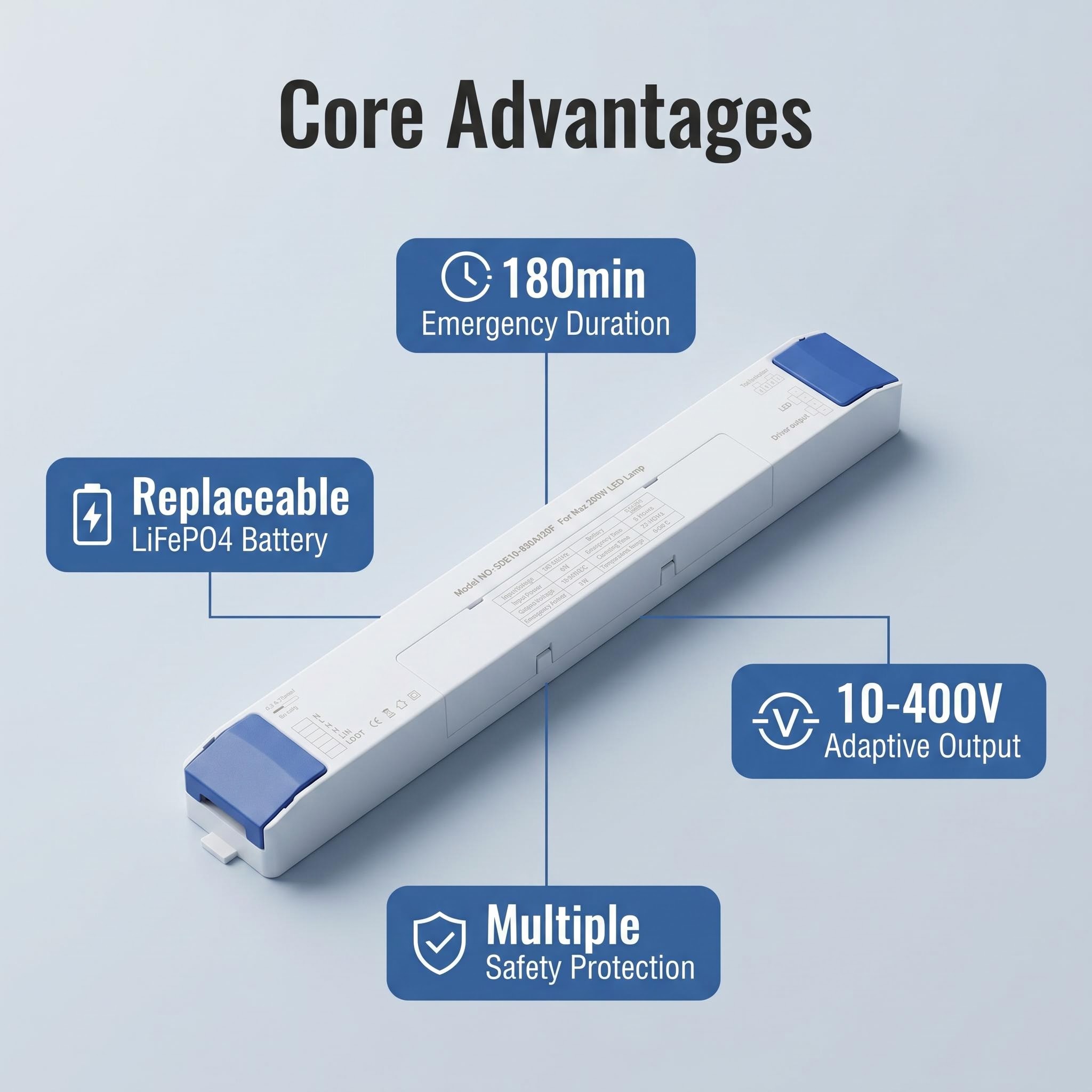

- Universal Compatibility: Works seamlessly with LED modules (20-400Vdc) and LED drivers (3-200W), regardless of whether the driver is internal or external.
- Extended 3-Hour Backup:Delivers a constant 3W emergency power for 180 minutes, meeting strict safety regulations for evacuation.

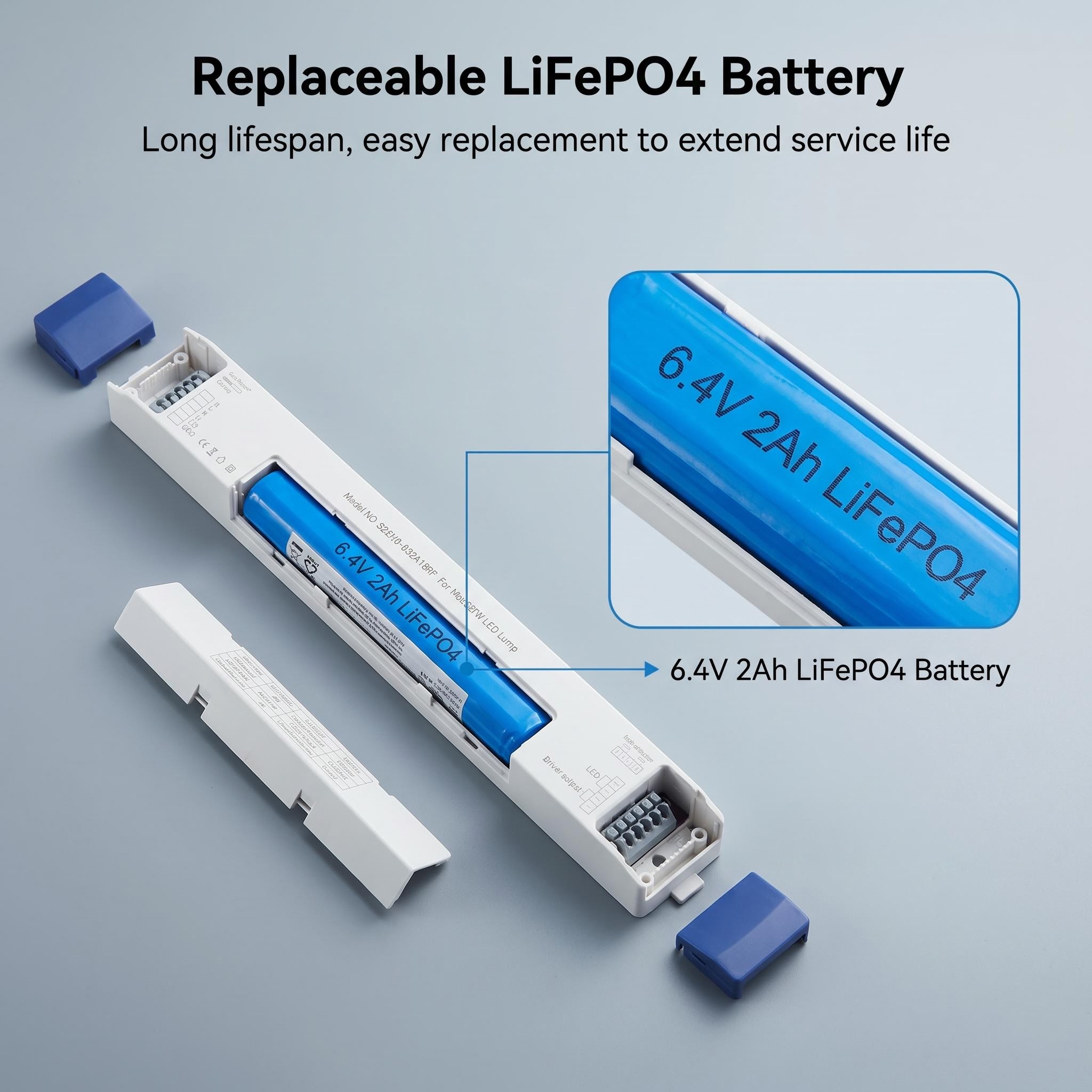

- Advanced LiFePO4 Technology:Utilizes a 6.4V 2Ah LiFePO4 battery for superior thermal stability and long service life, designed for easy replacement.
- Intelligent Maintenance: Features both Manual test and Auto-test functions, reducing the need for manual inspection and ensuring the system is always ready.
- Safety & Protection:Class II protection and IP20 rated, providing a safe and reliable conversion for indoor luminaires.
- Certified Quality: Fully compliant with CB, CE, and RoHS standards for global safety projects.
Technical Specifications:
| Model | SDE10-030A180F |
| Loading | LED Module (20-400Vdc) / LED Driver (3-200W) |
| Input Voltage | AC198-264V,50/60Hz |
| Output Voltage | DC10-400V |
| Battery | LiFePO4 6.4V 2000mAh |
| Emergency Power | 3W |
| Emergency Runtime: | ≥ 180 Minutes (3 Hours) |
| Installation | Surface Mounting |
| Dimenstions | 350*110*75mm |
| Working Mode | Emergency+Lighting |
| Charging Time | 24hours |
| Material | PC |
| IP Rating | IP20 |
| Warranty | 4years |

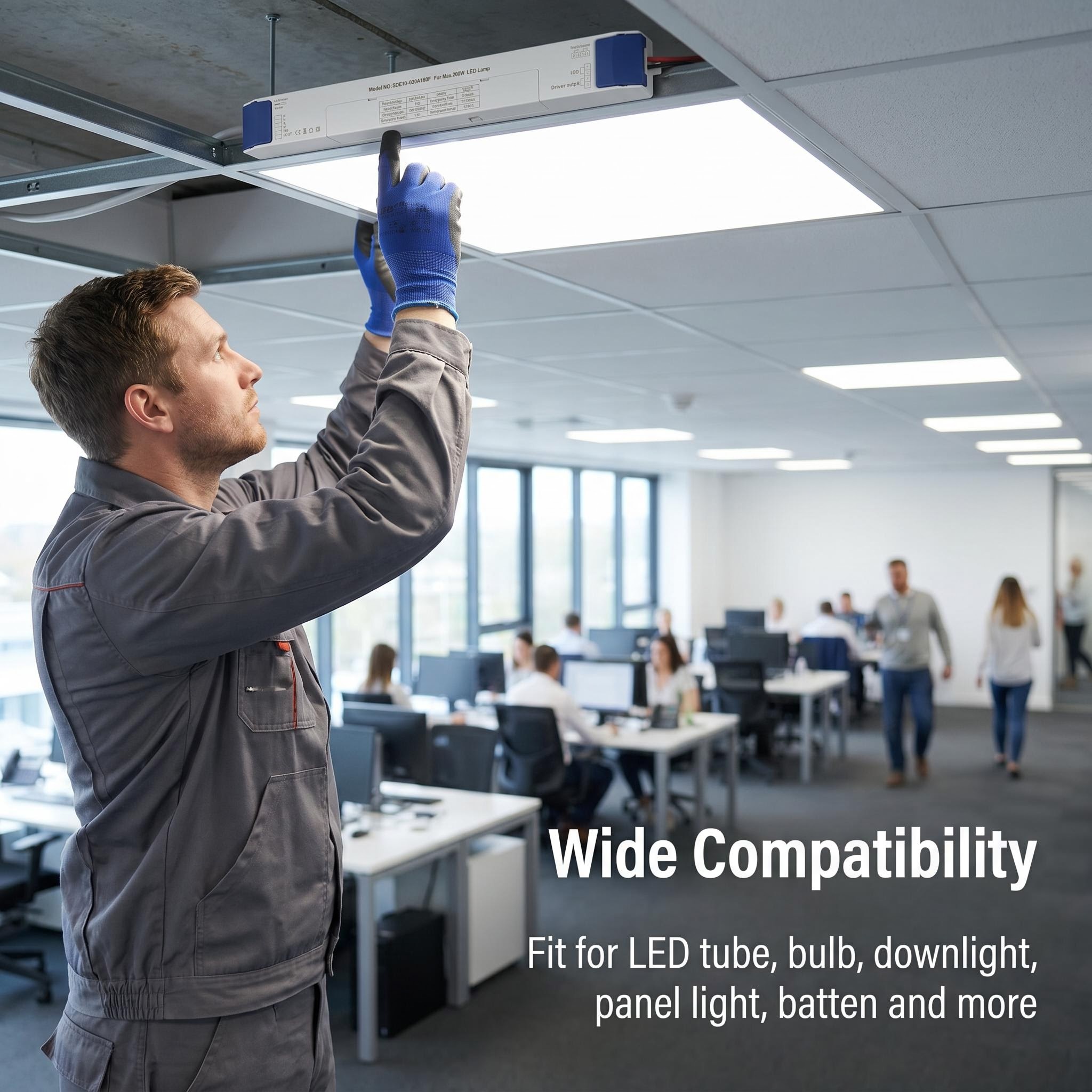

| Applications | LED tubes, panels, downlights, batten lights, linear lights |
| Stanard | EN60598-2-22 |

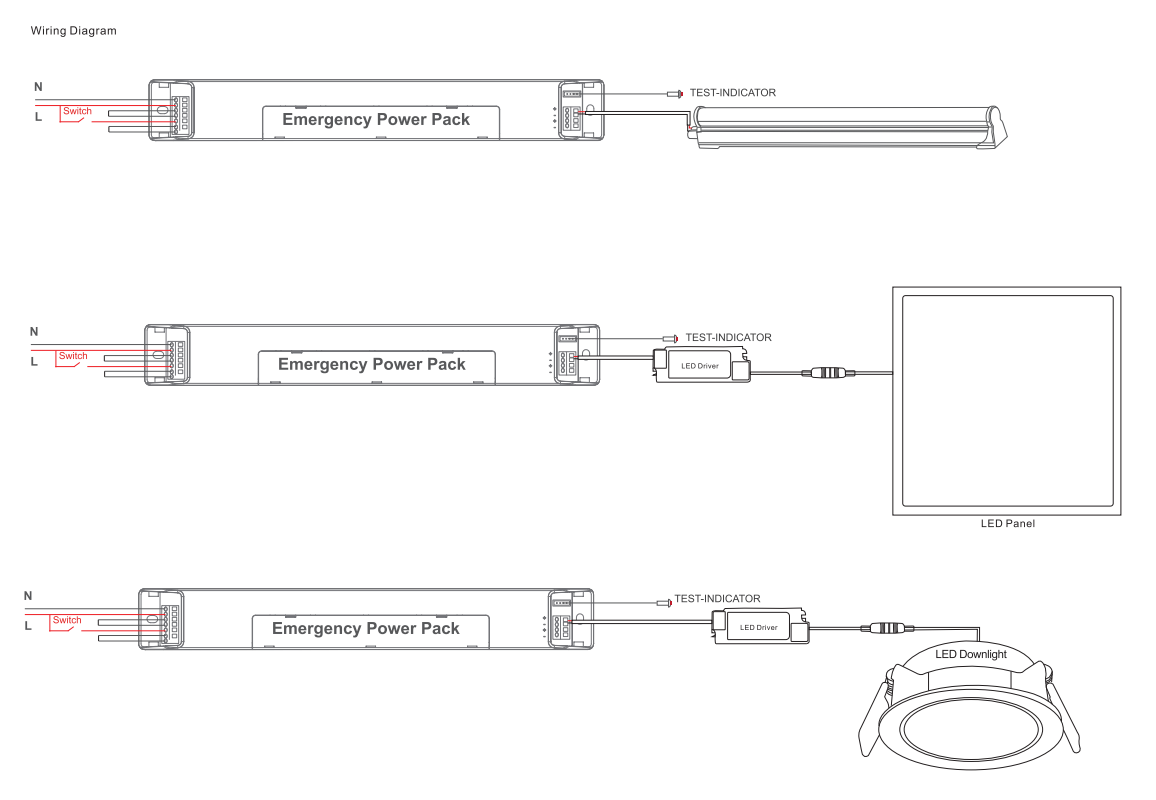

SDE10-030A180F Wiring diagram:
200W Universal Emergency Kit RFQ:
1.Q: Can the SDE10-030A180F be used with LED lights that have built-in drivers?
A: Yes. The SDE10-030A180F is specifically engineered to be compatible with all LED lights, featuring a wide output range of DC 10-400V that supports luminaires with both internal and external drivers.
2.Q: How does the Auto-test function benefit facility maintenance?
A: The Auto-test function automatically performs periodic checks on the battery and LED module health. This ensures the system complies with safety codes without requiring technicians to manually trigger tests for every individual fixture, saving significant time and labor.
3.Q: Is the battery easy to maintain over the product’s lifespan?
A: Absolutely. The kit uses a 6.4V 2Ah LiFePO4 battery designed for easy replacement. This ensures that once the battery reaches the end of its high-cycle life, it can be swapped out quickly without needing to replace the entire emergency module.
