Description

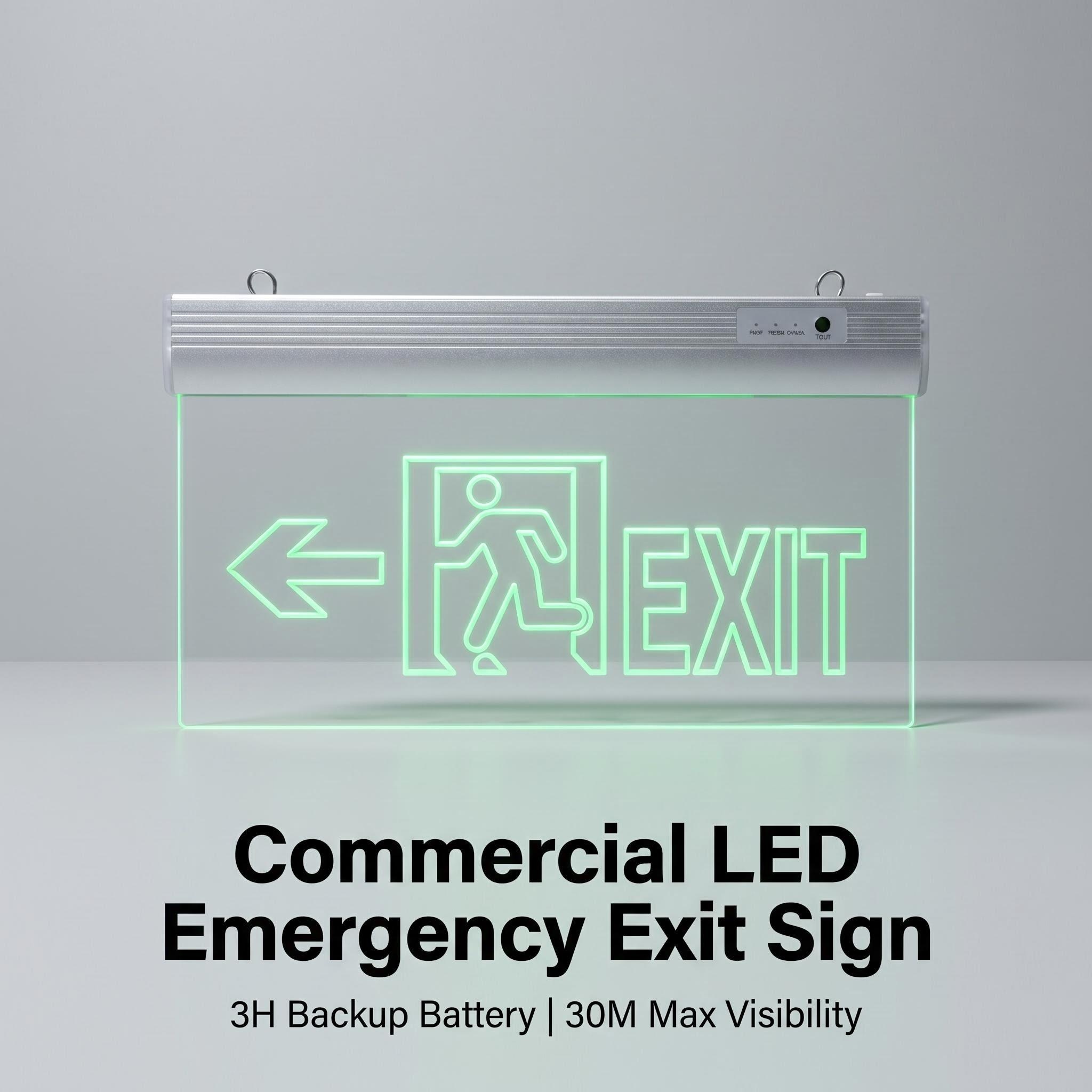

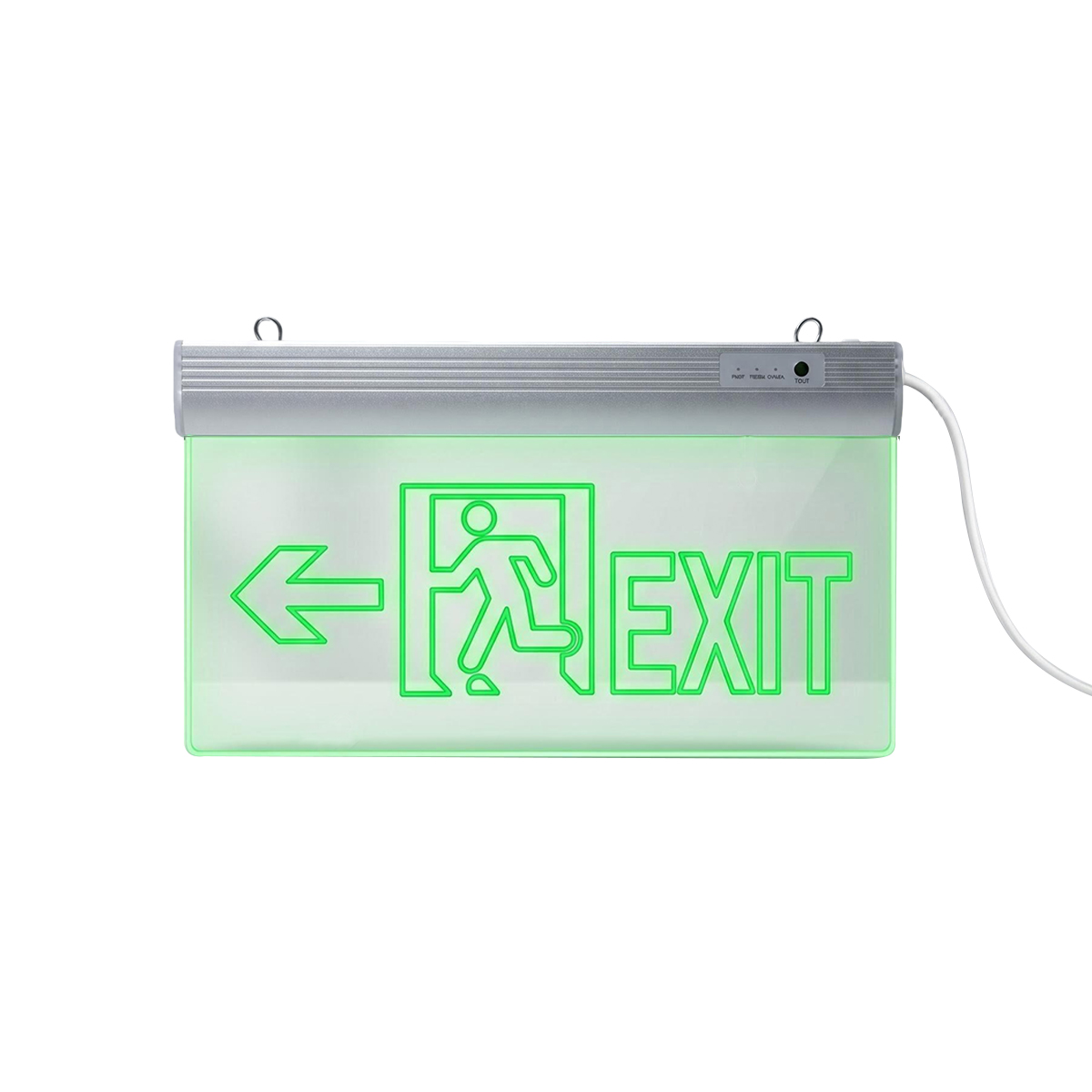

EXIT-LED-ES04B High-End Suspended Aluminum Fire Exit Light

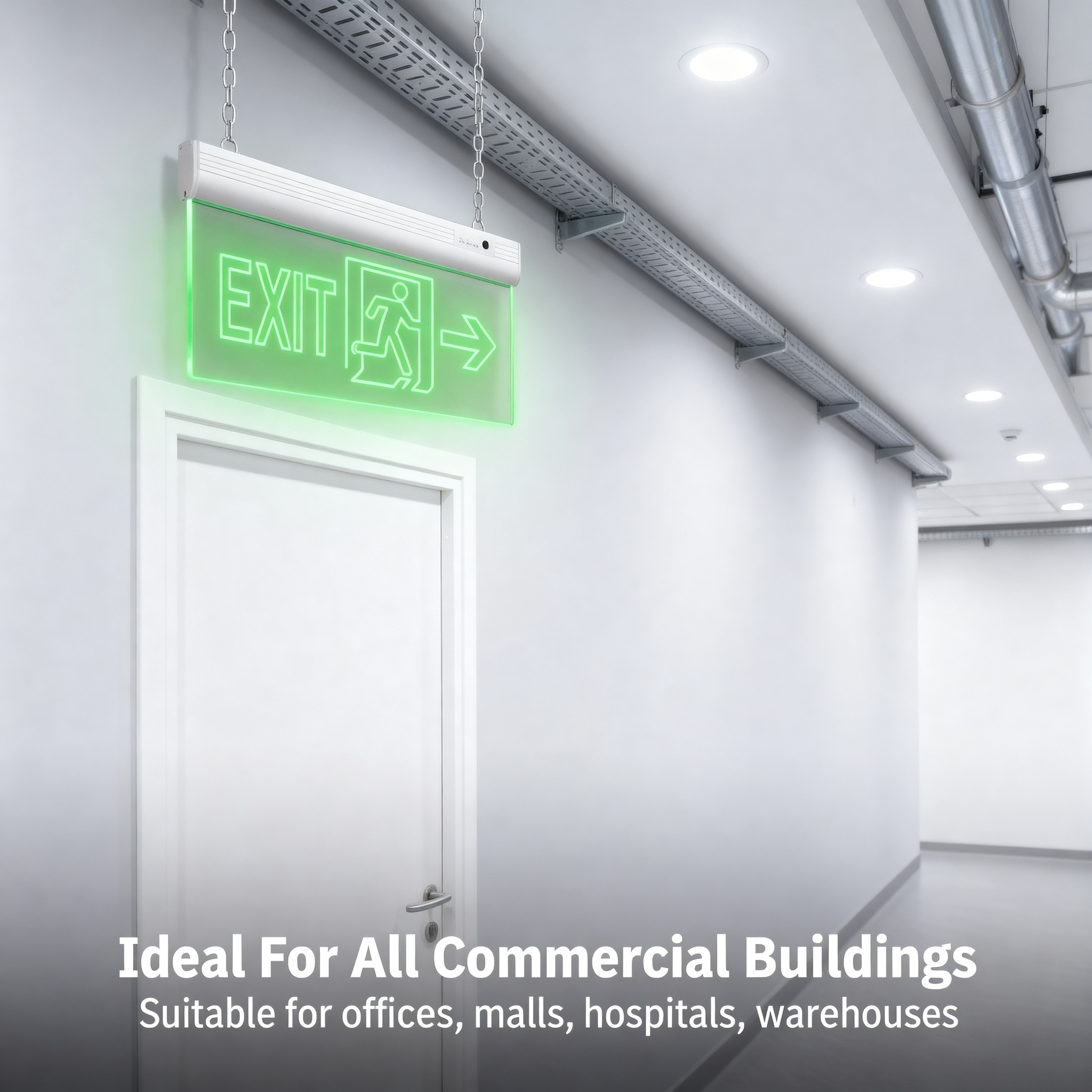

The EXIT-LED-ES04B is designed for premium commercial environments where safety performance must meet modern aesthetics. Its Aluminum and Acrylic construction provides a sophisticated, “floating” light effect that complements high-end interior designs. Specifically optimized for suspended hanging installation, it offers clear, unobstructed guidance in expansive architectural layouts.
Key Features：

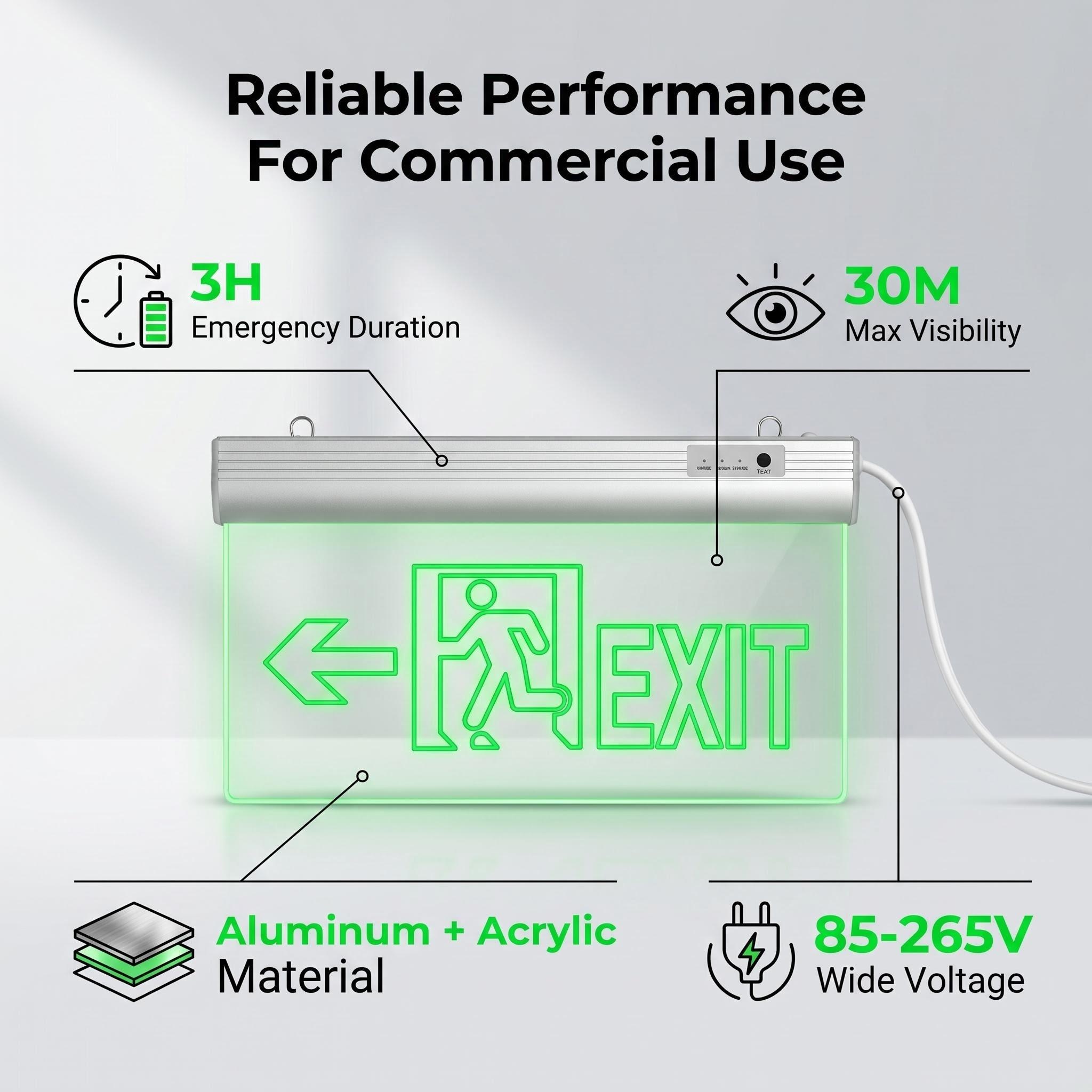

- Architectural Aluminum Build: The durable aluminum frame ensures superior heat dissipation and a professional finish suitable for premium commercial interiors.
- Exceptional 30M Visibility: Utilizing advanced edge-lit technology, the sign remains clearly visible from up to 30 metersaway, ensuring maximum safety in large halls.

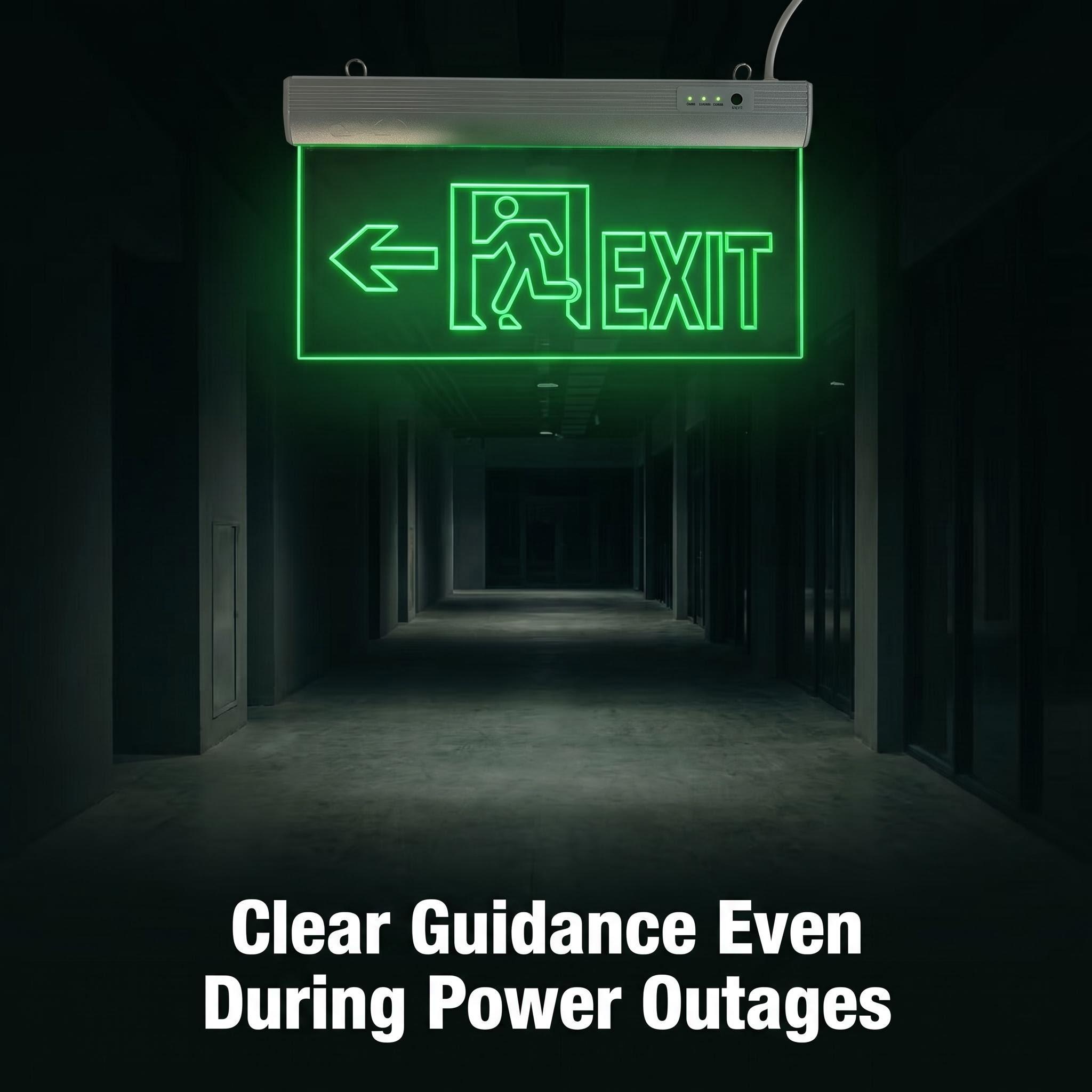

- High-Capacity Li-ion Backup: The 3.7V 2000mAh batteryprovides a consistent 3-hour emergency runtime, exceeding standard safety requirements.
- Global Voltage Driver: Supports a wide input range of AC 85-265V, making it compatible with power grids worldwide and protected against voltage spikes.
- Customizable Legend Options: To comply with various international fire codes, the exit legend can be fully customized with specific directional symbols or text.
- Wide Operating Temperature: Engineered to function reliably in temperatures ranging from -5℃ to45℃.
Technical Specifications:
| Model | EXIT-LED-ES04B |
| LED Power | 4W |
| Input Voltage | AC85-265V,50/60Hz |
| Color Temperature | 6000K |
| Battery Type | 3.7V 2000mAh Li-ion |
| Emergency Runtime: | ≥ 180 Minutes (3 Hours) |
| Installation | Suspended / Hanging |

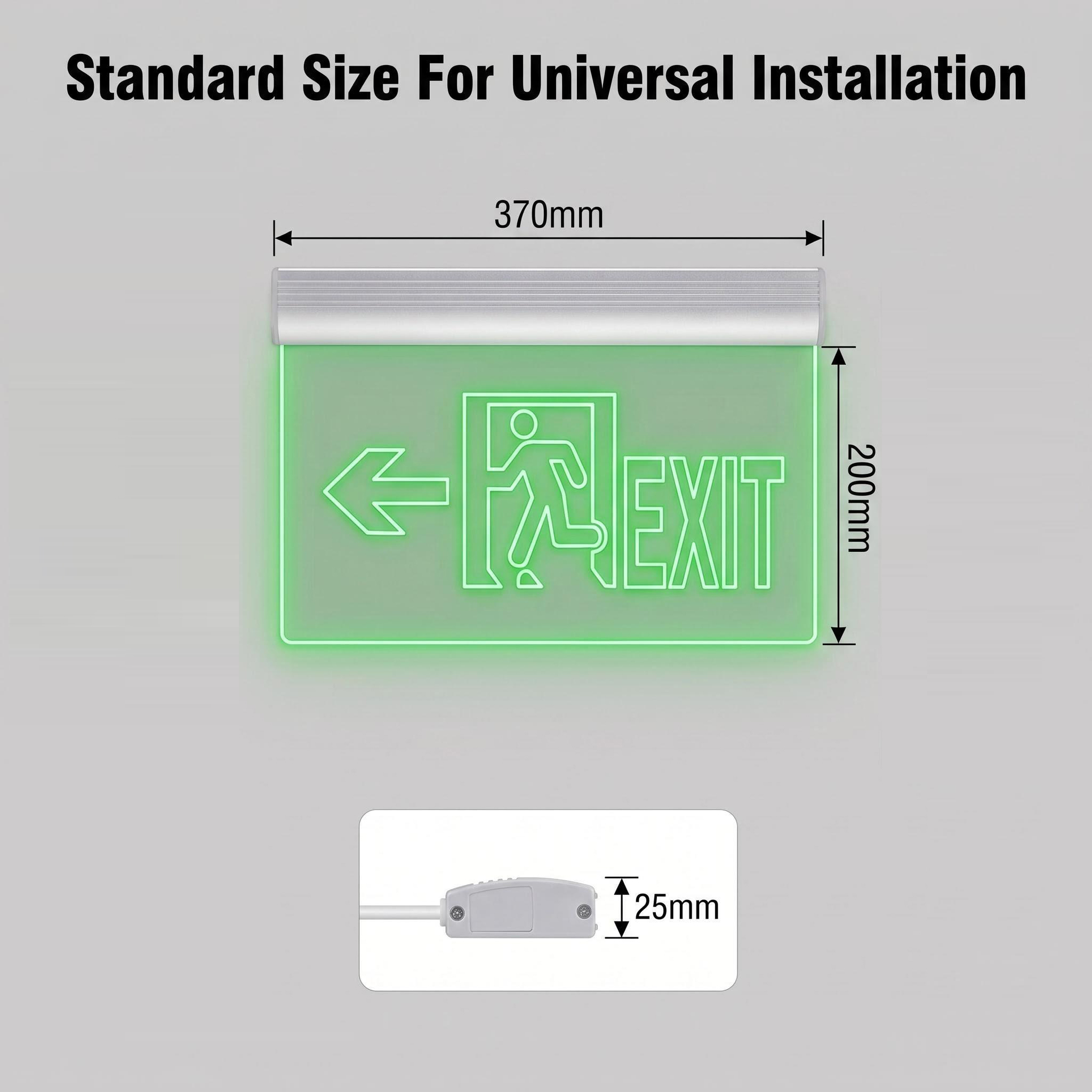

| Dimenstions | 370 * 200* 25 mm |
| Working Mode | Maintained |
| Charging Time | 24hours |
| Warranty | 3Years |
| Housing Color Options | Housing Color Options |
| Materials | Aluminum Housing + Acrylic Panel |
| Control | Test Button |
| IP Rating | IP20 |
| Operation temp | Operation temp |
| Stanard | EN60598-2-22 |
EXIT-LED-ES04B Suspended Aluminum Fire Exit Light RFQ:
1.Q: What makes the EXIT-LED-ES04B the best choice for high-end commercial projects?
A: The EXIT-LED-ES04B combines a high-quality Aluminum frame with a transparent Acrylic panel, offering a level of aesthetic elegance that standard plastic signs cannot match. Its 30m visibility and suspended mounting are specifically designed for large, modern spaces like shopping malls and luxury hotels, where both visual impact and strict safety compliance are required.
2.Q: How does the 2000mAh Li-ion battery improve safety reliability?
A: The high-capacity 2000mAh Li-ion battery ensures that the sign maintains its full 30m visibility brightness throughout the entire 3-hour emergency period. Unlike lower-capacity batteries that may dim significantly during discharge, this unit provides consistent, bright guidance until power is restored or the building is fully evacuated.
3.Q: Can the EXIT-LED-ES04B be used in international construction projects?
4.A: Yes. With a wide input voltage of AC 85-265V, the EXIT-LED-ES04B is globally compatible. Furthermore, its customizable legend feature allows it to be adapted to meet the specific fire safety signage regulations of different countries and regions.
