Description

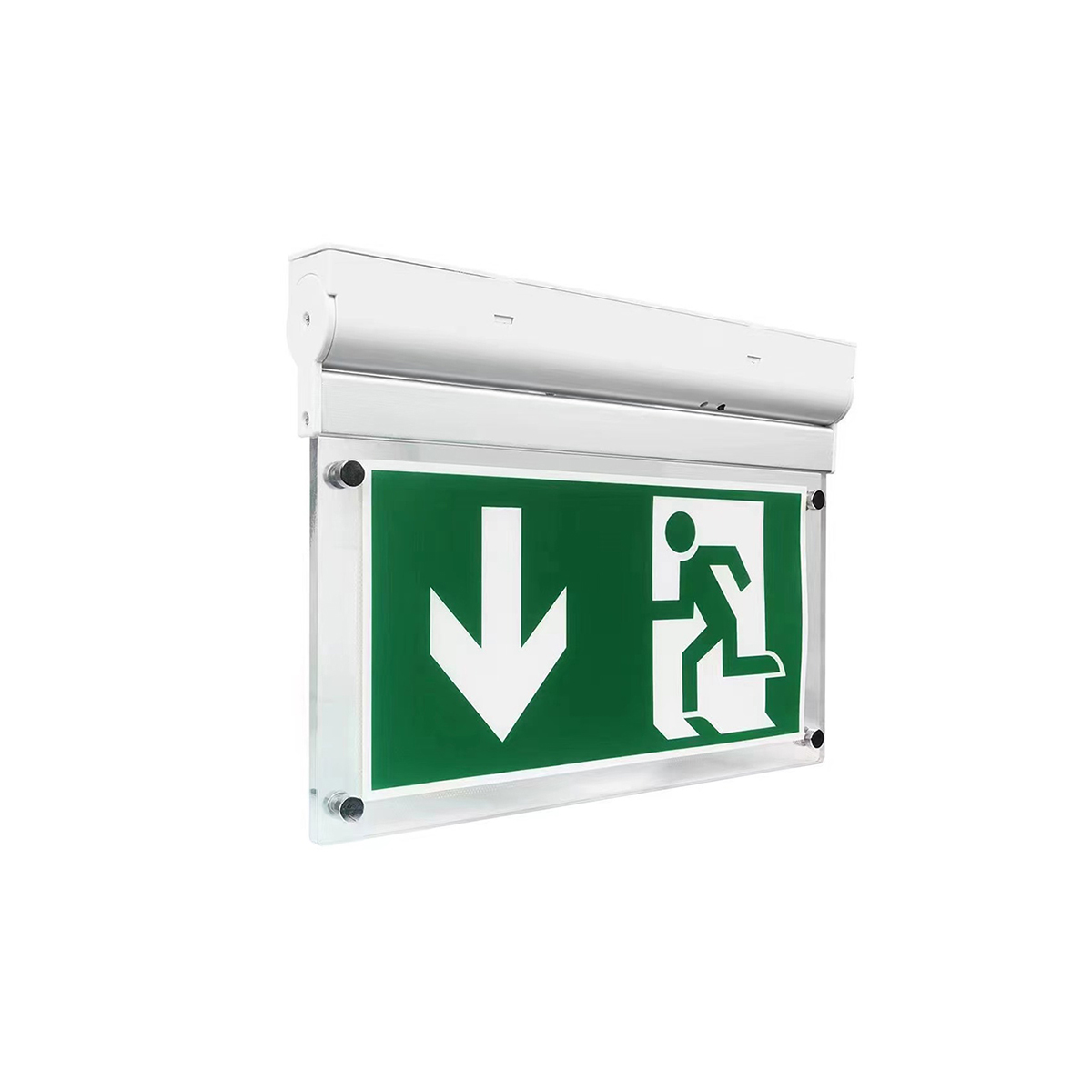

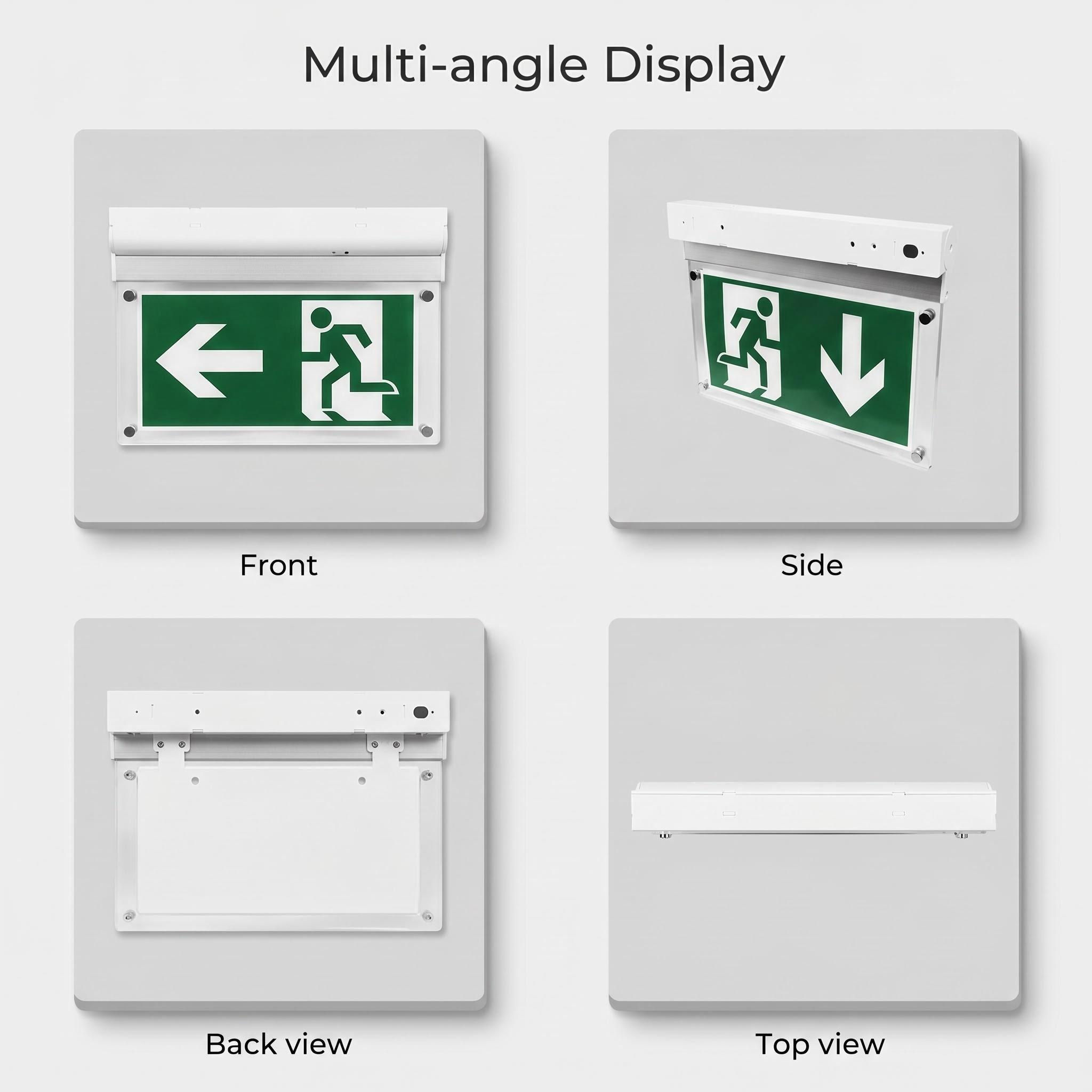

EXIT-LED-ES03: Architectural Acrylic LED Emergency Exit Sign
The EXIT-LED-ES03 combines high-end aesthetics with powerful safety performance. Its standout feature is the high-transparency acrylic panel, which utilizes edge-lit technology to create a uniform and brilliant glow. Unlike standard plastic signs, the ES03 is designed for architectural elegance and extreme clarity, ensuring occupants can identify exit routes from a distance of up to 30 meters.

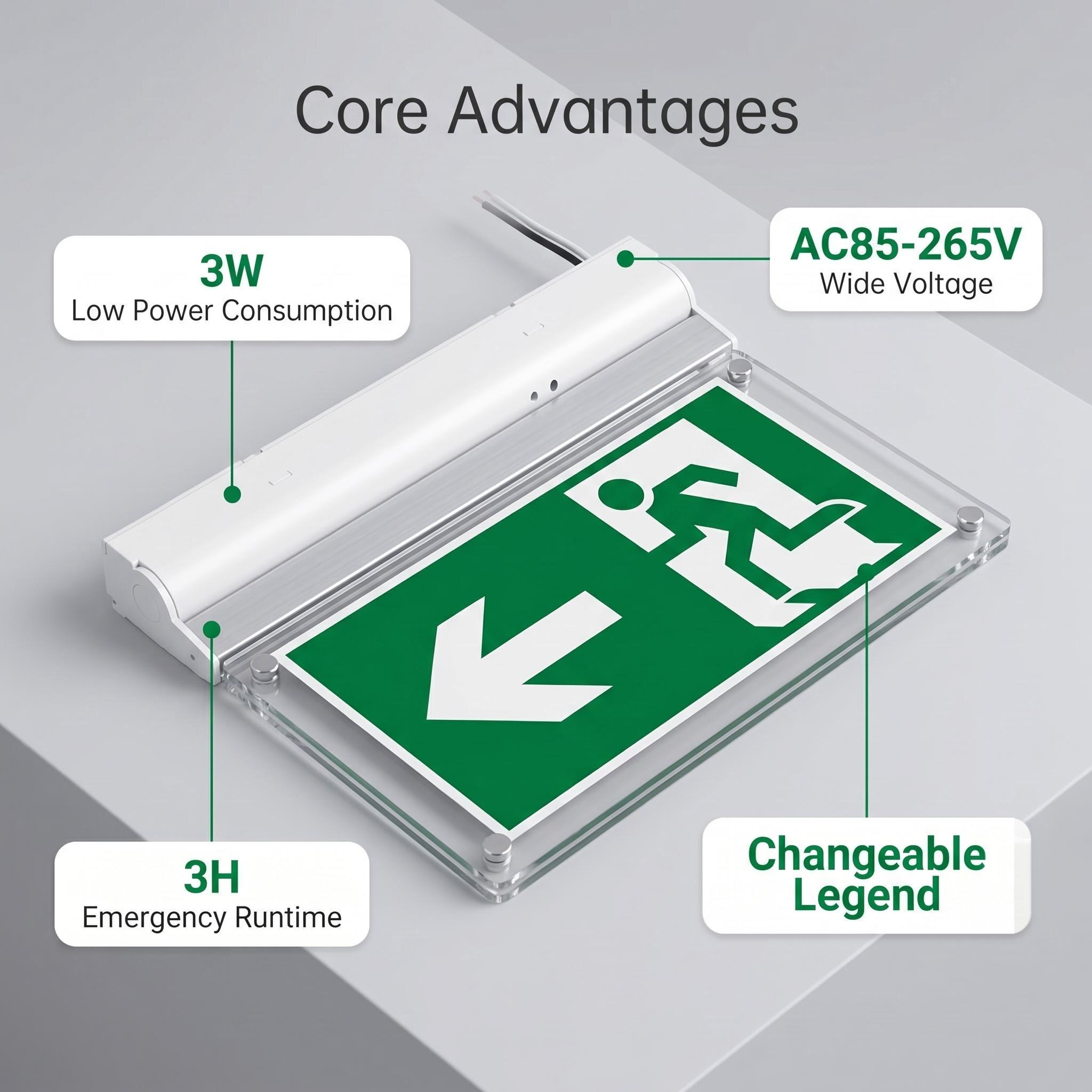

Key Features：
- Superior 30M Visibility:Engineered for large halls, lobbies, and long corridors, the bright LED output and premium LGP ensure safety compliance across expansive distances.
- Changeable Legend Design:The sign allows for easy legend replacement, enabling you to switch directional arrows (Left, Right, Double, or Exit) to meet specific floor plan requirements without replacing the entire unit.
- Architectural Acrylic LGP:Features a slim 8cm thick light guide panel made of high-quality acrylic, providing a sleek, modern look that complements premium interior designs.

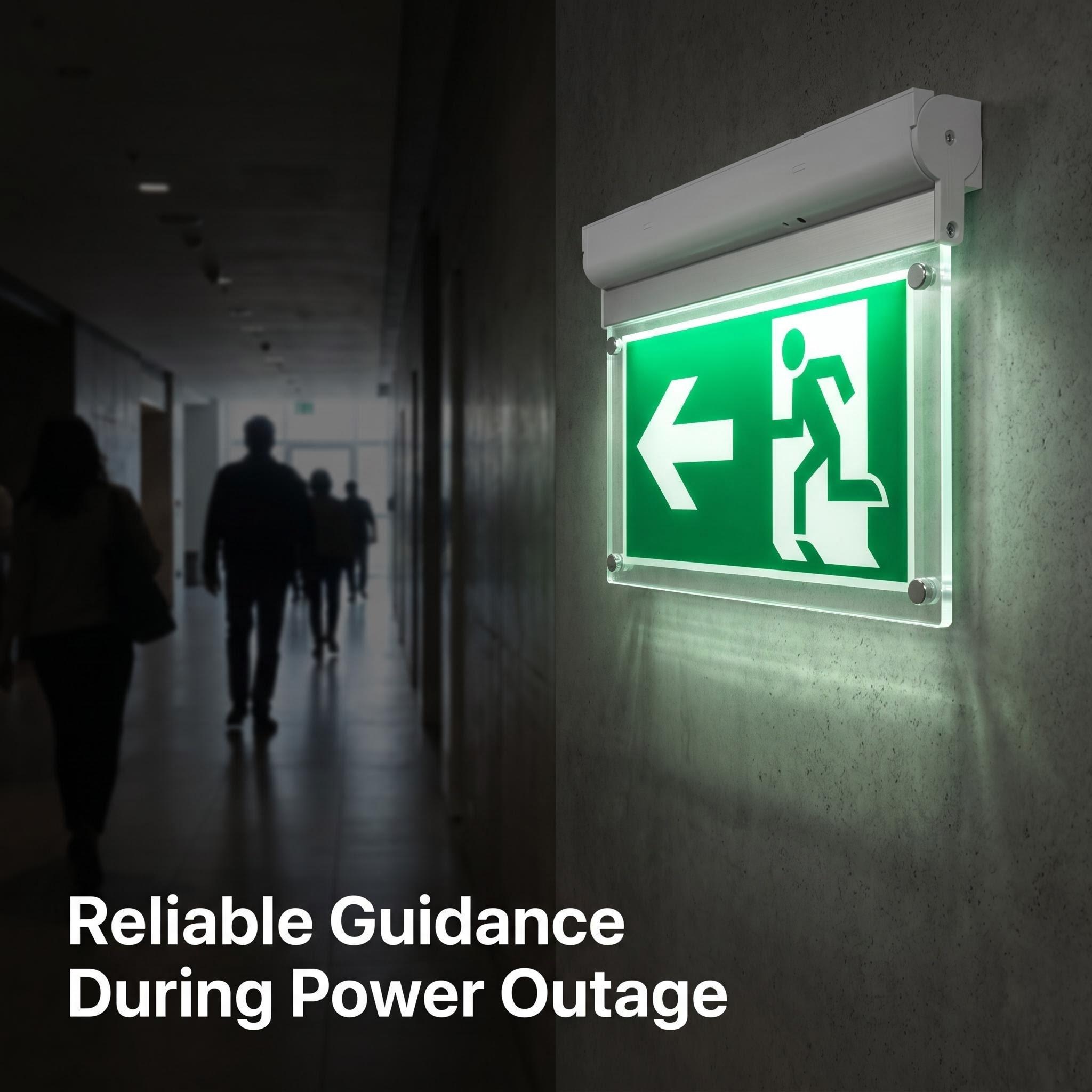

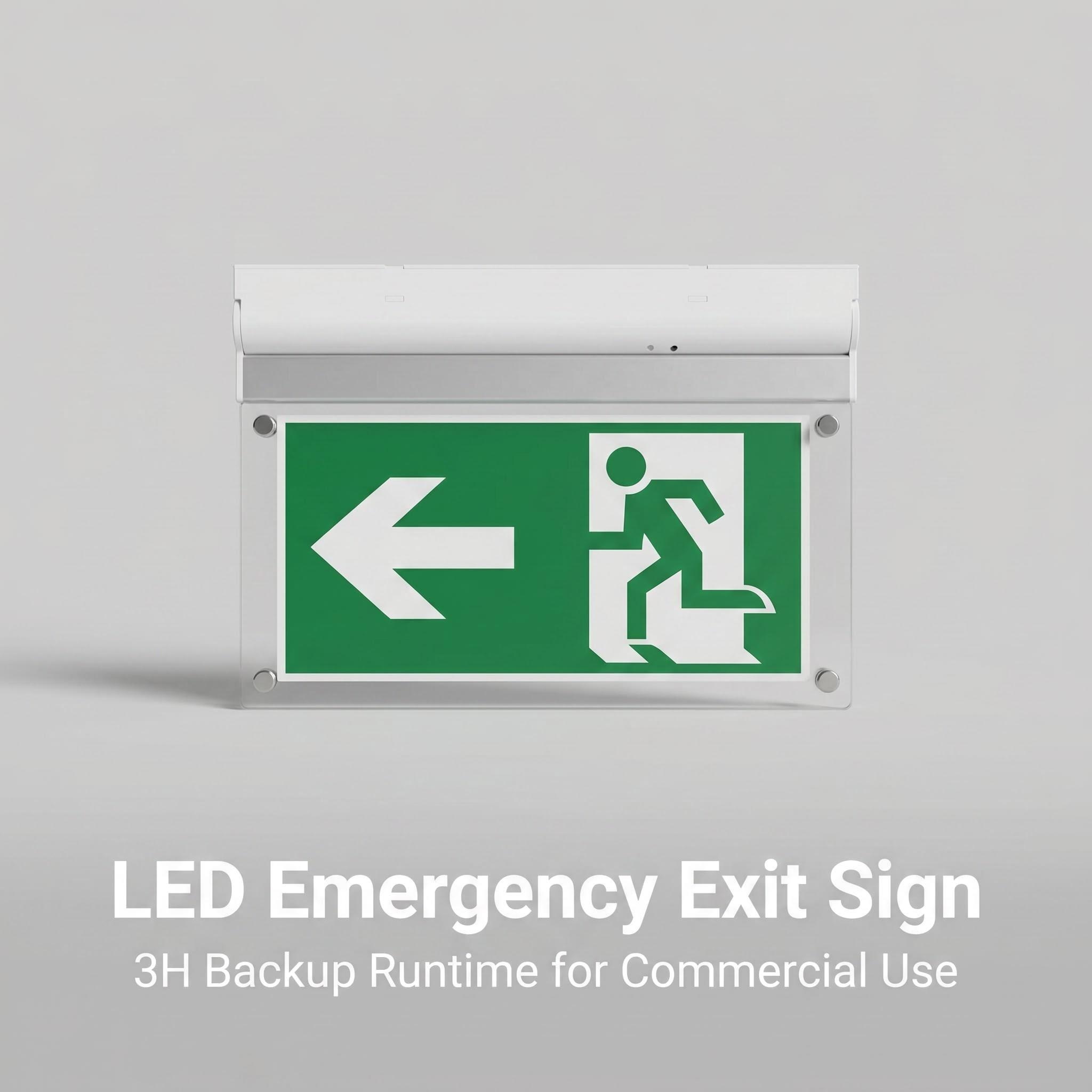

- 3H Emergency Reliability:Powered by a high-capacity 7V 2000mAh Li-ion battery, it guarantees a full 3 hours of operation during power failures.

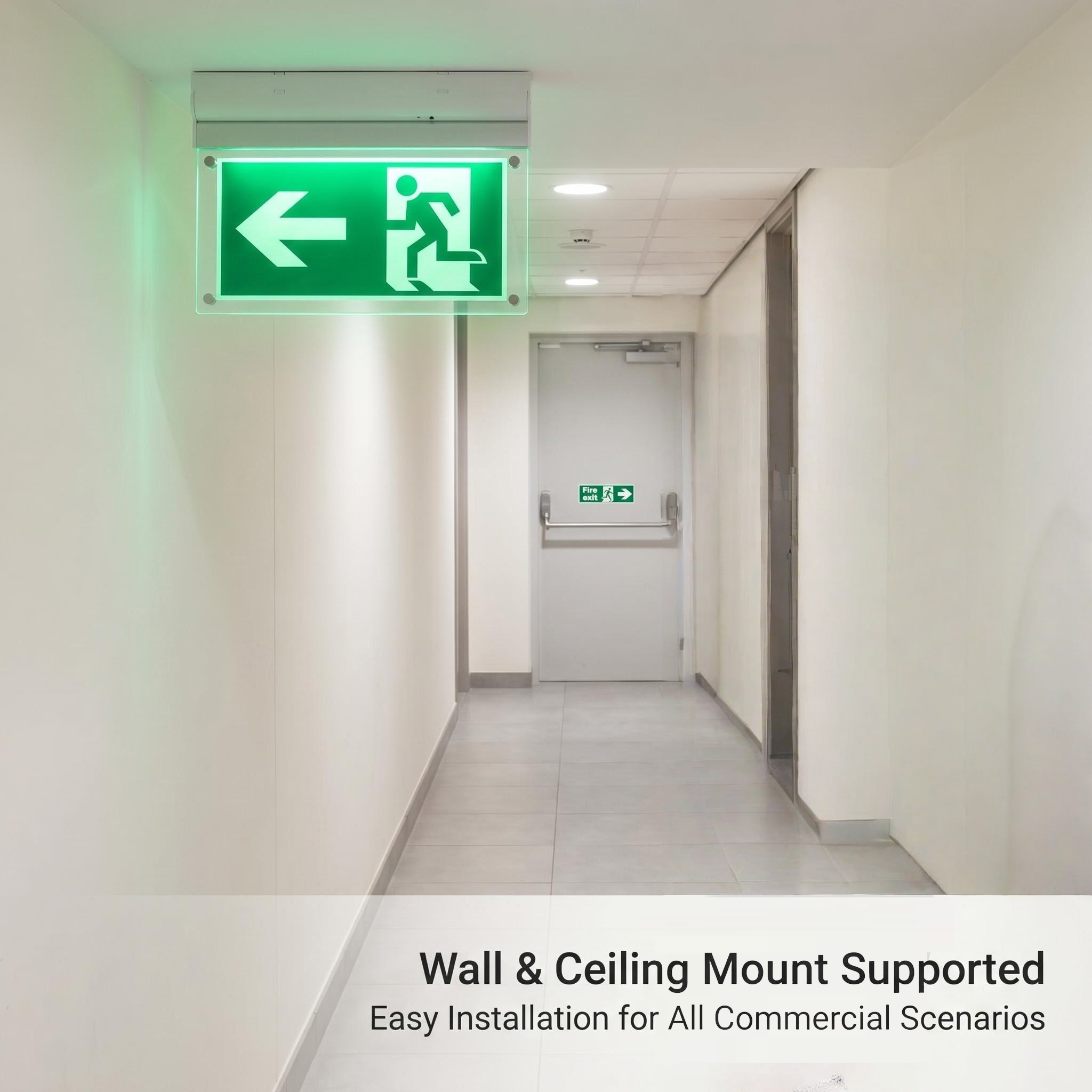

- Dual Installation Flexibility:The versatile bracket design supports both ceiling and wall mounting, making it adaptable to any structural environment.
- Energy Efficient & Wide Voltage:At just 3W, it minimizes daily operational costs while the AC 85-265V driver ensures stable performance globally.
Technical Specifications:
| Model | EXIT-LED-ES03 |
| LED Power | 3W |
| Input Voltage | AC85-265V,50/60Hz |
| Color Temperature | 6000K |
| Battery Type | 3.7V 1800mAh Li-ion |
| Emergency Runtime: | ≥ 180 Minutes (3 Hours) |
| Installation | Wall / Ceiling / Hanging |

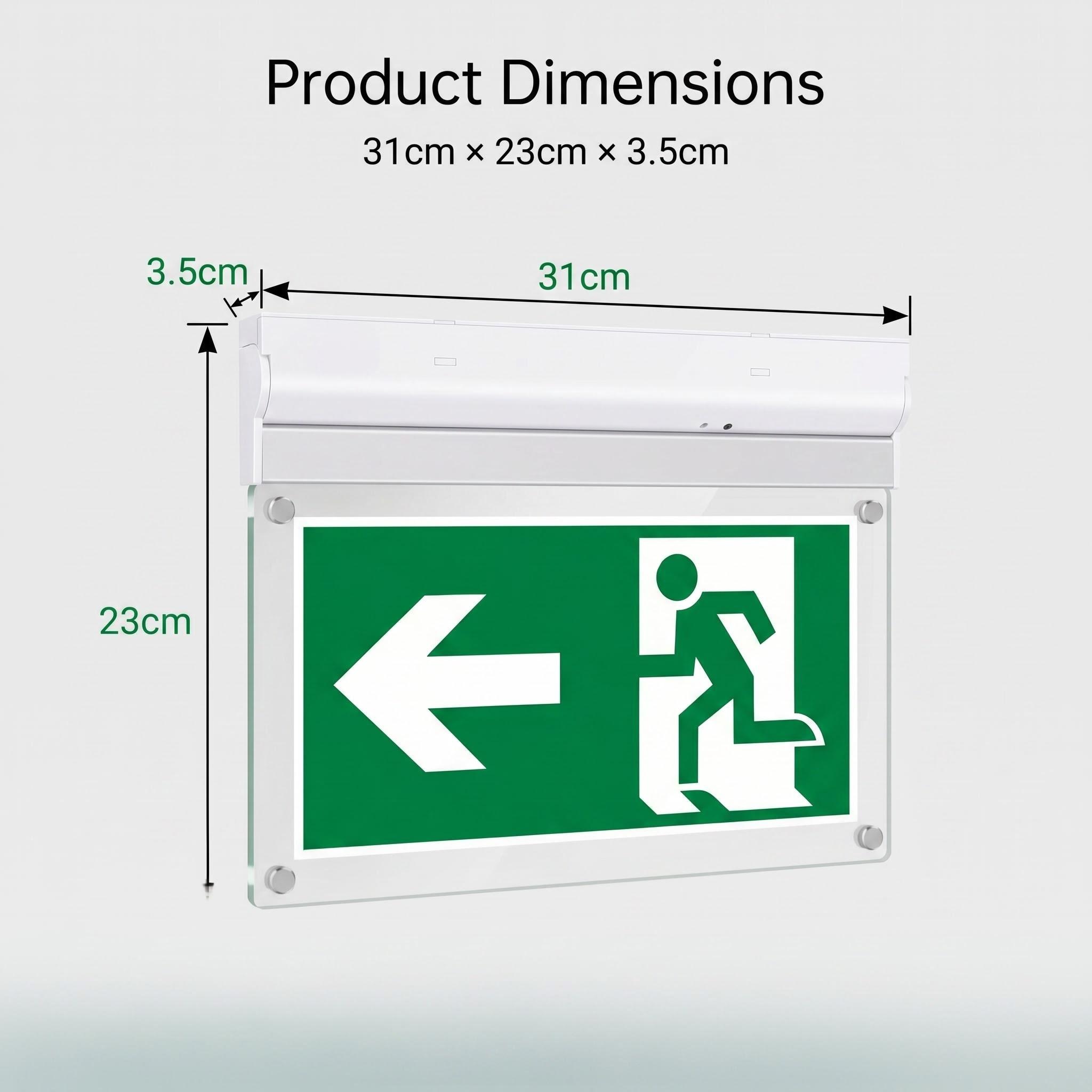

| Dimenstions | 310 * 230* 35 mm |
| Working Mode | Maintained |
| Charging Time | 24hours |
| Warranty | 3Years |
| Control | Test Button |
| IP Rating | IP20 |
| Stanard | EN60598-2-22
|
EXIT-LED-ES03 30M High-Visibility Acrylic Emergency Exit Sign RFQ
Q: Why is 30-meter visibility important for the EXIT-LED-ES03?
A: In large open spaces like airports, malls, or hotel lobbies, standard signs can be hard to see from a distance. The EXIT-LED-ES03 provides a 30-meter visibility distance, which is 50% more than common 20m models. This ensures that in an emergency, occupants can quickly and clearly find the nearest exit from further away, significantly improving evacuation efficiency and safety compliance.
Q: How does the “Changeable Legend” feature benefit contractors and project managers?
A: Project requirements often change during construction. With a changeable legend, you don’t need to worry about ordering the wrong directional arrows for specific rooms. You can stock a single model and simply swap the internal legend to point left, right, or straight as needed. This reduces inventory complexity and prevents project delays.

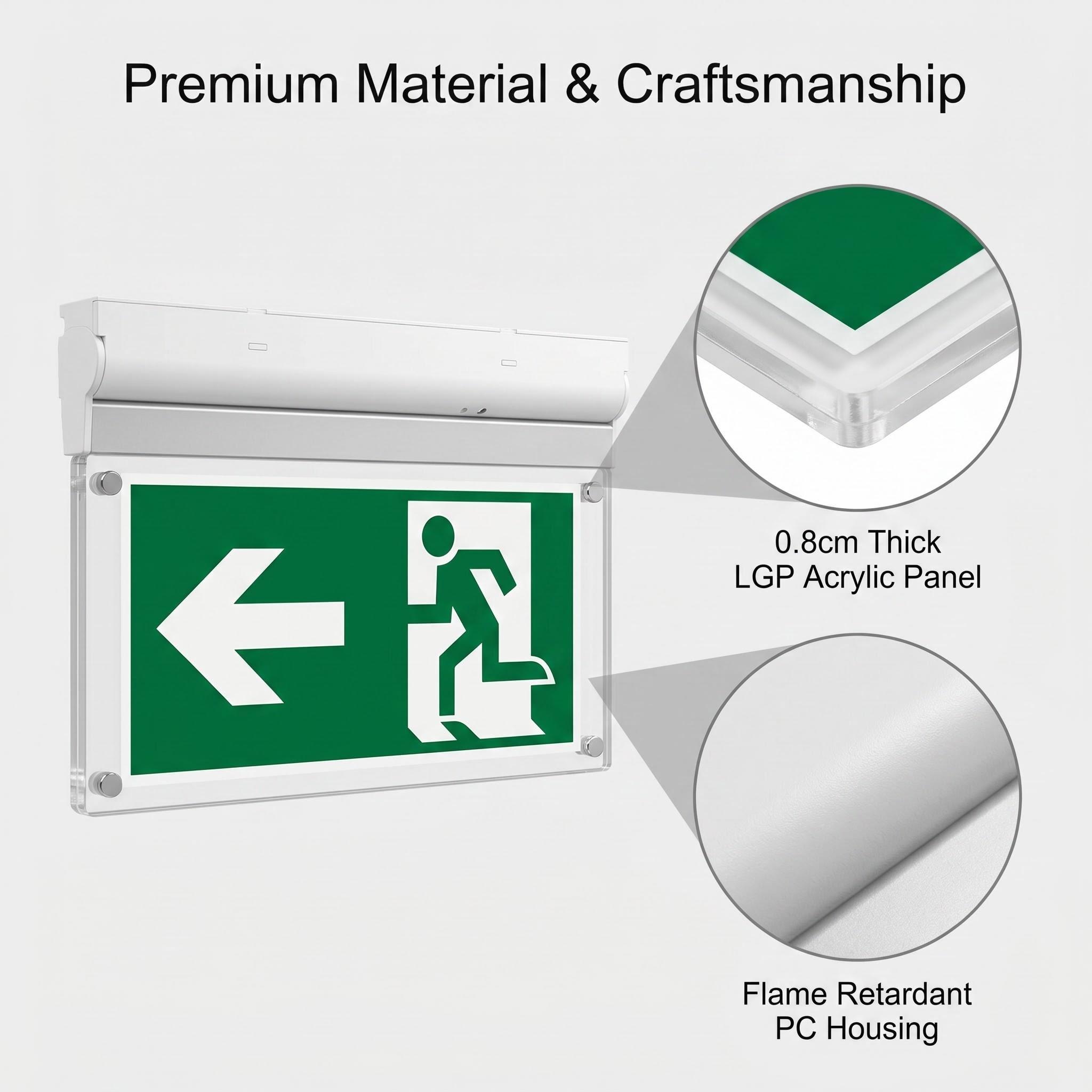

Q: What makes the LGP acrylic panel superior to standard plastic exit signs?
A: The 0.8cm acrylic light guide panel (LGP) in the EXIT-LED-ES03 provides much higher transparency and light uniformity. It avoids the “spotty” look of cheap LED signs, creating a professional, high-end glow. From a design perspective, the transparent acrylic looks far more modern and elegant, making it the preferred choice for architects working on luxury or high-profile projects.
