Description

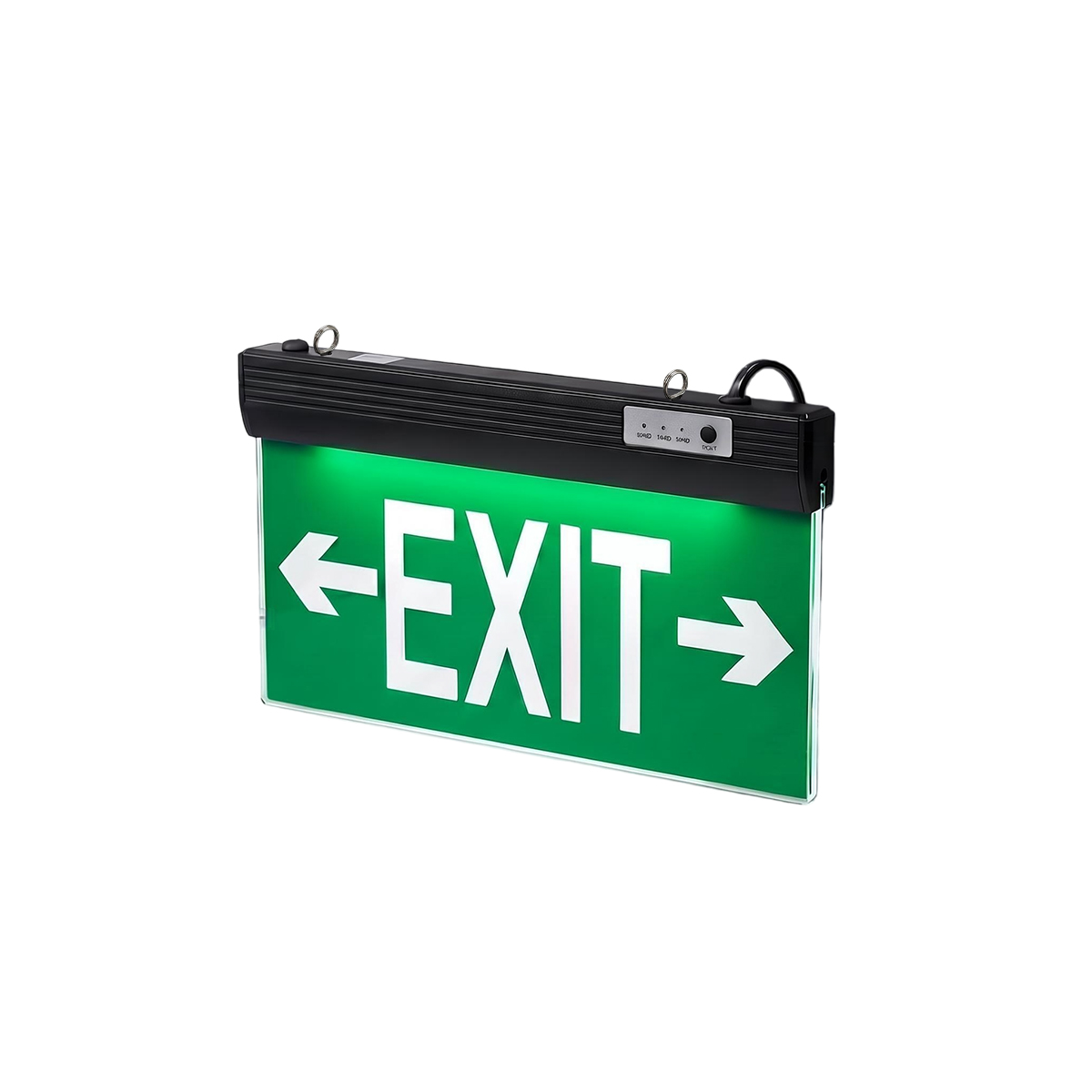

EXIT-LED-ES04A: Professional Suspended Aluminum Exit Lighting
The EXIT-LED-ES04A is the perfect blend of industrial durability and modern elegance. Its Aluminum and Acrylic construction ensures a premium look that complements high-end office spaces, hotels, and shopping centers. Designed for overhead suspended installation, it maximizes floor-to-ceiling visibility, providing clear guidance even in crowded or large-scale architectural settings.
Key Features：

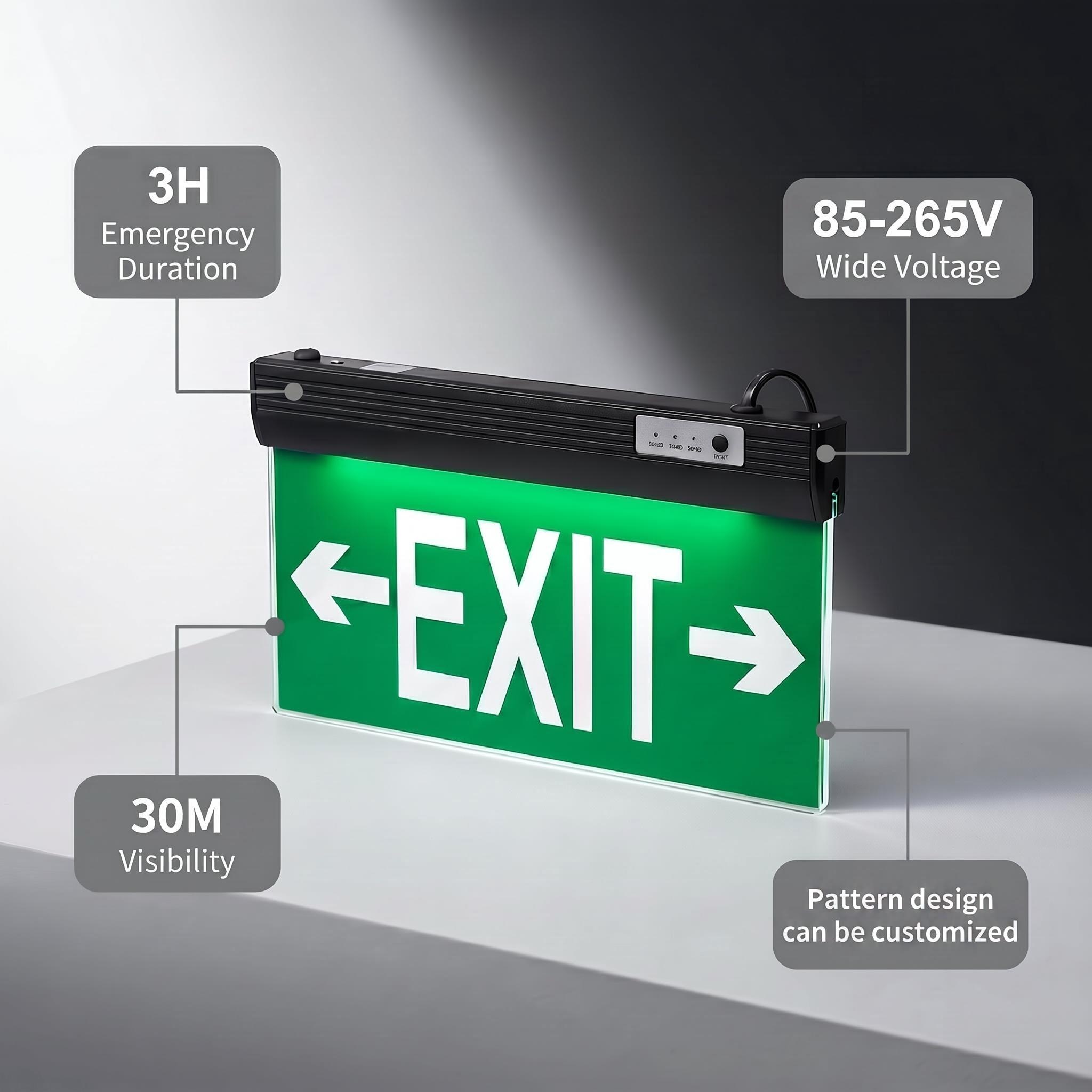

- Architectural Aluminum Housing:The high-quality aluminum frame provides superior strength and heat dissipation, available in professional Silver or Black finishes to match any interior palette.
- Maximum 30M Visibility:Engineered with high-efficiency LEDs and a clear acrylic panel, this sign remains visible from up to 30 meters away, ensuring compliance in expansive commercial halls.
- Long-Cycle Li-ion Backup:Equipped with a 7V 2000mAh Li-ion battery, delivering a consistent 3 hours of emergency light with faster charging and longer service life than standard batteries.
- Customizable Legends:To meet diverse international standards or specific project needs, the exit legend can be fully customized with specific symbols or languages.
- Global Voltage Support: The AC 85-265V driver protects the unit against voltage fluctuations, ensuring reliable operation on power grids worldwide.
- Wide Temperature Tolerance: Built to perform reliably in environments ranging from -5℃ to 45℃, suitable for varied climate-controlled commercial buildings.
Technical Specifications:
| Model | EXIT-LED-ES04A |
| LED Power | 4W |
| Input Voltage | AC85-265V,50/60Hz |
| Color Temperature | 6000K |
| Battery Type | 3.7V 2000mAh Li-ion |
| Emergency Runtime: | ≥ 180 Minutes (3 Hours) |
| Installation | Suspended / Hanging |

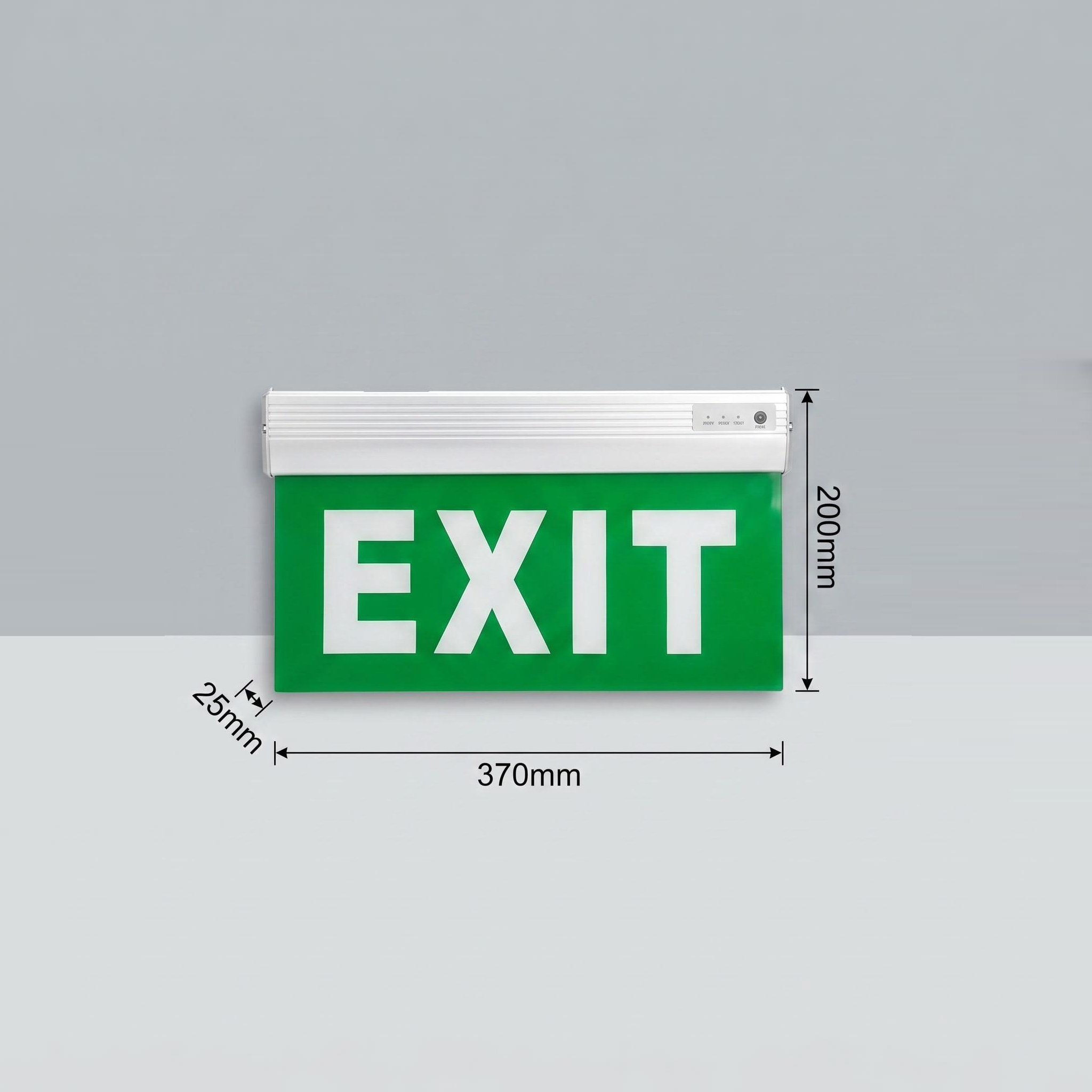

| Dimenstions | 370 * 200* 25 mm |
| Working Mode | Maintained |
| Charging Time | 24hours |
| Warranty | 3Years |
| Housing Color Options | Housing Color Options |

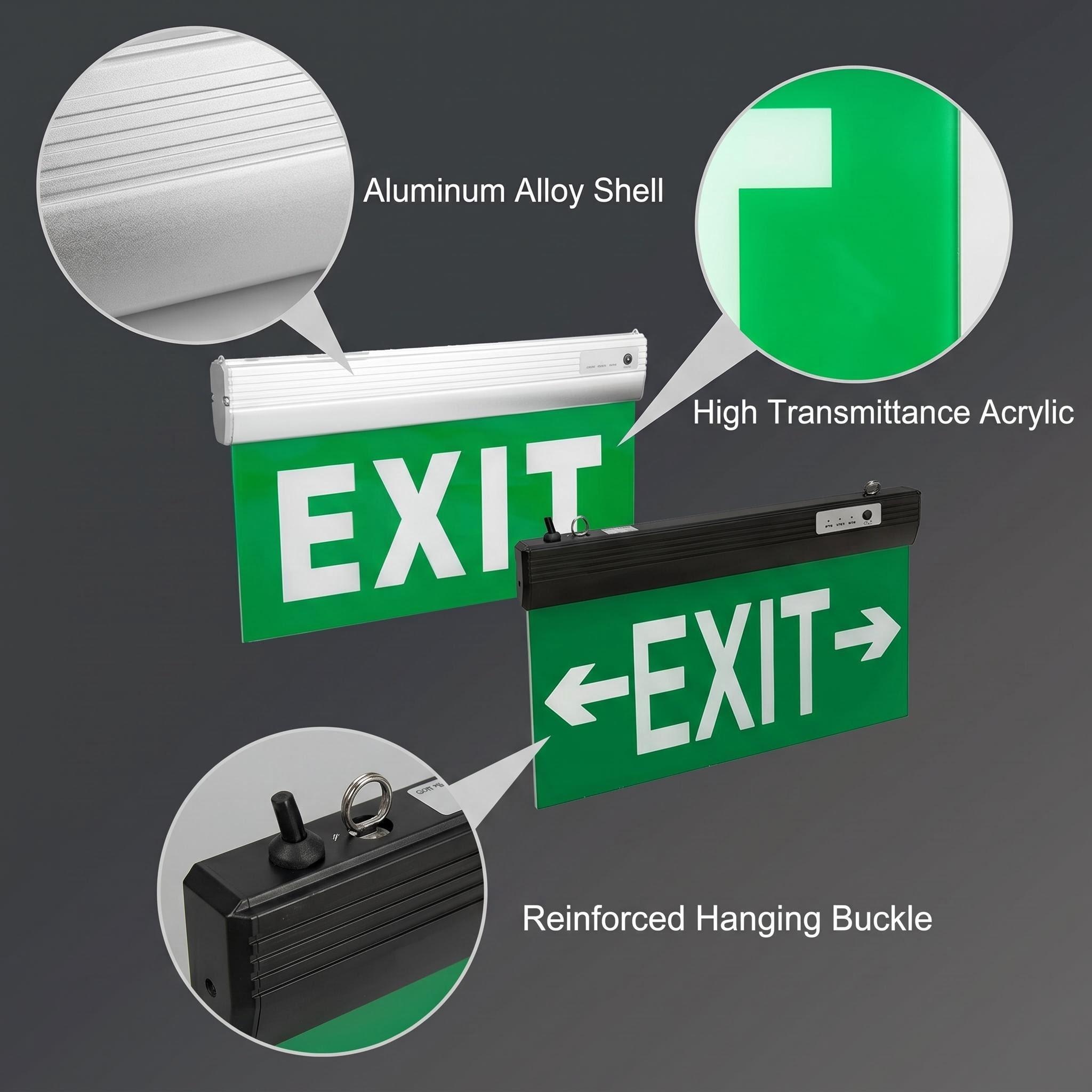

| Materials | Aluminum Housing + Acrylic Panel |
| Control | Test Button |
| IP Rating | IP20 |
| Operation temp | Operation temp |
| Stanard | EN60598-2-22 |
EXIT-LED-ES04A Premium Aluminum Suspended Exit Sign RFQ:
1.Q: Why is the Aluminum+Acrylic construction of the EXIT-LED-ES04A superior for commercial projects?
A: Commercial projects demand both durability and high aesthetics. The Aluminum housing of the EXIT-LED-ES04A offers far better impact resistance and a more professional finish than standard plastic models. Combined with the edge-lit Acrylic panel, it creates a modern “floating” light effect that satisfies both safety inspectors and interior designers.
2.Q: How does the 30m visibility distance benefit large open-plan office layouts?
A: In large offices or commercial lobbies, small 20m signs can be easily missed from the far end of the room. The 30m visibility of the EXIT-LED-ES04A ensures that occupants can identify the nearest exit route instantly, even from across a vast floor space. This high level of visibility is a critical factor in ensuring rapid, safe evacuation during an emergency.
3.Q: What is the advantage of the 2000mAh Li-ion battery in the EXIT-LED-ES04A?
A: The 2000mAh Li-ion battery provides a significantly higher energy density compared to smaller 1200mAh or 1800mAh versions. This extra capacity ensures that the sign maintains its full 30m brightness throughout the entire 3-hour emergency duration, whereas lower-capacity models may dim significantly as the battery drains.
