Description

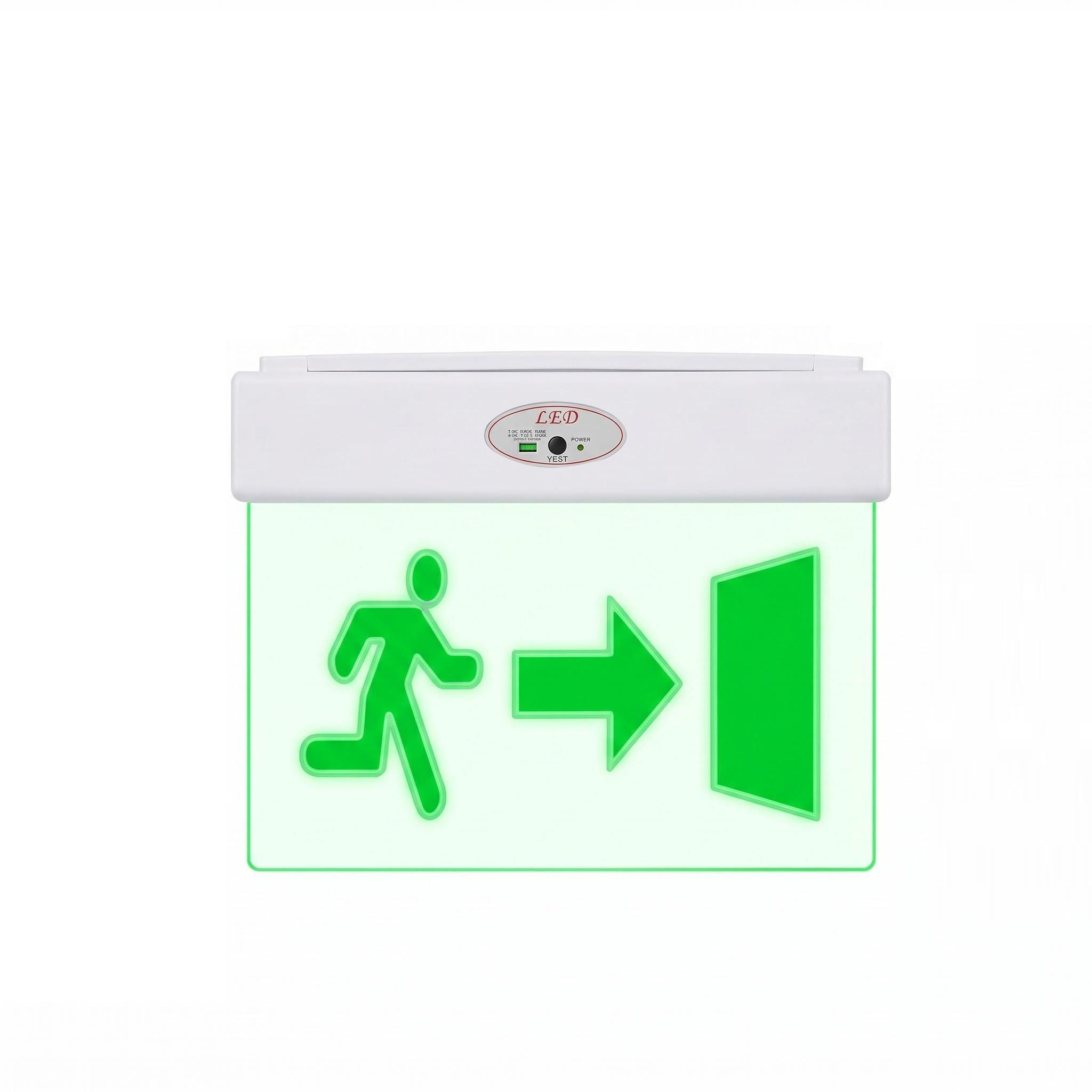

EXIT-LED-ES05 Universal Multi-Mount LED Emergency Exit Light
The EXIT-LED-ES05 is engineered to combine safety compliance with a minimalist aesthetic. The high-quality Acrylic panel ensures uniform light distribution, while the ABS housing maintains a lightweight and durable structure. Its primary strength lies in its 3-way installation flexibility, allowing it to adapt to any ceiling or wall configuration within a commercial building.
Key Features:
- Highly Versatile Installation: This single unit supports Ceiling Mounted, Suspended/Hanging, and Wall Surface Mounted configurations, reducing inventory complexity for contractors.
- Clear 20-Meter Visibility: Bright LEDs paired with a premium acrylic surface ensure that exit guidance is clearly visible from up to 20 meters away.
- Reliable Lithium Power: Powered by a 3.7V 1200mAh Li-ion battery, providing a stable 3-hour emergency runtimeduring power failures.
- Customizable Engraving: To meet specific project needs or international safety codes, the engraving pattern can be fully customized.
- Global Voltage Driver: Compatible with AC 85-265V, making it suitable for international power grids while protecting against voltage fluctuations.
- Industrial-Grade Reliability: Comes with a 3-year warrantyand is designed to operate in temperatures ranging from -5℃ to 45℃.
Technical Specifications:
| Model | EXIT-LED-ES05 |
| LED Power | 3W Main / 2W Emergency |
| Input Voltage | AC85-265V,50/60Hz |
| Color Temperature | 6000K |
| Battery Type | 3.7V 1200mAh Li-ion |
| Emergency Runtime: | ≥ 180 Minutes (3 Hours) |
| Installation | Wall / Ceiling / Hanging |

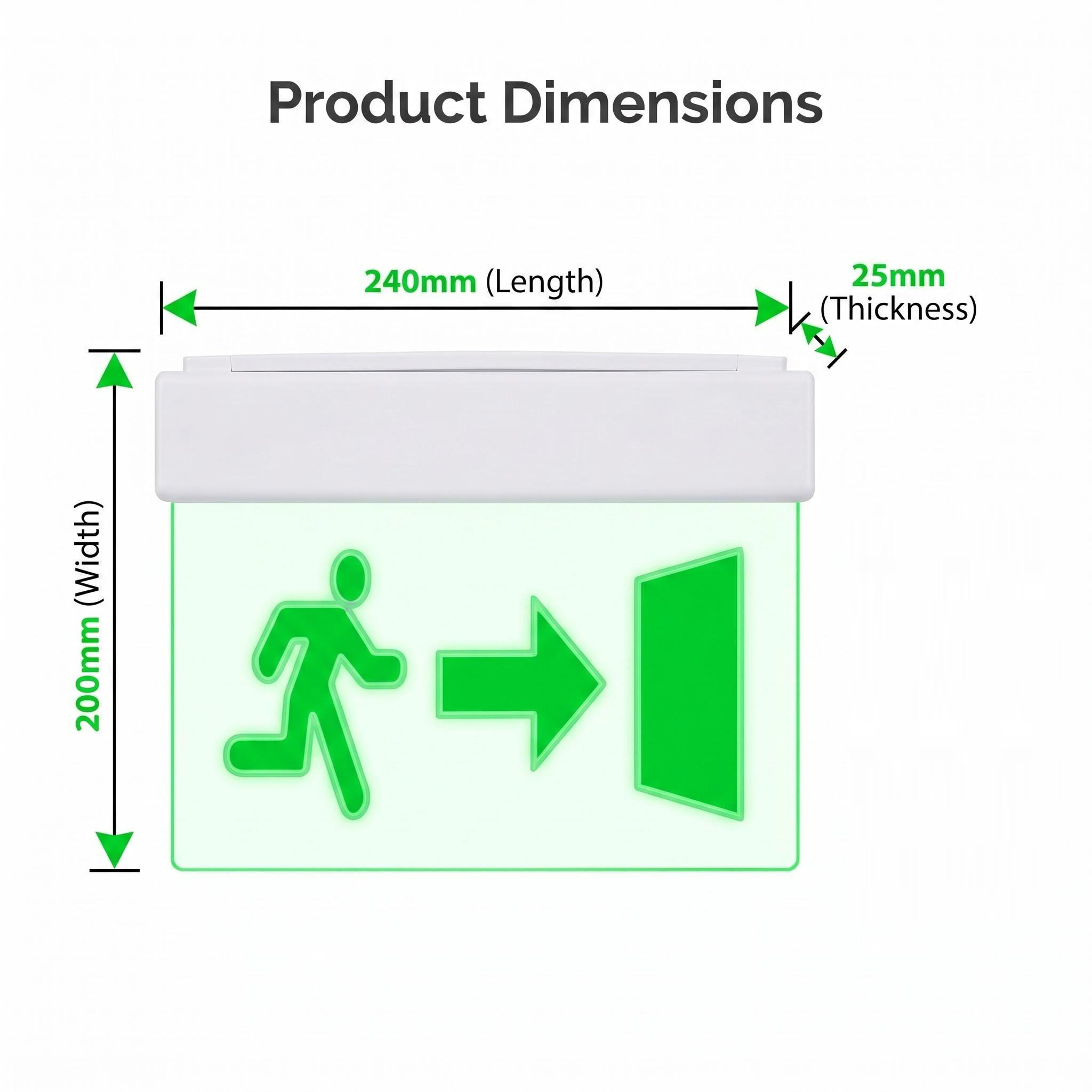

| Dimenstions | 240*200*25mm |
| Working Mode | Maintained |
| Charging Time | 24hours |
| Warranty | 3Years |
| Control | Test Button & ON/OFF Switch |
| IP Rating | IP20 |
| Stanard | EN60598-2-22 |
EXIT-LED-ES05 LED Emergency Exit Light RFQ:
1.Q: How does the installation flexibility of the EXIT-LED-ES05 benefit large commercial projects?
A: The EXIT-LED-ES05 is designed for maximum adaptability. In a large project, you may encounter different ceiling heights and wall types. Because this model supports ceiling, wall, and suspended mounting, you only need to order one SKU to cover the entire building’s exit lighting needs. This simplifies logistics and ensures a consistent aesthetic throughout the facility.
2.Q: Is the 3.7V 1200mAh Li-ion battery sufficient for 3-hour emergency lighting?
A: Yes. While the main power is 3W, the system is optimized to run at 2W in emergency mode. This power management allows the 1200mAh Li-ion battery to easily exceed the standard 3-hour emergency runtime while maintaining high visibility. Additionally, Li-ion technology offers a longer lifespan and faster charging than traditional Ni-Cd batteries.
3.Q: Can I use the EXIT-LED-ES05 in unheated areas like parking garages?
A: The EXIT-LED-ES05 has an operating temperature range of -5℃ to 45℃. This makes it suitable for indoor climate-controlled buildings and most sheltered environments like stairwells. However, with an IP30 rating, it is intended for indoor use and should be protected from direct water exposure or extreme humidity.
