Description
HM-BHD01 IP65 Heavy-Duty IP65 Emergency Bulkhead with LiFePO4 Technology

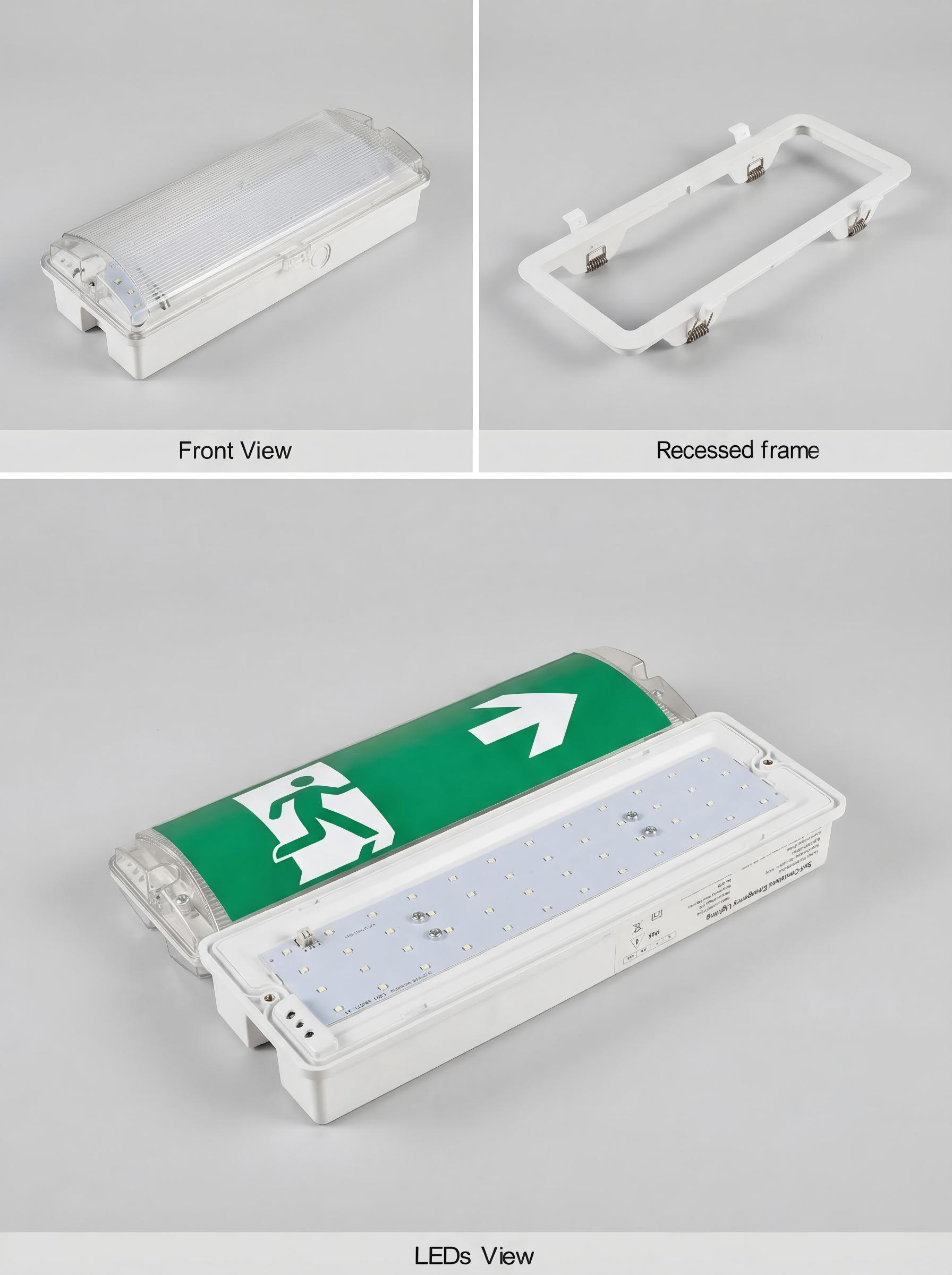

The IP65 Emergency Bulkhead is a robust lighting solution designed to provide high-visibility illumination in challenging environments. Whether installed in a parking garage, warehouse, or high-traffic commercial corridor, its 48-LED array delivers a bright 300lm emergency output to ensure safe evacuation.
Key Features:

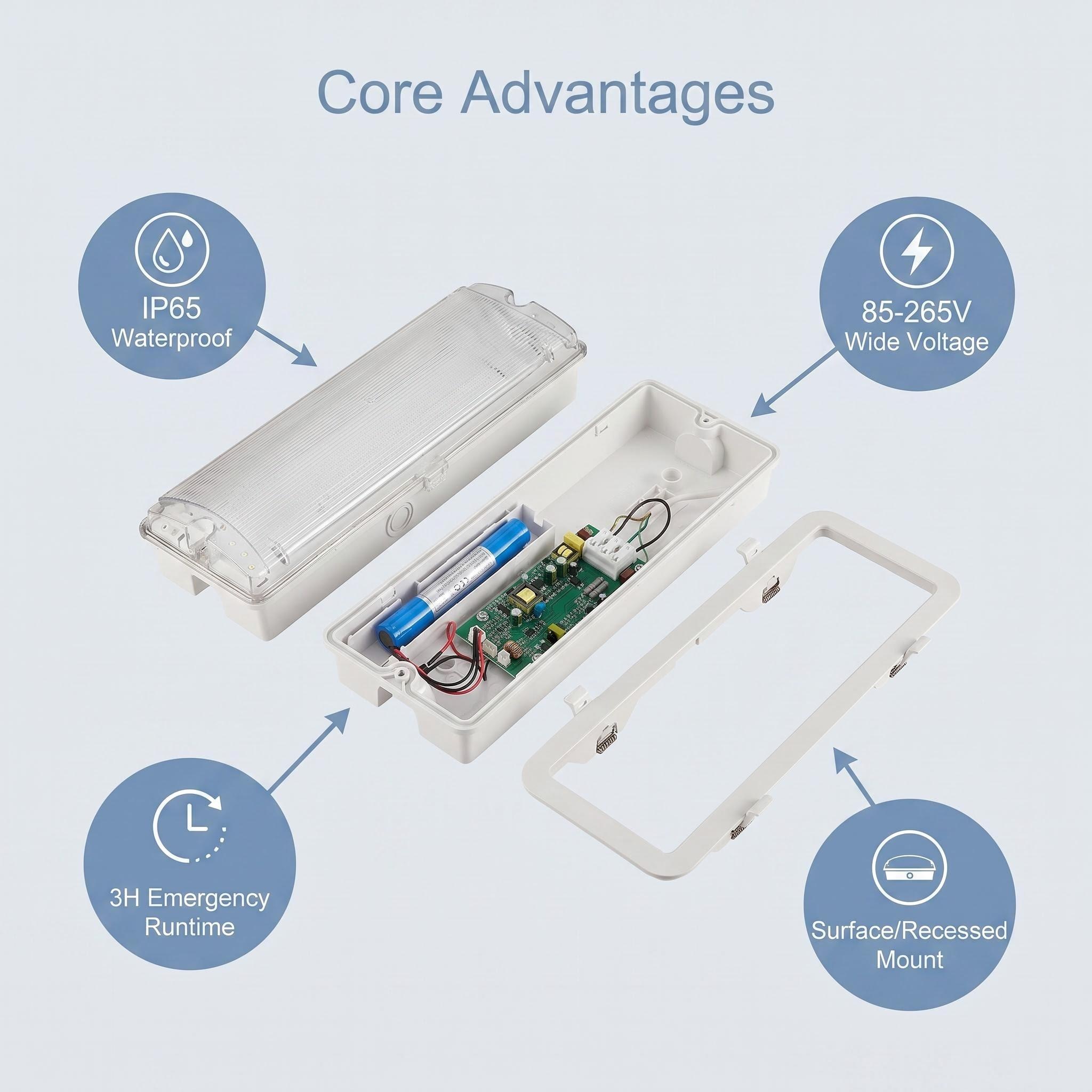

- Advanced LiFePO4 Power: Equipped with a 6.4V 1800mAh LiFePO4 battery, which offers superior thermal stability, faster charging, and a significantly longer service life compared to traditional Ni-Cd batteries.
- High Performance & Efficiency: Operates at 8W main powerand switches to 4W emergency power to optimize energy use while maintaining high brightness.

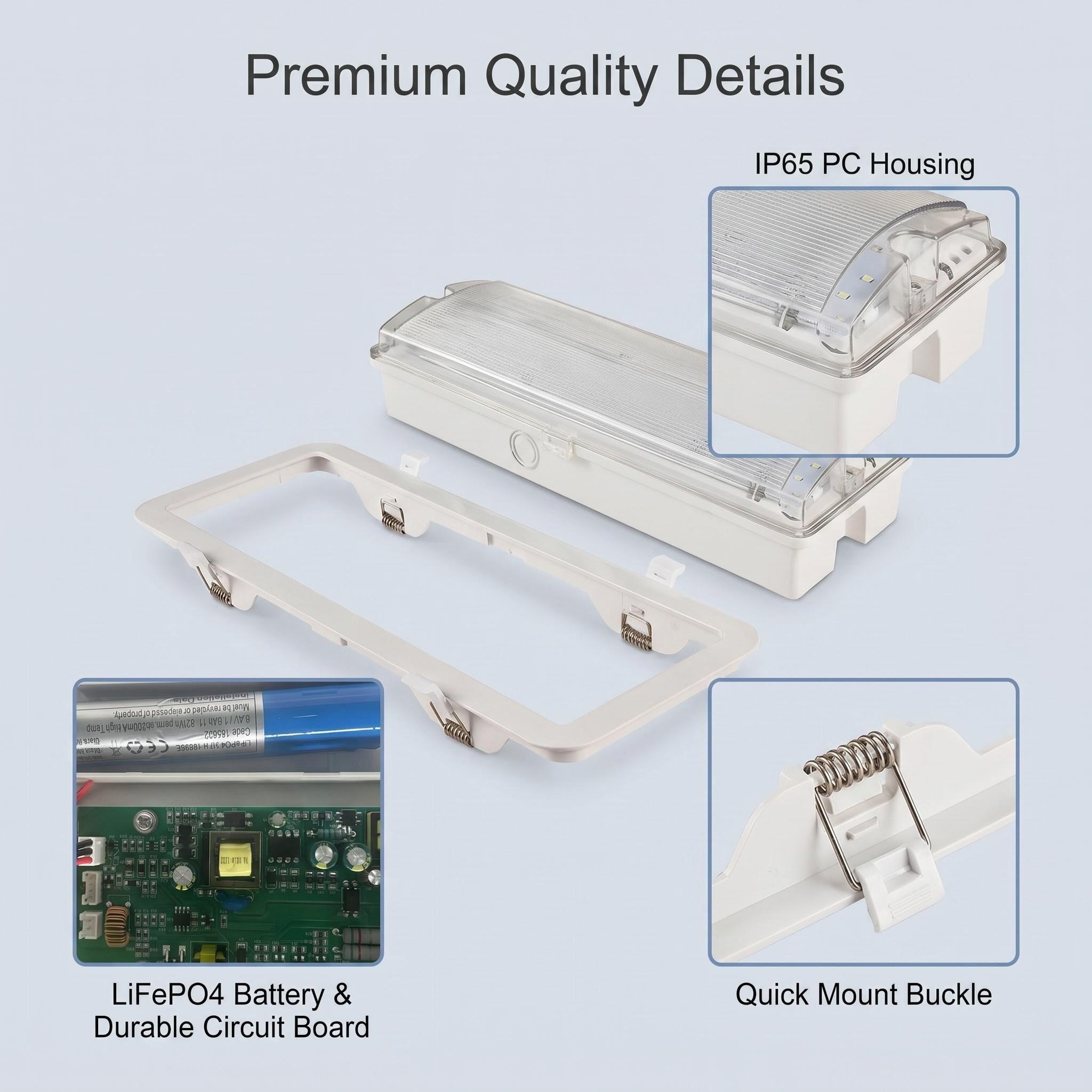

- Weatherproof & Durable: Constructed from high-impact PC (Polycarbonate) materialwith an IP65 rating, providing total protection against dust and low-pressure water jets from any direction.
- Dual Operation Modes: Can be wired for either Maintained(always on) or Non-Maintained (only on during power failure) operation to suit various building requirements.

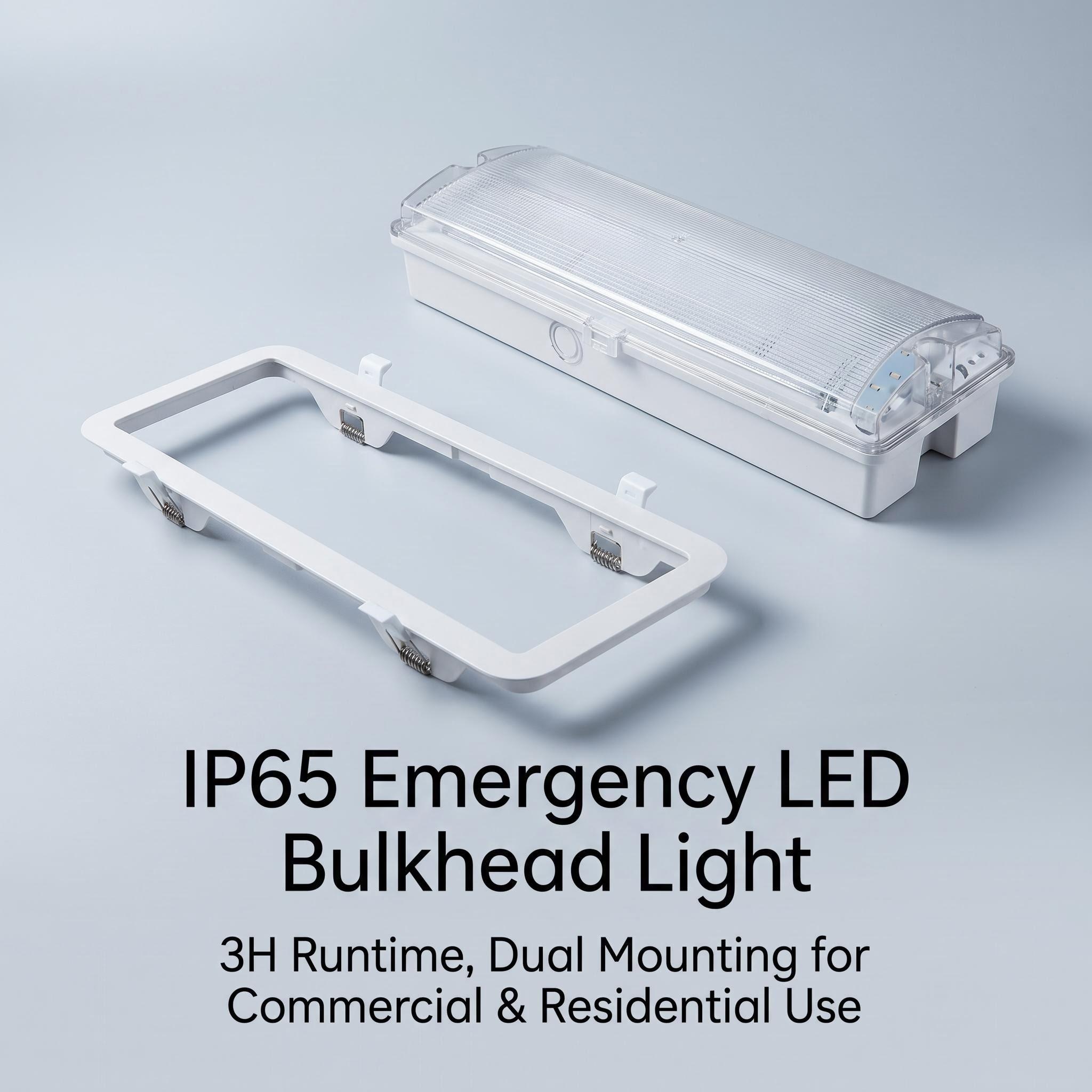

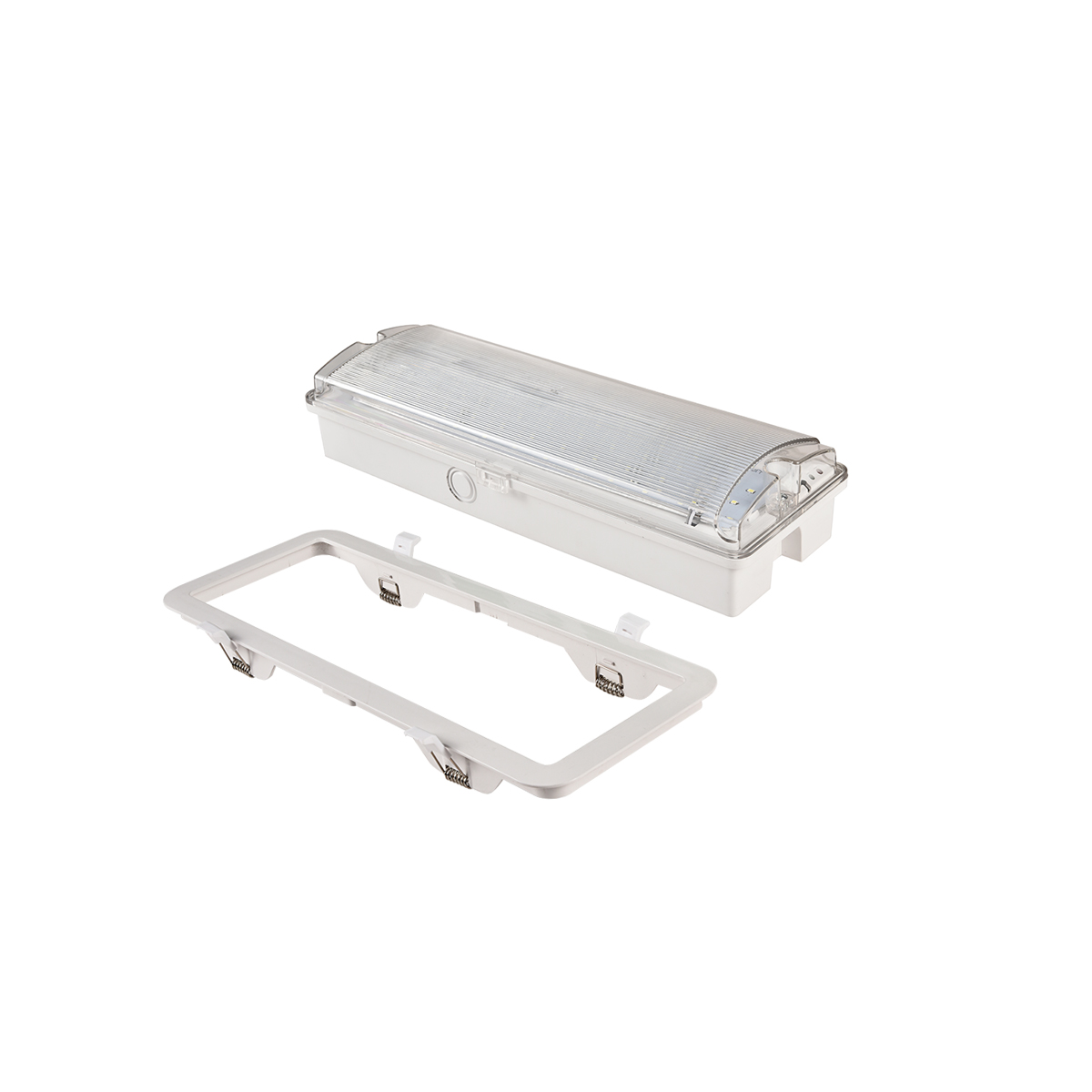

- Versatile Installation: Comes ready for Surface Mountingor Recessed Mounting using the included recessed frame, allowing for a flush, professional finish in any ceiling type.
- Long-Term Assurance: Backed by a 4-year warrantyand fully certified with CE and RoHS for peace of mind in professional engineering projects.
Technical Specifications:
| Model | HM-BHD01 |
| LED Power | 8W Main,3W Emergency |
| Input Voltage | AC85-265V,50/60Hz |
| Color Temperature | 6500K |
| Battery Type | LiFePO4 6.4V 1800mAh |
| Emergency Runtime: | ≥ 180 Minutes (3 Hours) |
| Lumen | 300lm |
| Installation | Surface Mounting or Recessed Mounting |
| Dimenstions | 355*110*210mm |
| Working Mode | Maintained |
| Charging Time | 24hours |
| Material | PC |
| Control | Manual test |
| IP Rating | IP65 |
| Warranty | 4years |
| Stanard | EN60598-2-22 |
HM-BDH IP65 Emergency Bulkhead RFQ:
1.Q: Why is the LiFePO4 battery choice important for this emergency bulkhead?
A: The 6.4V 1800mAh LiFePO4 battery is a critical safety upgrade over standard batteries. It provides higher energy density and improved safety in high-temperature environments, which is essential for ensuring the light remains functional for the full 3-hour emergency duration over its 4-year warranty period.
2.Q: Can this light be installed in wet or dusty outdoor environments?
A: Absolutely. With its IP65 rating and durable PC housing, this bulkhead is specifically designed to resist water ingress and dust buildup. It is ideal for exterior walkways, loading docks, and industrial sites where environmental protection is a top priority.
3.Q: Does the unit support recessed installation for a cleaner look?
A: Yes. This bulkhead is highly versatile and supports both surface and recessed mounting. It comes with a recessed frame accessory, making it easy for installers to achieve a flush-mounted appearance in modern office or commercial interiors.
