Description
EXIT-LED-ES06 The Ultimate Professional Emergency Exit Solution
The EXIT-LED-ES06 represents the pinnacle of emergency guidance technology. By integrating high-performance SMD 2835 LEDs with an advanced Acrylic light guide panel, it provides crystal-clear visibility and uniform brightness. Unlike standard signs, the ES06 utilizes LiFePO4 battery technology, offering superior thermal stability and a significantly longer service life, backed by a comprehensive 4-year warranty.

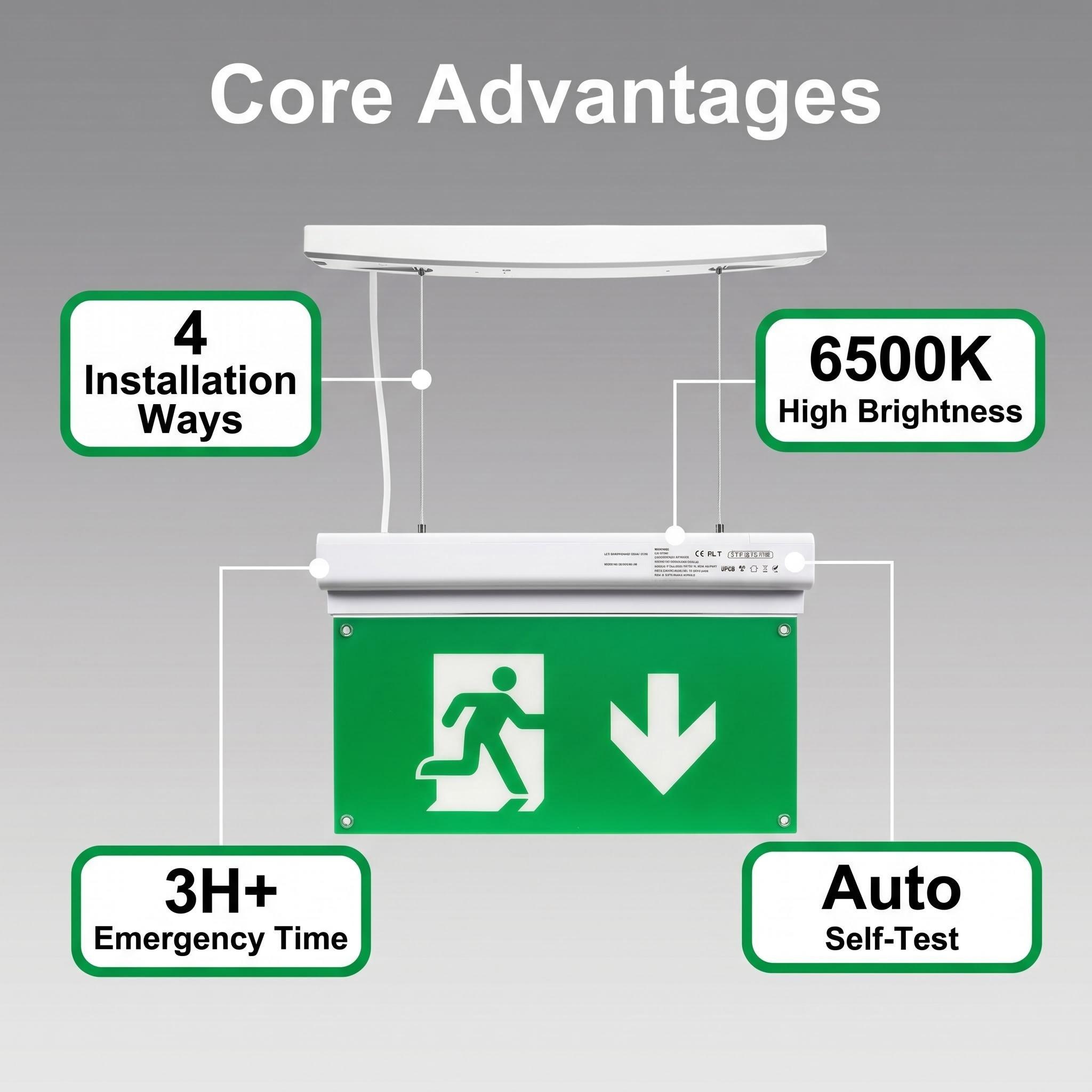

Key Features:

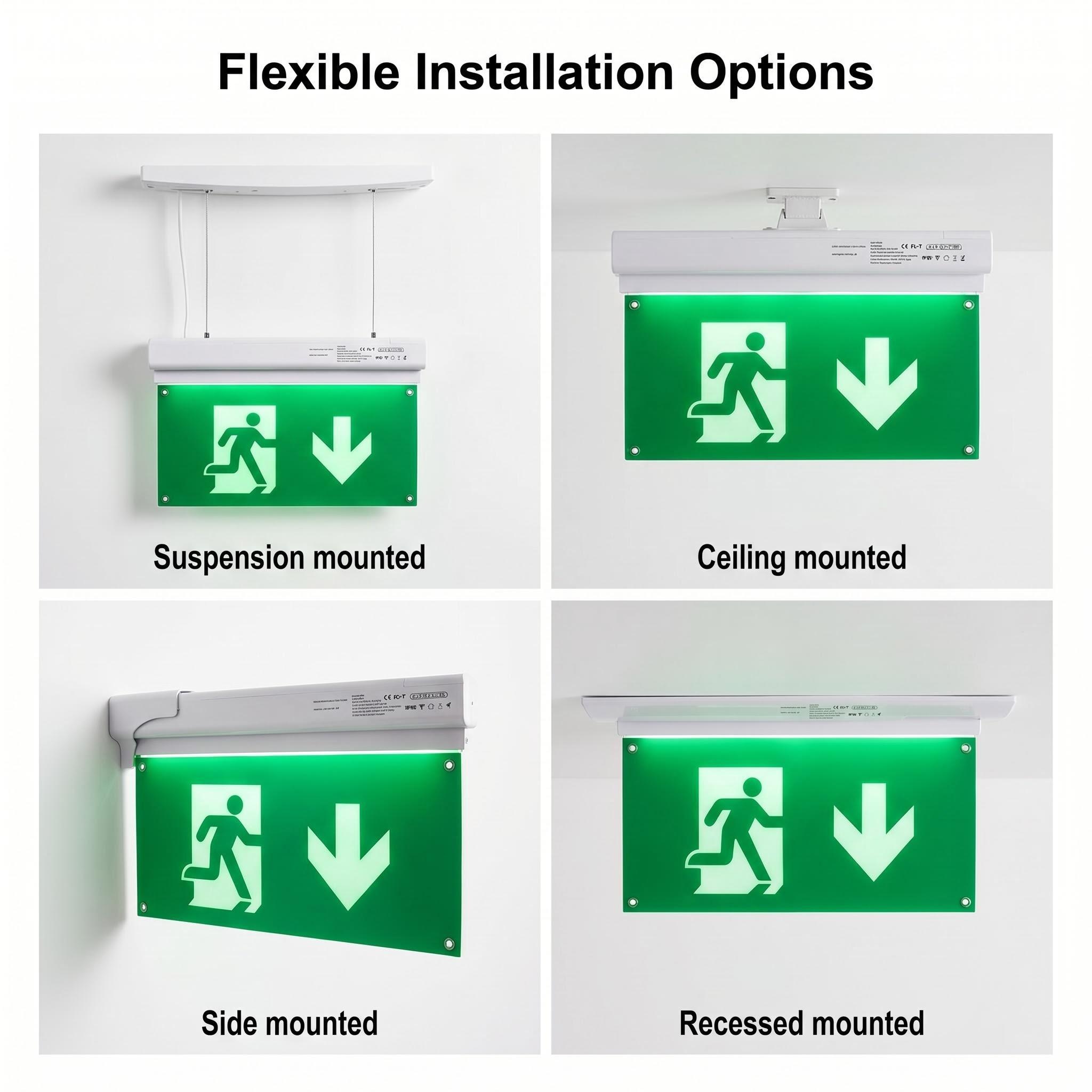

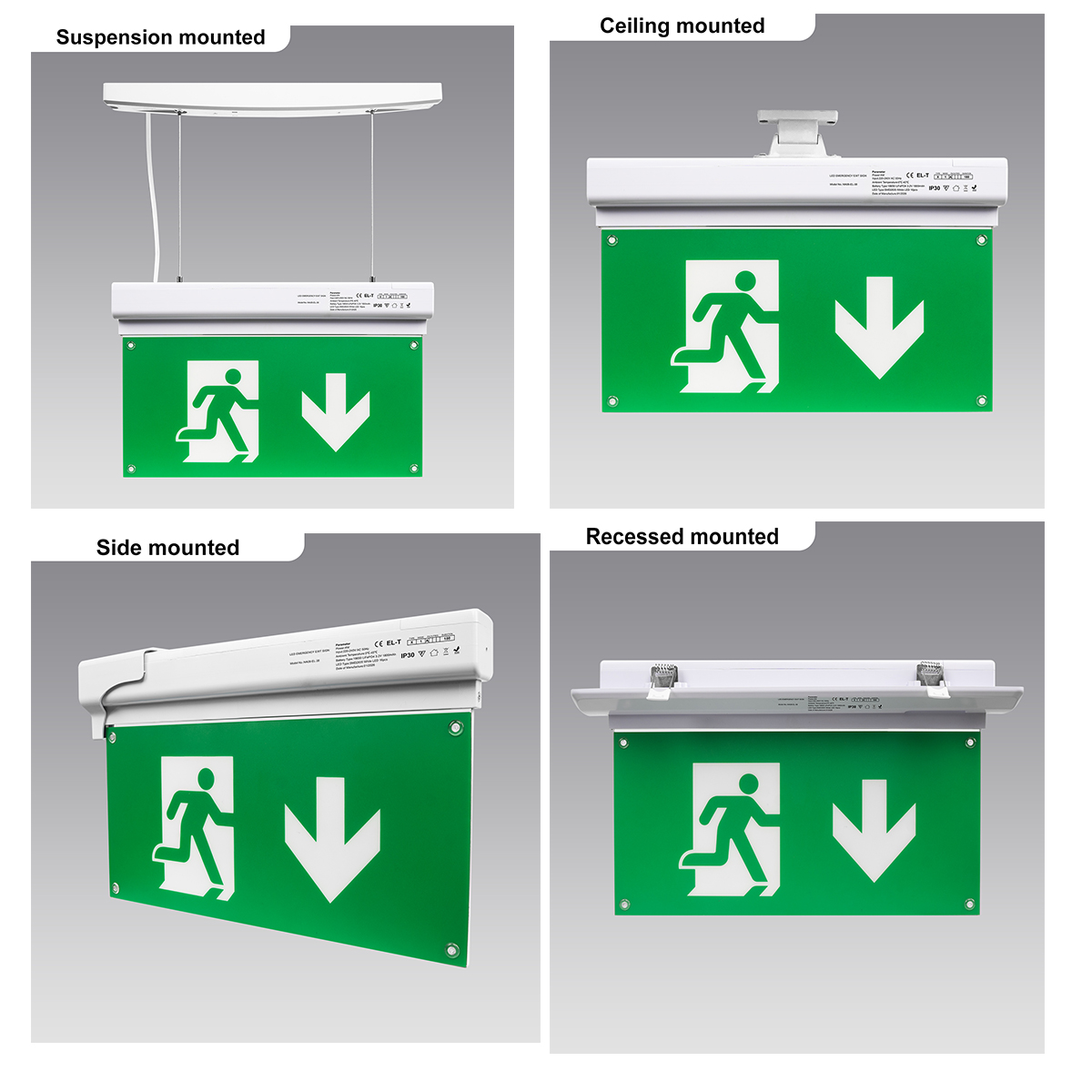

- Ultimate Mounting Flexibility (4-Way):One fixture for all scenarios. Supports Suspension, Wall Mounted, Ceiling Mounted, and Side Mounted installations, as well as Recessed mounting
- Advanced LiFePO4 Battery:Equipped with a 3.2V 1800mAh LiFePO4 pack, which is safer than standard lithium-ion and maintains capacity over thousands of cycles.
- Smart Self-Test Function:Features both manual and automatic self-test capabilities, ensuring the device performs routine diagnostic checks without manual intervention.
- Interchangeable Legend System:Utilizes high-quality PET film for legends which can be easily changed to meet specific directional requirements (Left, Right, Down, etc.).
- High-Output 16-LED Array:16pcs of SMD 2835 6500K LEDs provide bright, high-contrast illumination for maximum clarity.
- Extended Warranty:A 4-year warranty reflects the industrial-grade build quality and component reliability.
Technical Specifications:
| Model | EXIT-LED-ES06 |
| LED Power | 4W Emergency |
| Input Voltage | AC85-265V,50/60Hz |
| Color Temperature | 6500K |
| Battery Type | LiFePO4 3.2V 1800mAh |
| Emergency Runtime: | ≥ 180 Minutes (3 Hours) |

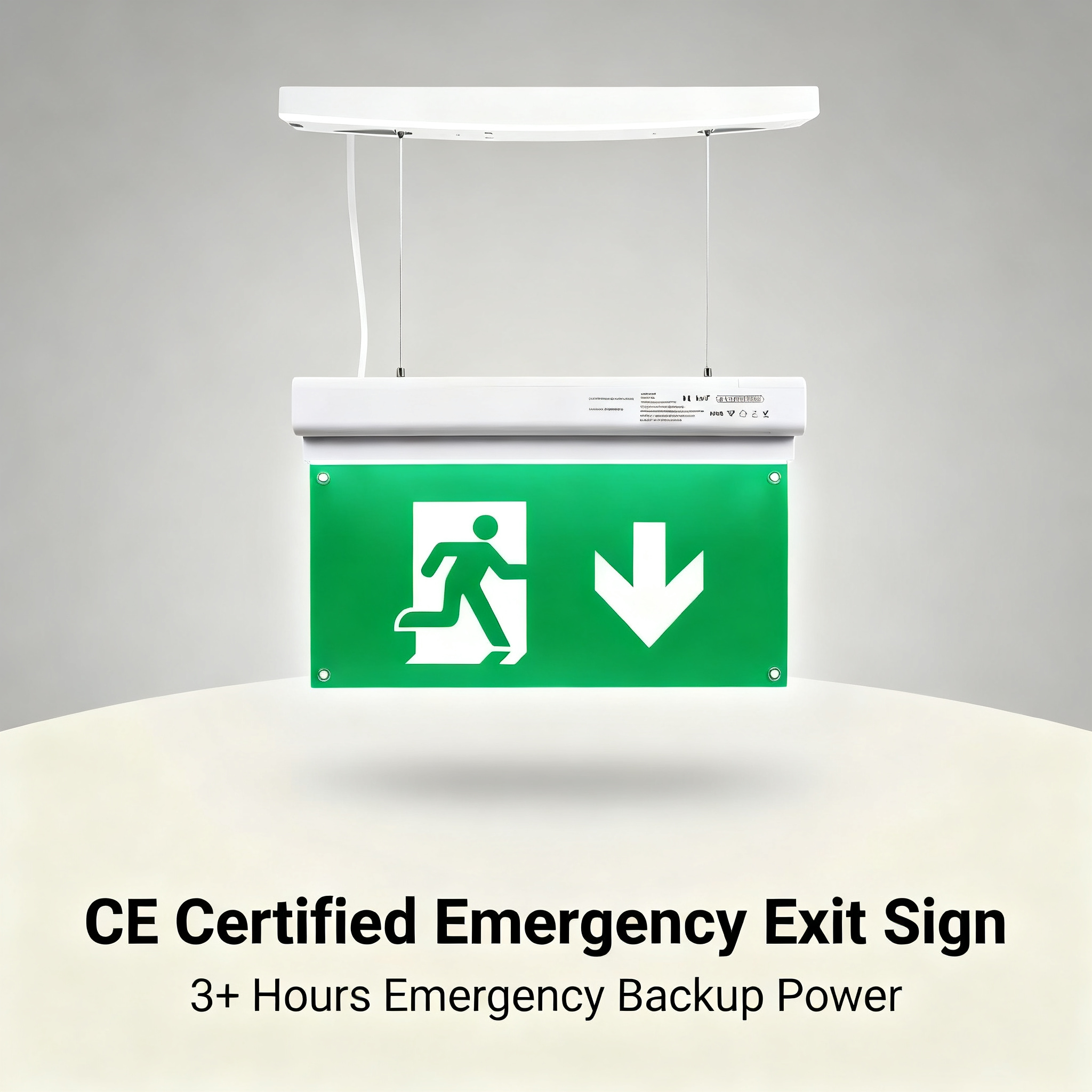

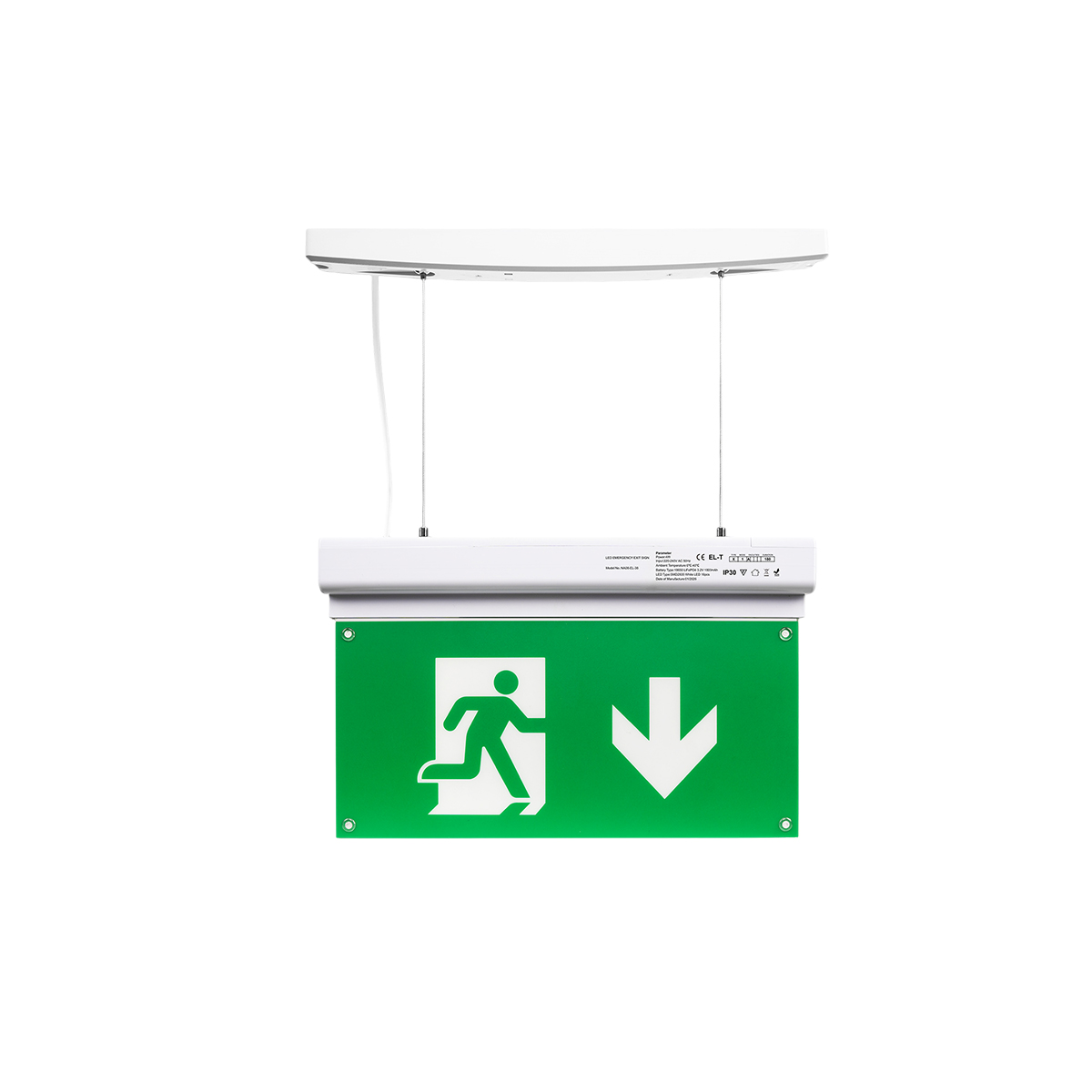

| Installation | Suspension, wall, ceiling, and side mounting |
| Dimenstions | 240*200*25mm |
| Working Mode | Maintained |
| Charging Time | 24hours |
| Warranty | 4Years |
| Control | Manual test/self test |
| IP Rating | IP20 |
| Stanard | EN60598-2-22 |
EXIT-LED-ES06 Universal Exit Sign RFQ:
1.Q: Why is the LiFePO4 battery in the EXIT-LED-ES06 better for safety managers?
A: The 3.2V 1800mAh LiFePO4 battery in the EXIT-LED-ES06 offers much higher safety than standard batteries because it is non-combustible and chemically stable. For safety managers, this means a significantly longer replacement cycle and reduced fire risk within the device itself, providing a lower total cost of ownership over its 4-year warranty period.
2.Q: How does the “Self-Test” function work in this model?
A: The EXIT-LED-ES06 includes an intelligent self-test feature. It automatically performs periodic checks on the battery, LEDs, and circuitry, signaling any faults via LED indicators. This drastically reduces the labor cost of manual monthly inspections required by fire safety regulations.
3.Q: Can this one model really be installed in four different ways?

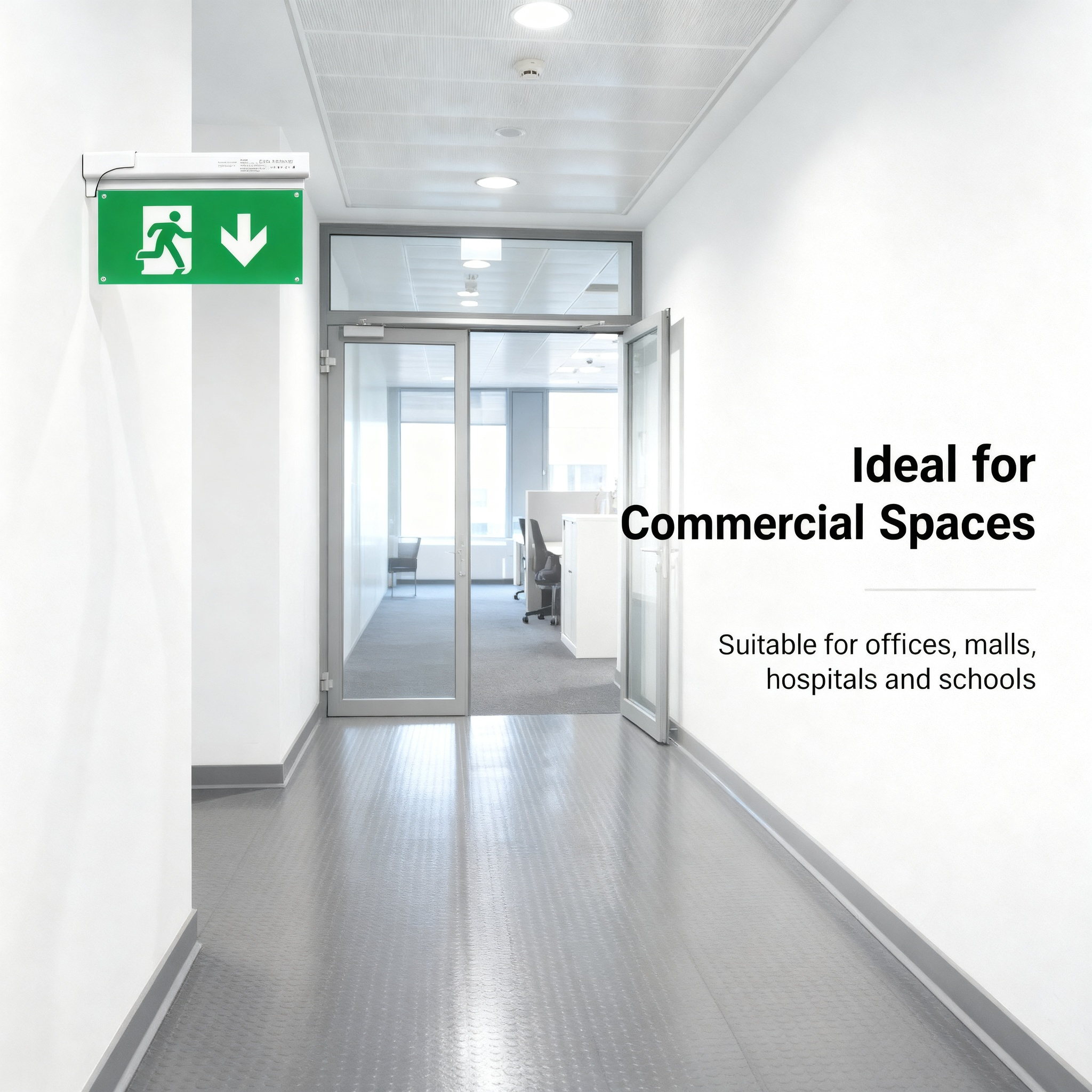

A: Yes, the innovative bracket and housing design of the EXIT-LED-ES06 support suspension, wall, ceiling, and side mounting. This versatility is a major benefit for large-scale construction projects where different architectural zones require different mounting styles, allowing contractors to use a single SKU for the entire project.
